This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, 500mA earth leakage sensitivity and A-SI type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IÎm) rated breaking and making short circuit capacity is 1500A. The (Inc/IÎc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iID |
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | iID |
| Poles description | 4P |
| Neutral position | Left |
| [In] rated current | 40 A |
| Network type | AC |
| Earth-leakage sensitivity | 500 mA |
| Earth-leakage protection time delay | Selective |
| Earth-leakage protection class | Type A-SI (Super Immunised) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Device location in system | Outgoer |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| Rated breaking and making capacity | Idm 1500 A Im 1500 A |
| Rated conditional short-circuit current | 10 kA |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Contact position indicator | Yes |
| control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 91 mm |
| Width | 72 mm |
| Depth | 73.5 mm |
| Product weight | 0.37 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | AC-1: 15000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Single terminal top or bottom 1â¦35 mm² rigid Single terminal top or bottom 1â¦25 mm² flexible Single terminal top or bottom 1â¦25 mm² flexible with ferrule |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
switch disconnector iSW - 3P - 100 A - 415 V
Acti 9 iID - RCCB - 2P - 25A - 300mA - type A

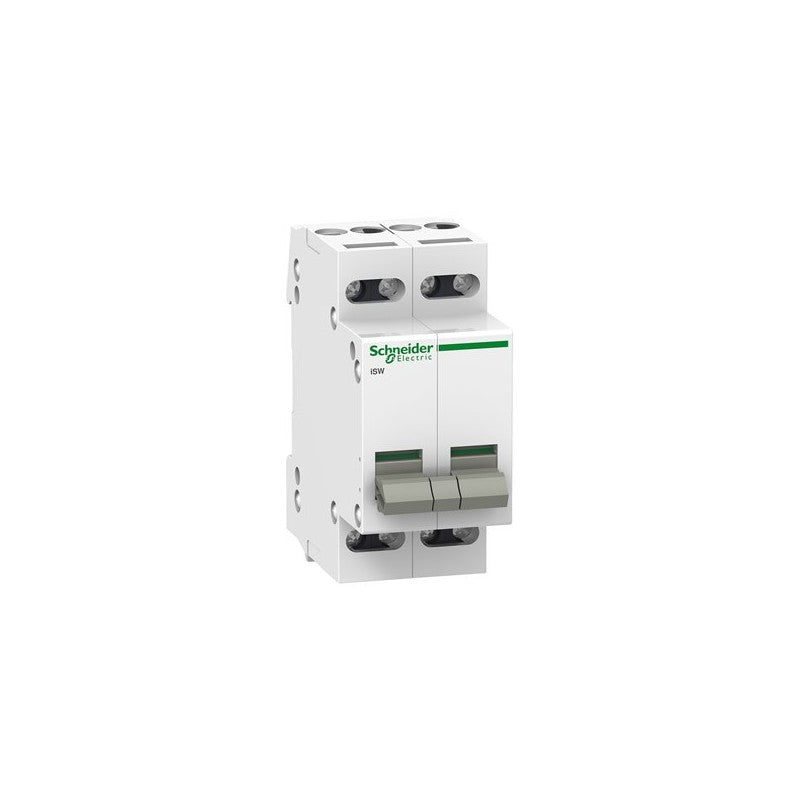

This Acti 9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Control |
| Poles description | 2P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 32 A at 415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60669-2-4 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 77 mm |
| Width | 18 mm |
| Depth | 70 mm |
| Colour | White |
| Mechanical durability | 300000 cycles |
| Electrical durability | 30000 cycles |
| Connections - terminals | Tunnel type terminals - 10 mm² - rigid Tunnel type terminals - 10 mm² - flexible Tunnel type terminals - 10 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1.2 N.m |

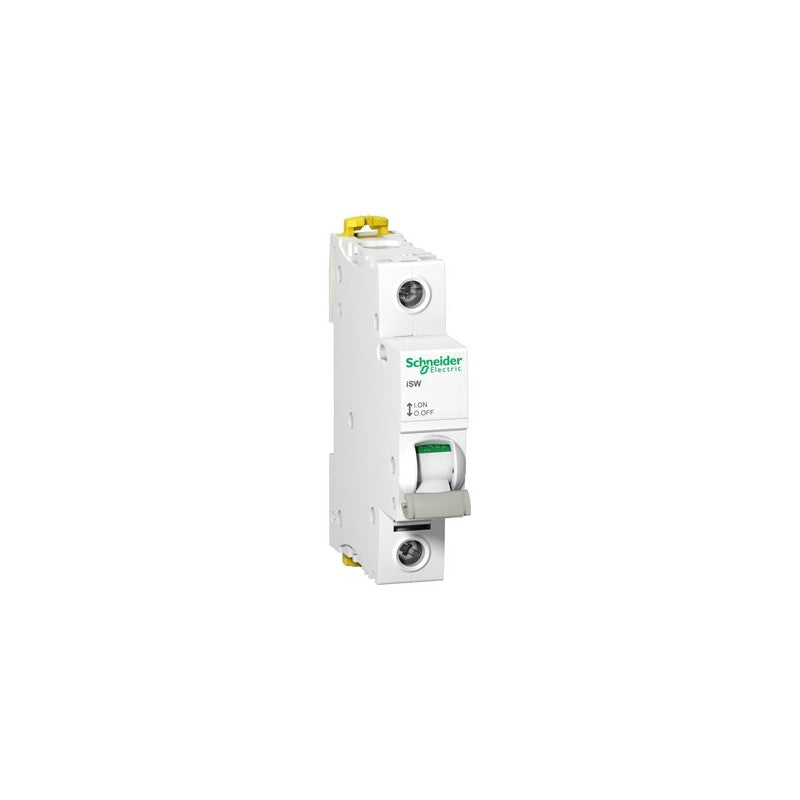

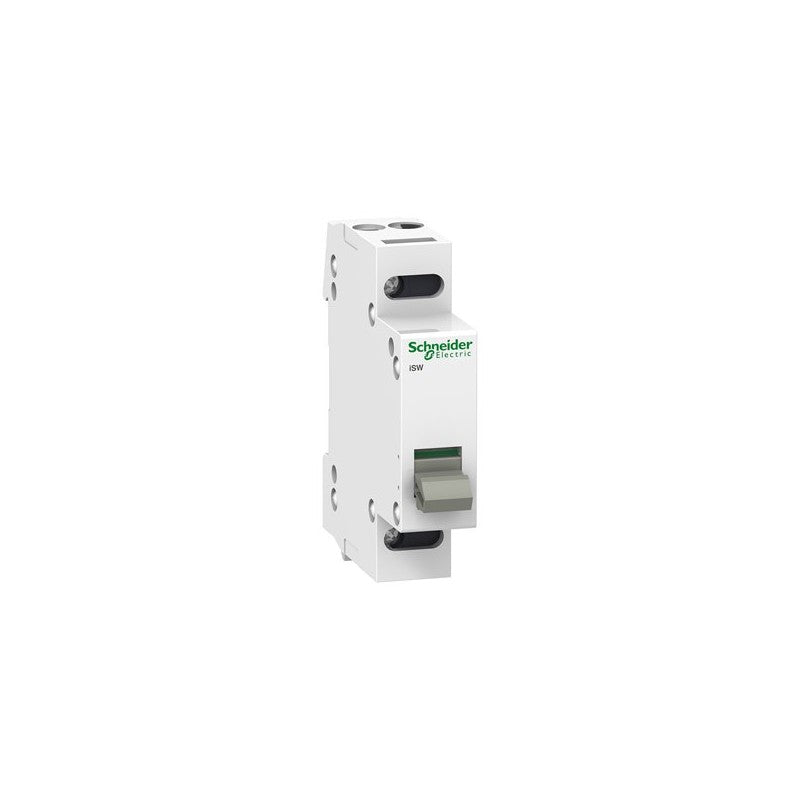

switch Acti9 iSW - 1 pole - 32 A - 250V
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |

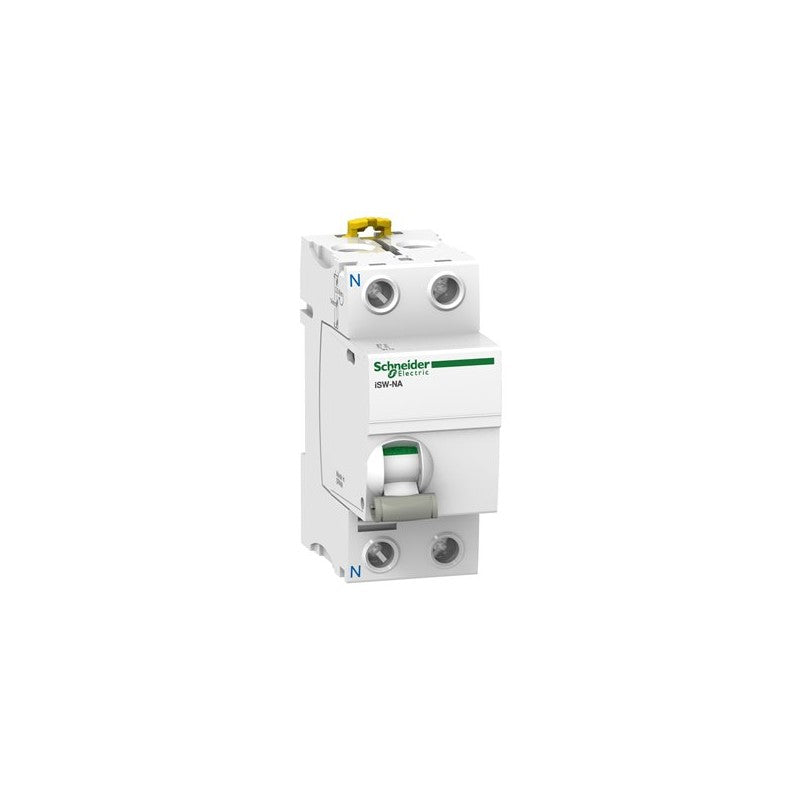

| product name | Acti9 iSW-NA |
| Product or component type | Switch disconnector |
| Device short name | iSW-NA |
| Device application | Control Isolation |
| Poles description | 1P + N |
| Neutral position | Left |
| Utilisation category | AC-22A conforming to EN/IEC 60947-3 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 63 A at 230/240 V AC 50/60 Hz |
| [Ue] rated operational voltage | 230/240 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 1.26 kA during 1 s |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-3 |
| control type | Remote tripping Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 4 |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 74 mm |
| Product weight | 0.17 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 15000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) 1 cable(s) 1â¦25 mm² flexible with cable end Tunnel type terminals (top or bottom) 1 cable(s) 1â¦25 mm² flexible without cable end Tunnel type terminals (top or bottom) 1 cable(s) 1â¦35 mm² rigid without cable end |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |
| Product compatibility | Tripping release |
This Acti9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 125A, and operating voltage is 415VAC. Electrical endurance goes up to 2500 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Isolation Control |
| Poles description | 4P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 125 A at 415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 1500 A |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 8 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 73 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 2500 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |

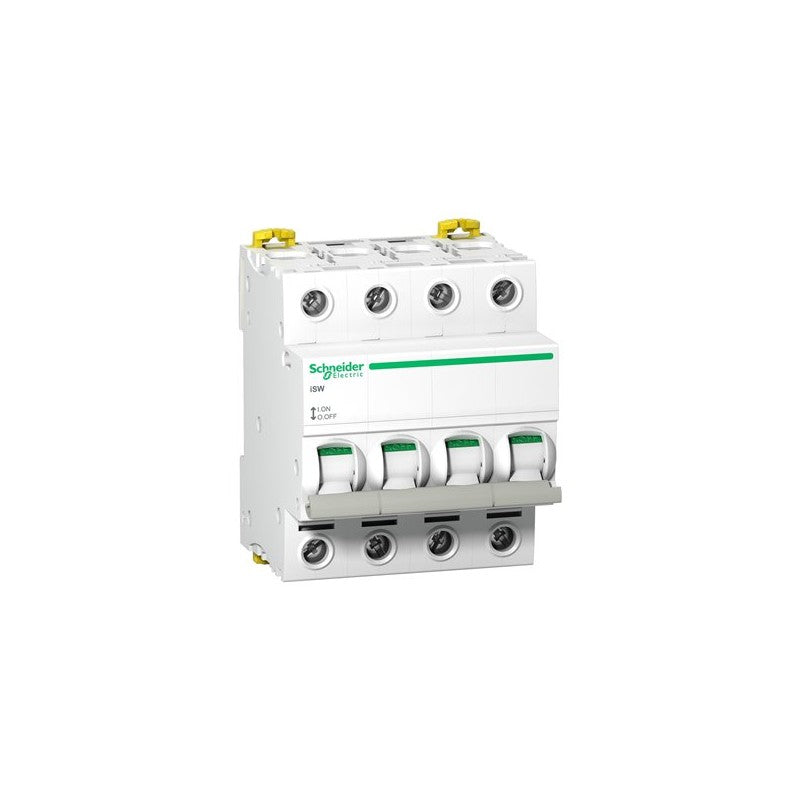

This Acti9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 40A, and operating voltage is 415VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Isolation Control |
| Poles description | 4P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 40 A at 415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 1260 A |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 8 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 73 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 15000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |

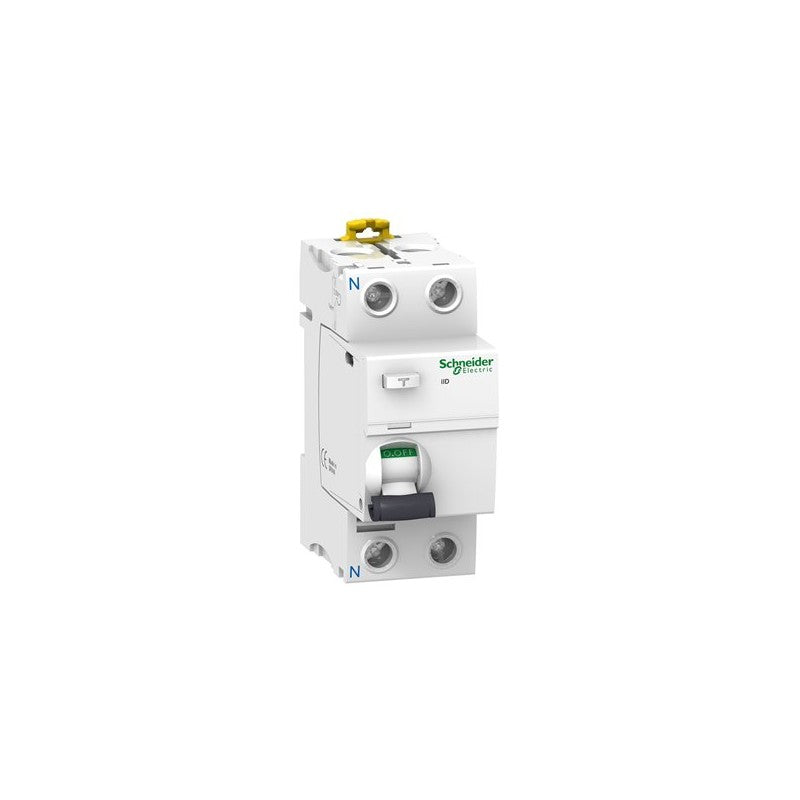

Acti 9 iID - RCCB - 2P - 25A - 30mA - type A-SI

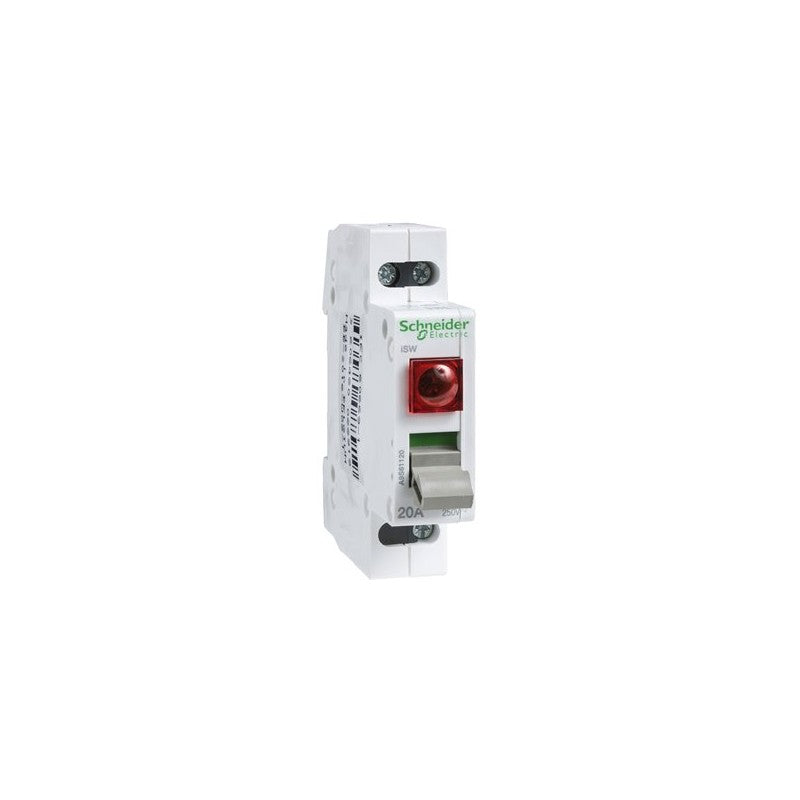

This Acti 9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 20A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with IEC EN 60669-1.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Control |
| Poles description | 2P |
| Utilisation category | AC-22A |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 20 A at 250 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 250 V AC 50/60 Hz conforming to IEC EN 60669-1 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication and lamp |
| Signalling circuit voltage | AC: 230 V 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 77 mm |
| Width | 18 mm |
| Depth | 70 mm |
| Colour | White |
| Mechanical durability | 300000 cycles |
| Electrical durability | 30000 cycles |
| Connections - terminals | Tunnel type terminals - 10 mm² - rigid Tunnel type terminals - 10 mm² - flexible Tunnel type terminals - 10 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1.2 N.m |

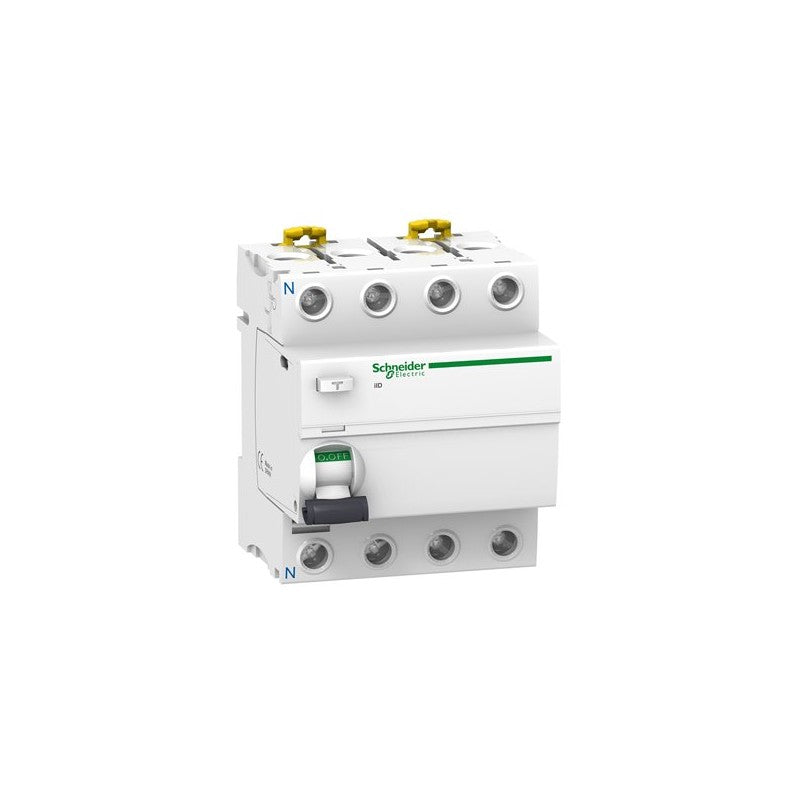

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, 300mA earth leakage sensitivity and A type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IÎm) rated breaking and making short circuit capacity is 1500A. The (Inc/IÎc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iID |
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | iID |
| Poles description | 4P |
| Neutral position | Left |
| [In] rated current | 63 A |
| Network type | AC |
| Earth-leakage sensitivity | 300 mA |
| Earth-leakage protection time delay | Selective |
| Earth-leakage protection class | Type A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Device location in system | Outgoer |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| Rated breaking and making capacity | Idm 1500 A Im 1500 A |
| Rated conditional short-circuit current | 10 kA |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Contact position indicator | Yes |
| control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 91 mm |
| Width | 72 mm |
| Depth | 73.5 mm |
| Product weight | 0.37 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | AC-1: 15000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Single terminal top or bottom 1â¦35 mm² rigid Single terminal top or bottom 1â¦25 mm² flexible Single terminal top or bottom 1â¦25 mm² flexible with ferrule |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
switch disconnector iSW - 1P - 100 A - 240 V
Acti 9 iID - RCCB - 2P - 63A - 300mA s - type A
switch disconnector iSW - 4P - 63 A - 415 V

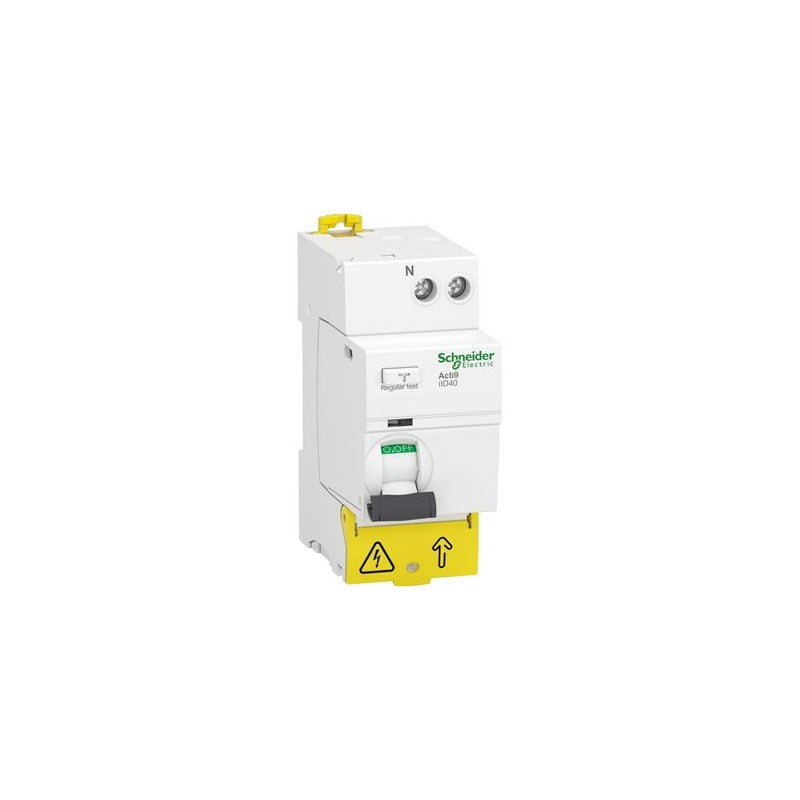

residual current circuit breaker (RCCB), Acti9 iID40, 1P+N, 40 A, 300 mA, AC type
This Acti9 iSW is a modular and reliable switch disconnector. it is a 3P, rated current is 125A, and operating voltage is 415VAC. Electrical endurance goes up to 2500 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Control Isolation |
| Poles description | 3P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 125 A at 415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 1500 A |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 6 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 73 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 2500 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |

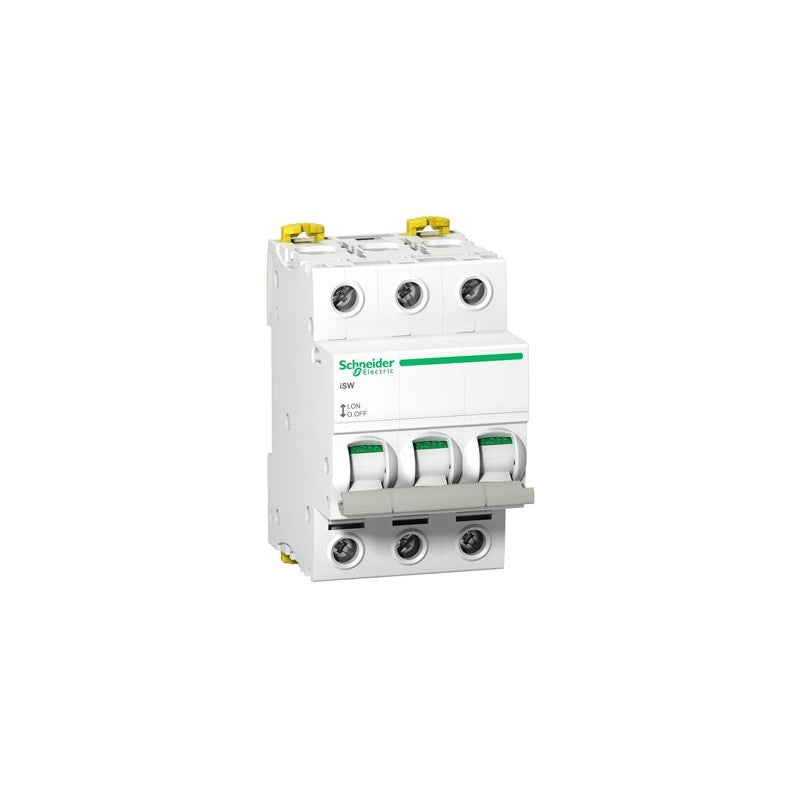

switch disconnector iSW - 3P - 40 A - 415 V
switch Acti9 iSW - 4 poles - 20 A - 415V
switch disconnector iSW - 4P - 100 A - 415 V
switch disconnector iSW - 2P - 100 A - 415 V
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 3P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Control |
| Poles description | 3P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 32 A at 415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60669-2-4 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 77 mm |
| Width | 36 mm |
| Depth | 70 mm |
| Colour | White |
| Mechanical durability | 300000 cycles |
| Electrical durability | 30000 cycles |
| Connections - terminals | Tunnel type terminals - 10 mm² - rigid Tunnel type terminals - 10 mm² - flexible Tunnel type terminals - 10 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1.2 N.m |
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| product name | Acti9 iSW-NA |
| Product or component type | Switch disconnector |
| Device short name | iSW-NA |
| Device application | Isolation Control |
| Poles description | 1P + N |
| Neutral position | Left |
| Utilisation category | AC-22A conforming to EN/IEC 60947-3 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ie] rated operational current | 80 A at 230/240 V AC 50/60 Hz |
| [Ue] rated operational voltage | 230/240 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 1.2 kA during 1 s |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-3 |
| control type | Toggle Remote tripping |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 4 |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 74 mm |
| Product weight | 0.17 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 15000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) 1 cable(s) 1â¦25 mm² flexible with cable end Tunnel type terminals (top or bottom) 1 cable(s) 1â¦25 mm² flexible without cable end Tunnel type terminals (top or bottom) 1 cable(s) 1â¦35 mm² rigid without cable end |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |
| Product compatibility | Tripping release |

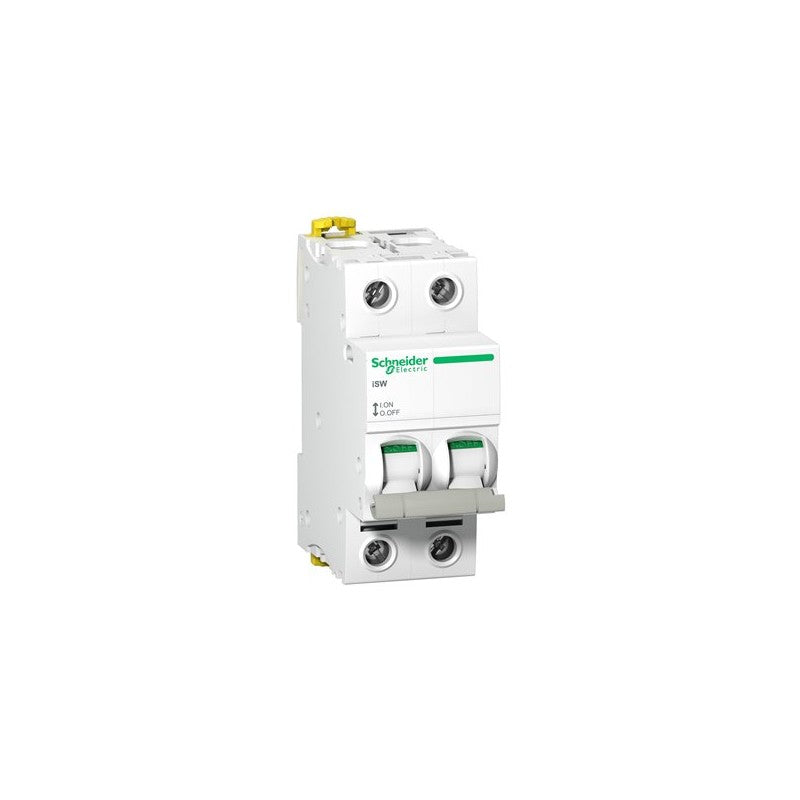

switch disconnector iSW - 2P - 40 A - 415 V
SERVO MOTOR, 1.6 HP, 5250 RPM, RARE EARTH LOW INTERTIA AC, 460VAC, FRAME = 100MM (APPROX. STATOR SIZE), IEC METRIC FLANGE W/ KEYWAY
