Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.24 kg

Technical

Number of Main Contacts NO:

2

Number of Main Contacts NC:

2

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

110 ... 120 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.24 kg

Package Level 1 EAN:

4013614524158

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12 kg

Package Level 2 EAN:

4013614538551

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Norway):

4190259

ABB 1SBL111001R2010 ABB - AS12-30-10-20

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

EPLAN Data:

EPLAN EDZ AS12

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

45 mm

Product Net Depth / Length:

72.5 mm

Product Net Height:

68 mm

Product Net Weight:

0.22 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Standards:

IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 25 A

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 25 A

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 24 A

(690 V) 60 °C 20 A

(690 V) 70 °C 16 A

(690 V) 40 °C 24 A

(690 V) 60 °C 20 A

(690 V) 70 °C 16 A

Rated Operational Current AC-3 (I_e):

(415 V) 60 °C 12 A

(440 V) 60 °C 11 A

(500 V) 60 °C 11 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 12 A

(220 / 230 / 240 V) 60 °C 12 A

(415 V) 60 °C 12 A

(440 V) 60 °C 11 A

(500 V) 60 °C 11 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 12 A

(220 / 230 / 240 V) 60 °C 12 A

Rated Operational Current AC-15 (I_e):

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

Rated Operational Power AC-3 (P_e):

(400 V) 5.5 kW

(415 V) 5.5 kW

(440 V) 5.5 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(220 / 230 / 240 V) 3 kW

(400 V) 5.5 kW

(415 V) 5.5 kW

(440 V) 5.5 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(220 / 230 / 240 V) 3 kW

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 24 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A

for 0.1 s 140 A

for 1 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 24 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A

for 0.1 s 140 A

for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

Auxiliary Circuit 6 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

50 Hz 24 V

60 Hz 24 V

50 Hz 24 V

60 Hz 24 V

Power Loss:

at Rated Operating Conditions AC-1 per Pole 1.2 W

at Rated Operating Conditions AC-3 per Pole 0.3 W

at Rated Operating Conditions AC-1 per Pole 1.2 W

at Rated Operating Conditions AC-3 per Pole 0.3 W

Operate Time:

Between Coil De-energization and NC Contact Closing 7 ... 22 ms

Between Coil De-energization and NO Contact Opening 5 ... 19 ms

Between Coil Energization and NC Contact Opening 6 ... 18 ms

Between Coil Energization and NO Contact Closing 9 ... 24 ms

Between Coil De-energization and NC Contact Closing 7 ... 22 ms

Between Coil De-energization and NO Contact Opening 5 ... 19 ms

Between Coil Energization and NC Contact Opening 6 ... 18 ms

Between Coil Energization and NO Contact Closing 9 ... 24 ms

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 9 mm

Control Circuit 9 mm

Main Circuit 9 mm

Auxiliary Circuit 9 mm

Control Circuit 9 mm

Main Circuit 9 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Control Circuit 1 N·m

Main Circuit 1 N·m

Auxiliary Circuit 1 N·m

Control Circuit 1 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

General Use Rating UL/CSA:

(600 V AC) 20 A

Horsepower Rating UL/CSA:

(120 V AC) Single Phase 1/2 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 3 hp

(240 V AC) Single Phase 1.5 hp

(440 ... 480 V AC) Three Phase 7.5 hp

(550 ... 600 V AC) Three Phase 10 hp

(120 V AC) Single Phase 1/2 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 3 hp

(240 V AC) Single Phase 1.5 hp

(440 ... 480 V AC) Three Phase 7.5 hp

(550 ... 600 V AC) Three Phase 10 hp

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Control Circuit 9 in·lb

Main Circuit 9 in·lb

Auxiliary Circuit 9 in·lb

Control Circuit 9 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(120 V AC) Single Phase 9.8 A

(200 ... 208 V AC) Three Phase 7.8 A

(220 ... 240 V AC) Three Phase 9.6 A

(240 V AC) Single Phase 10 A

(440 ... 480 V AC) Three Phase 11 A

(550 ... 600 V AC) Three Phase 11 A

(120 V AC) Single Phase 9.8 A

(200 ... 208 V AC) Three Phase 7.8 A

(220 ... 240 V AC) Three Phase 9.6 A

(240 V AC) Single Phase 10 A

(440 ... 480 V AC) Three Phase 11 A

(550 ... 600 V AC) Three Phase 11 A

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27:

Closed, Shock Direction: B1 10 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 20 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 9 g

Open, Shock Direction: C2 14 g

Shock Direction: A 20 g

Shock Direction: B2 15 g

Closed, Shock Direction: B1 10 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 20 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 9 g

Open, Shock Direction: C2 14 g

Shock Direction: A 20 g

Shock Direction: B2 15 g

Resistance to Vibrations:

3g Closed Position & 2g Open Position 5 ... 300 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB certificate for AS(L).. contactors

CCC Certificate:

CCC certificate for AS(L)09 to 16 and AS(L)09 to 16..S contactors, with screw and spring terminals

CQC Certificate:

CQC Certificate, Contactor, AS09,AS12,AS16,ASL09,ASL12,ASL16, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AS09,AS12,AS16,ASL09,ASL12,ASL16, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity AS(L)09 to AS(L)16 3 pole contactors

Declaration of Conformity - UKCA:

UK Declaration of conformity for AS/ASL contactors

GOST Certificate:

GOST_POCCCNME77B07822.pdf

UL Certificate:

UL Certificate of Compliance – AS(L) contactor with screw and spring terminals

UL Listing Card:

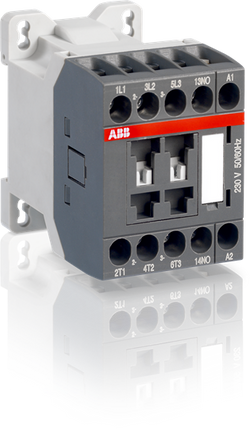

ABB 1SBL121001R2001 ABB - AS16-30-01-20

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

78 mm

Package Level 1 Depth / Length:

80 mm

Package Level 1 Height:

48 mm

Package Level 1 Gross Weight:

0.22 kg

Package Level 1 EAN:

3471523034204

Package Level 3 Units:

960 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4761 >> Magnet contactor, AC-switching

E-Number (Sweden):

3210510

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

EPLAN Data:

EPLAN EDZ AS16

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

45 mm

Product Net Depth / Length:

72.5 mm

Product Net Height:

68 mm

Product Net Weight:

0.22 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

1

Standards:

IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 25 A

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 25 A

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 24 A

(690 V) 60 °C 20 A

(690 V) 70 °C 16 A

(690 V) 40 °C 24 A

(690 V) 60 °C 20 A

(690 V) 70 °C 16 A

Rated Operational Current AC-3 (I_e):

(415 V) 60 °C 15.5 A

(440 V) 60 °C 13.6 A

(500 V) 60 °C 12.5 A

(690 V) 60 °C 9 A

(380 / 400 V) 60 °C 15.5 A

(220 / 230 / 240 V) 60 °C 15.7 A

(415 V) 60 °C 15.5 A

(440 V) 60 °C 13.6 A

(500 V) 60 °C 12.5 A

(690 V) 60 °C 9 A

(380 / 400 V) 60 °C 15.5 A

(220 / 230 / 240 V) 60 °C 15.7 A

Rated Operational Current AC-15 (I_e):

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

Rated Operational Power AC-3 (P_e):

(400 V) 7.5 kW

(415 V) 7.5 kW

(440 V) 7.5 kW

(500 V) 7.5 kW

(690 V) 7.5 kW

(220 / 230 / 240 V) 4 kW

(400 V) 7.5 kW

(415 V) 7.5 kW

(440 V) 7.5 kW

(500 V) 7.5 kW

(690 V) 7.5 kW

(220 / 230 / 240 V) 4 kW

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 24 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A

for 0.1 s 140 A

for 1 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 24 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A

for 0.1 s 140 A

for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

Auxiliary Circuit 6 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

50 Hz 24 V

60 Hz 24 V

50 Hz 24 V

60 Hz 24 V

Power Loss:

at Rated Operating Conditions AC-1 per Pole 1.2 W

at Rated Operating Conditions AC-3 per Pole 0.5 W

at Rated Operating Conditions AC-1 per Pole 1.2 W

at Rated Operating Conditions AC-3 per Pole 0.5 W

Operate Time:

Between Coil De-energization and NC Contact Closing 7 ... 22 ms

Between Coil De-energization and NO Contact Opening 5 ... 19 ms

Between Coil Energization and NC Contact Opening 6 ... 18 ms

Between Coil Energization and NO Contact Closing 9 ... 24 ms

Between Coil De-energization and NC Contact Closing 7 ... 22 ms

Between Coil De-energization and NO Contact Opening 5 ... 19 ms

Between Coil Energization and NC Contact Opening 6 ... 18 ms

Between Coil Energization and NO Contact Closing 9 ... 24 ms

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 9 mm

Control Circuit 9 mm

Main Circuit 9 mm

Auxiliary Circuit 9 mm

Control Circuit 9 mm

Main Circuit 9 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Control Circuit 1 N·m

Main Circuit 1 N·m

Auxiliary Circuit 1 N·m

Control Circuit 1 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

General Use Rating UL/CSA:

(600 V AC) 20 A

Horsepower Rating UL/CSA:

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 3 hp

(220 ... 240 V AC) Three Phase 5 hp

(240 V AC) Single Phase 2 hp

(440 ... 480 V AC) Three Phase 10 hp

(550 ... 600 V AC) Three Phase 10 hp

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 3 hp

(220 ... 240 V AC) Three Phase 5 hp

(240 V AC) Single Phase 2 hp

(440 ... 480 V AC) Three Phase 10 hp

(550 ... 600 V AC) Three Phase 10 hp

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Control Circuit 9 in·lb

Main Circuit 9 in·lb

Auxiliary Circuit 9 in·lb

Control Circuit 9 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 11 A

(220 ... 240 V AC) Three Phase 15.2 A

(240 V AC) Single Phase 12 A

(440 ... 480 V AC) Three Phase 14 A

(550 ... 600 V AC) Three Phase 11 A

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 11 A

(220 ... 240 V AC) Three Phase 15.2 A

(240 V AC) Single Phase 12 A

(440 ... 480 V AC) Three Phase 14 A

(550 ... 600 V AC) Three Phase 11 A

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27:

Closed, Shock Direction: B1 10 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 20 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 9 g

Open, Shock Direction: C2 14 g

Shock Direction: A 20 g

Shock Direction: B2 15 g

Closed, Shock Direction: B1 10 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 20 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 9 g

Open, Shock Direction: C2 14 g

Shock Direction: A 20 g

Shock Direction: B2 15 g

Resistance to Vibrations:

3g Closed Position & 2g Open Position 5 ... 300 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB certificate for AS(L).. contactors

CCC Certificate:

CCC certificate for AS(L)09 to 16 and AS(L)09 to 16..S contactors, with screw and spring terminals

CQC Certificate:

CQC Certificate, Contactor, AS09,AS12,AS16,ASL09,ASL12,ASL16, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AS09,AS12,AS16,ASL09,ASL12,ASL16, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity AS(L)09 to AS(L)16 3 pole contactors

Declaration of Conformity - UKCA:

UK Declaration of conformity for AS/ASL contactors

GOST Certificate:

GOST_POCCCNME77B07822.pdf

UL Certificate:

UL Certificate of Compliance – AS(L) contactor with screw and spring terminals

UL Listing Card:

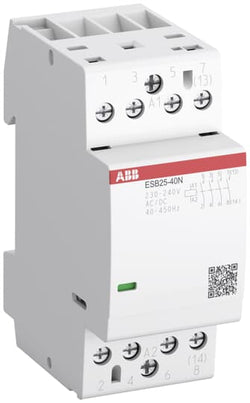

ABB 1SAE231111R1422 ABB - ESB25-22N-14

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

78 mm

Package Level 1 Depth / Length:

80 mm

Package Level 1 Height:

48 mm

Package Level 1 Gross Weight:

0.22 kg

Package Level 1 EAN:

3471523037205

Package Level 3 Units:

960 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4761 >> Magnet contactor, AC-switching

E-Number (Sweden):

3210515

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

EPLAN EDZ ESB25..N

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

2

Number of Main Contacts NC:

2

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

12 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614524363

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538766

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Norway):

4190262

ABB 1SAE231111R1431 ABB - ESB25-31N-14

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

EPLAN EDZ ESB25..N

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

12 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614524394

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538780

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Norway):

4190270

ABB 1SAE232111R0630 ABB - EN25-30N-06

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

EPLAN EDZ EN25..N

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.235 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

3P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Electrical Durability:

AC-1 (NO) 130000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

230 ... 240 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 2.5 mm²

Flexible 2x 1 ... 1.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 2.5 mm²

Flexible 2x 1 ... 1.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

EAC Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

RMRS Certificate:

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.235 kg

Package Level 1 EAN:

4013614524530

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

11.8 kg

Package Level 2 EAN:

4013614538926

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707809

E-Number (Norway):

4190245

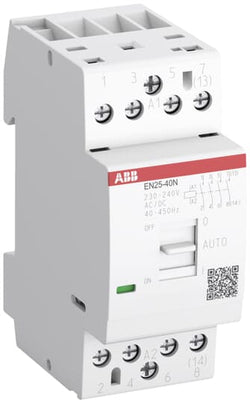

ABB 1SAE232111R0631 ABB - EN25-31N-06

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

EPLAN EDZ EN25..N

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.24 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

230 ... 240 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 2.5 mm²

Flexible 2x 1 ... 1.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 2.5 mm²

Flexible 2x 1 ... 1.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

EAC Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

RMRS Certificate:

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.24 kg

Package Level 1 EAN:

4013614524547

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12 kg

Package Level 2 EAN:

4013614538933

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707808

ABB 1SAE341111R0122 ABB - ESB40-22N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

2

Number of Main Contacts NC:

2

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 30 A

(NO) 40 A

(NC) 30 A

(NO) 40 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 22 A

Rated Operational Current AC-7a (I_e):

(NO) 40 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 22 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 3.7 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 3.7 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 176 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 70000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

AC-1 (NC) 70000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 3 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 3 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(220 ... 240 V AC) Single Phase, NC 3 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 22 A

(220 ... 240 V AC) Single Phase, NO  22 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NC 22 A

(220 ... 240 V AC) Single Phase, NO  22 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614524608

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.96 kg

Package Level 2 EAN:

4013614538995

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707582

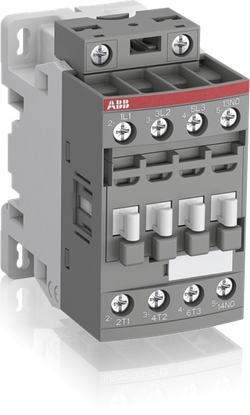

ABB 1SBL136001R2110 ABB - AF09Z-30-10-21

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

EPLAN Data:

EPLAN EDZ AF09

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Installation instructions AF(C)09...38(Z)(B) Contactors, NF(C)(Z)(B)22...80E Contactor relays and CA4, CAL4, CAT4, CC4, LDC4 Accessories

Instructions and Manuals (Part 2):

Contactors and Overload relays guide

CAD Dimensional Drawing:

Dimensions

Product Net Width:

45 mm

Product Net Depth / Length:

77 mm

Product Net Height:

86 mm

Product Net Weight:

0.31 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Number of Poles:

3P

Standards:

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 25 A

(690 V) 60 °C 25 A

(690 V) 70 °C 22 A

(690 V) 40 °C 25 A

(690 V) 60 °C 25 A

(690 V) 70 °C 22 A

Rated Operational Current AC-3 (I_e):

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

Rated Operational Current AC-3e (I_e):

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

Rated Operational Current AC-15 (I_e):

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-1 (I_e):

(110 V) 1-Pole, 40 °C 10 A

(110 V) 1-Pole, 60 °C 10 A

(110 V) 1-Pole, 70 °C 10 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 10 A

(220 V) 2 Poles in Series, 60 °C 10 A

(220 V) 2 Poles in Series, 70 °C 10 A

(220 V) 3 Poles in Series, 40 °C 25 A

(220 V) 3 Poles in Series, 60 °C 25 A

(220 V) 3 Poles in Series, 70 °C 22 A

(72 V) 1-Pole, 40 °C 25 A

(72 V) 1-Pole, 60 °C 25 A

(72 V) 1-Pole, 70 °C 22 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 10 A

(110 V) 1-Pole, 60 °C 10 A

(110 V) 1-Pole, 70 °C 10 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 10 A

Rated Operational Current DC-3 (I_e):

(110 V) 1-Pole, 40 °C 6 A

(110 V) 1-Pole, 60 °C 6 A

(110 V) 1-Pole, 70 °C 6 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 6 A

(220 V) 2 Poles in Series, 60 °C 6 A

(220 V) 2 Poles in Series, 70 °C 6 A

(220 V) 3 Poles in Series, 40 °C 25 A

(220 V) 3 Poles in Series, 60 °C 25 A

(220 V) 3 Poles in Series, 70 °C 22 A

(72 V) 1-Pole, 40 °C 25 A

(72 V) 1-Pole, 60 °C 25 A

(72 V) 1-Pole, 70 °C 22 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 6 A

(110 V) 1-Pole, 60 °C 6 A

(110 V) 1-Pole, 70 °C 6 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 6 A

Rated Operational Current DC-5 (I_e):

(110 V) 1-Pole, 40 °C 4 A

(110 V) 1-Pole, 60 °C 4 A

(110 V) 1-Pole, 70 °C 4 A

(110 V) 2 Poles in Series, 40 °C 10 A

(110 V) 2 Poles in Series, 60 °C 10 A

(110 V) 2 Poles in Series, 70 °C 10 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 4 A

(220 V) 2 Poles in Series, 60 °C 4 A

(220 V) 2 Poles in Series, 70 °C 4 A

(220 V) 3 Poles in Series, 40 °C 9 A

(220 V) 3 Poles in Series, 60 °C 9 A

(220 V) 3 Poles in Series, 70 °C 9 A

(72 V) 1-Pole, 40 °C 9 A

(72 V) 1-Pole, 60 °C 9 A

(72 V) 1-Pole, 70 °C 9 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 4 A

(110 V) 1-Pole, 60 °C 4 A

(110 V) 1-Pole, 70 °C 4 A

(110 V) 2 Poles in Series, 40 °C 10 A

(110 V) 2 Poles in Series, 60 °C 10 A

(110 V) 2 Poles in Series, 70 °C 10 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 4 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(400 V) 0.15 A / 60 W

(500 V) 0.13 A / 65 W

(600 V) 0.1 A / 60 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(400 V) 0.15 A / 60 W

(500 V) 0.13 A / 65 W

(600 V) 0.1 A / 60 W

Rated Operational Power AC-3 (P_e):

(400 V) 4 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

(400 V) 4 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

Rated Operational Power AC-3e (P_e):

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A

for 0.1 s 140 A

for 1 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A

for 0.1 s 140 A

for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 690 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 690 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

50 Hz 24 ... 60 V

60 Hz 24 ... 60 V

DC Operation 20 ... 60 V

50 Hz 24 ... 60 V

60 Hz 24 ... 60 V

DC Operation 20 ... 60 V

Power Loss:

at 6 A per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

at 6 A per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

Operate Time:

Between Coil De-energization and NC Contact Closing 13 ... 98 ms

Between Coil De-energization and NO Contact Opening 11 ... 95 ms

Between Coil Energization and NC Contact Opening 38 ... 90 ms

Between Coil Energization and NO Contact Closing 40 ... 95 ms

Between Coil De-energization and NC Contact Closing 13 ... 98 ms

Between Coil De-energization and NO Contact Opening 11 ... 95 ms

Between Coil Energization and NC Contact Opening 38 ... 90 ms

Between Coil Energization and NO Contact Closing 40 ... 95 ms

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied) :

2 x M4 Screws Placed Diagonally

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 6 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 4 mm²

Rigid Stranded 1/2x 1 ... 6 mm²

Flexible with Ferrule 1/2x 0.75 ... 6 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 4 mm²

Rigid Stranded 1/2x 1 ... 6 mm²

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 10 mm

Control Circuit 10 mm

Main Circuit 10 mm

Auxiliary Circuit 10 mm

Control Circuit 10 mm

Main Circuit 10 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Tightening Torque:

Auxiliary Circuit 1.2 N·m

Control Circuit 1.2 N·m

Main Circuit 1.5 N·m

Auxiliary Circuit 1.2 N·m

Control Circuit 1.2 N·m

Main Circuit 1.5 N·m

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

NEMA Size:

00

Continuous Current Rating NEMA:

9 A

Horsepower Rating NEMA:

(115 V AC) Single Phase 1/3 Hp

(200 V AC) Three Phase 1-1/2 Hp

(230 V AC) Single Phase 1 Hp

(230 V AC) Three Phase 1-1/2 Hp

(460 V AC) Three Phase 2 Hp

(575 V AC) Three Phase 2 Hp

(115 V AC) Single Phase 1/3 Hp

(200 V AC) Three Phase 1-1/2 Hp

(230 V AC) Single Phase 1 Hp

(230 V AC) Three Phase 1-1/2 Hp

(460 V AC) Three Phase 2 Hp

(575 V AC) Three Phase 2 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

General Use Rating UL/CSA:

(600 V AC) 25 A

Horsepower Rating UL/CSA:

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 2 hp

(240 V AC) Single Phase 1-1/2 hp

(440 ... 480 V AC) Three Phase 5 hp

(550 ... 600 V AC) Three Phase 7-1/2 hp

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 2 hp

(240 V AC) Single Phase 1-1/2 hp

(440 ... 480 V AC) Three Phase 5 hp

(550 ... 600 V AC) Three Phase 7-1/2 hp

Connecting Capacity Main Circuit UL/CSA:

Rigid Solid 1/2x 16-10 AWG

Rigid Stranded 1/2x 16-10 AWG

Rigid Solid 1/2x 16-10 AWG

Rigid Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA:

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Connecting Capacity Control Circuit UL/CSA:

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA:

Auxiliary Circuit 11 in·lb

Control Circuit 11 in·lb

Main Circuit 13 in·lb

Auxiliary Circuit 11 in·lb

Control Circuit 11 in·lb

Main Circuit 13 in·lb

Full Load Amps Motor Use:

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 7.8 A

(220 ... 240 V AC) Three Phase 6.8 A

(240 V AC) Single Phase 10 A

(440 ... 480 V AC) Three Phase 7.6 A

(550 ... 600 V AC) Three Phase 9 A

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 7.8 A

(220 ... 240 V AC) Three Phase 6.8 A

(240 V AC) Single Phase 10 A

(440 ... 480 V AC) Three Phase 7.6 A

(550 ... 600 V AC) Three Phase 9 A

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27:

Closed, Shock Direction: B1 25 g

Open, Shock Direction: B1 5 g

Shock Direction: A 30 g

Shock Direction: B2 15 g

Shock Direction: C1 25 g

Shock Direction: C2 25 g

Closed, Shock Direction: B1 25 g

Open, Shock Direction: B1 5 g

Shock Direction: A 30 g

Shock Direction: B2 15 g

Shock Direction: C1 25 g

Shock Direction: C2 25 g

Resistance to Vibrations:

4g Closed Position & 2g Open position 5 ... 300 Hz

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

6f58c756-afeb-453f-a363-0ee8b476dfbb France

Simplified SCIP:

3deb17f8-9c06-4eb7-899b-a1c153ca99d5 Sweden

0f0bf2aa-d6d9-4eee-913c-afad142f1786 Poland

2fe90688-ac10-4a3e-9e34-9df1246337a8 France

6add860b-bcda-4fa1-a192-e65220454cb6 Germany

132698d2-18ef-4b27-933d-ac6b48788aef Sweden

3d2ffd99-f19e-4059-868e-7317979818fa Finland

6e95ad43-1bde-4887-8bfd-1ab0abc6d58c Italy

6d6b0b90-5387-435d-9e4a-b07c3d29effb Netherlands

86a0b16d-eacd-4670-a411-941e42e9b83e Greece

b9defdc9-9715-4311-bbf4-033c39b27e10 Portugal

eb94c07f-225d-4b89-a596-0812813e017b Germany

fbfa9e77-1a34-4102-8448-9525fe8f6cce Germany

1e49ea39-e5ab-4593-8e49-472da9b4fdb8 Denmark

eae0abce-df0b-49dd-a056-84fa83edc5d3 Germany

a93e32b5-186d-4858-9be8-d93c4940de67 Czech Republic

c13c4ab7-c4cb-4d7d-91be-fab3c4c7b416 Poland

7be29633-a94c-46f3-b246-0ca792615ffe Germany

4c5fee66-9428-4135-a8ca-8d6de49c5410 Poland

bbc35c5d-a088-4347-b745-bc6ea5a49dc3 Norway

f67726bb-0e6b-489a-8869-1fe8a5315b95 Spain

f88fa7e5-0286-4ed6-a1be-c127d9f791a4 Hungary

9c0714c2-a501-442d-908b-6faab74e2066 Belgium

ab9cbd72-01d1-421e-b9c9-5509fcd097f6 Bulgaria

3deb17f8-9c06-4eb7-899b-a1c153ca99d5 Sweden

0f0bf2aa-d6d9-4eee-913c-afad142f1786 Poland

2fe90688-ac10-4a3e-9e34-9df1246337a8 France

6add860b-bcda-4fa1-a192-e65220454cb6 Germany

132698d2-18ef-4b27-933d-ac6b48788aef Sweden

3d2ffd99-f19e-4059-868e-7317979818fa Finland

6e95ad43-1bde-4887-8bfd-1ab0abc6d58c Italy

6d6b0b90-5387-435d-9e4a-b07c3d29effb Netherlands

86a0b16d-eacd-4670-a411-941e42e9b83e Greece

b9defdc9-9715-4311-bbf4-033c39b27e10 Portugal

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

End Of Life Disassembling Instructions:

End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays

Environmental Product Declaration - EPD:

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  86 %

Sustainable Material Content in Product (wt. %):

Recycled Metal -  28 %

Certificates and Declarations

A2L Certificate – UL:

UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

ABS Certificate:

ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers

BV Certificate:

BV Certificate AF(C)09...AF(C)38 3-pole and 4-pole contactors with screw and Push-in Spring terminals

CB Certificate:

CB Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CCC Certificate:

CCC Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CQC Certificate:

CQC Certificate AF(C)09, AF(C)12, AF(C)16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CQC Certificate, Contactor, AF09,AF12,AF16, Made in China

CQC Certificate AF(C)09, AF(C)12, AF(C)16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CQC Certificate, Contactor, AF09,AF12,AF16, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AF*09, AF*12, AF*16, Made in France

CCC Declaration of Conformity, Contactor, AF09,AF12,AF16, Made in China

CCC Declaration of Conformity, Contactor, AF*09, AF*12, AF*16, Made in France

CCC Declaration of Conformity, Contactor, AF09,AF12,AF16, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity AF09... AF96-30-.., AF09...38(Z)-30..K 3-pole Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity AF09... AF96-30-.., AF09...38(Z)-30..K 3-pole Contactors

DNV Certificate:

DNV Certificate AF(S)09...96 3-pole & AF09...80 4-pole contactors with screw, spring, push-in terminals

GOST Certificate:

GOST_POCCFR.ME77.B07175.pdf

KC Certificate:

KC Certificate AF09 3-pole contactors

LR Certificate:

LRS Certificate AF(S)09..(K) ... AF96 3 and 4-pole contactors and CA(L)4..(K), CAT4, CC4 auxiliary contact blocks

RINA Certificate:

Rina Certificate for AF(S)09...AF(S)96 contactors, NF contactor relays and accessories with screw,spring and push-in terminals

RMRS Certificate:

RMRS Certificate AF(S)09(S)...AF(S)38 3-pole and 4-pole, AF(S)40..96 3-pole contactors with screw, push-in and spring terminals

UL Certificate:

UL-US Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL-CA Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL-US Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL-CA Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL Listing Card:

E312527

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

87 mm

Package Level 1 Depth / Length:

79 mm

Package Level 1 Height:

47 mm

Package Level 1 Gross Weight:

0.31 kg

Package Level 1 EAN:

3471523113213

Package Level 2 Units:

box 27 piece

Package Level 2 Width:

250 mm

Package Level 2 Depth / Length:

300 mm

Package Level 2 Height:

315 mm

Package Level 2 Gross Weight:

8.37 kg

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4758 >> Iec Contactors

E-Number (Finland):

3706210

E-Number (Sweden):

3210005

ABB 1SBL121001R2610 ABB - AS16-30-10-26

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

EPLAN Data:

EPLAN EDZ AS16

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3

CAD Dimensional Drawing:

Dimensions

Product Net Width:

45 mm

Product Net Depth / Length:

72.5 mm

Product Net Height:

68 mm

Product Net Weight:

0.22 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Standards:

IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 25 A

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 25 A

acc. to IEC 60947-5-1, Θ = 40 °C 10 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 24 A

(690 V) 60 °C 20 A

(690 V) 70 °C 16 A

(690 V) 40 °C 24 A

(690 V) 60 °C 20 A

(690 V) 70 °C 16 A

Rated Operational Current AC-3 (I_e):

(415 V) 60 °C 15.5 A

(440 V) 60 °C 13.6 A

(500 V) 60 °C 12.5 A

(690 V) 60 °C 9 A

(380 / 400 V) 60 °C 15.5 A

(220 / 230 / 240 V) 60 °C 15.7 A

(415 V) 60 °C 15.5 A

(440 V) 60 °C 13.6 A

(500 V) 60 °C 12.5 A

(690 V) 60 °C 9 A

(380 / 400 V) 60 °C 15.5 A

(220 / 230 / 240 V) 60 °C 15.7 A

Rated Operational Current AC-15 (I_e):

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) NC 2

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

Rated Operational Power AC-3 (P_e):

(400 V) 7.5 kW

(415 V) 7.5 kW

(440 V) 7.5 kW

(500 V) 7.5 kW

(690 V) 7.5 kW

(220 / 230 / 240 V) 4 kW

(400 V) 7.5 kW

(415 V) 7.5 kW

(440 V) 7.5 kW

(500 V) 7.5 kW

(690 V) 7.5 kW

(220 / 230 / 240 V) 4 kW

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 24 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A

for 0.1 s 140 A

for 1 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 24 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A

for 0.1 s 140 A

for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

Auxiliary Circuit 6 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

50 Hz 230 V

60 Hz 230 V

50 Hz 230 V

60 Hz 230 V

Power Loss:

at Rated Operating Conditions AC-1 per Pole 1.2 W

at Rated Operating Conditions AC-3 per Pole 0.5 W

at Rated Operating Conditions AC-1 per Pole 1.2 W

at Rated Operating Conditions AC-3 per Pole 0.5 W

Operate Time:

Between Coil De-energization and NC Contact Closing 7 ... 22 ms

Between Coil De-energization and NO Contact Opening 5 ... 19 ms

Between Coil Energization and NC Contact Opening 6 ... 18 ms

Between Coil Energization and NO Contact Closing 9 ... 24 ms

Between Coil De-energization and NC Contact Closing 7 ... 22 ms

Between Coil De-energization and NO Contact Opening 5 ... 19 ms

Between Coil Energization and NC Contact Opening 6 ... 18 ms

Between Coil Energization and NO Contact Closing 9 ... 24 ms

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 9 mm

Control Circuit 9 mm

Main Circuit 9 mm

Auxiliary Circuit 9 mm

Control Circuit 9 mm

Main Circuit 9 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Tightening Torque:

Auxiliary Circuit 1 N·m

Control Circuit 1 N·m

Main Circuit 1 N·m

Auxiliary Circuit 1 N·m

Control Circuit 1 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

General Use Rating UL/CSA:

(600 V AC) 20 A

Horsepower Rating UL/CSA:

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 3 hp

(220 ... 240 V AC) Three Phase 5 hp

(240 V AC) Single Phase 2 hp

(440 ... 480 V AC) Three Phase 10 hp

(550 ... 600 V AC) Three Phase 10 hp

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 3 hp

(220 ... 240 V AC) Three Phase 5 hp

(240 V AC) Single Phase 2 hp

(440 ... 480 V AC) Three Phase 10 hp

(550 ... 600 V AC) Three Phase 10 hp

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb

Control Circuit 9 in·lb

Main Circuit 9 in·lb

Auxiliary Circuit 9 in·lb

Control Circuit 9 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 11 A

(220 ... 240 V AC) Three Phase 15.2 A

(240 V AC) Single Phase 12 A

(440 ... 480 V AC) Three Phase 14 A

(550 ... 600 V AC) Three Phase 11 A

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 11 A

(220 ... 240 V AC) Three Phase 15.2 A

(240 V AC) Single Phase 12 A

(440 ... 480 V AC) Three Phase 14 A

(550 ... 600 V AC) Three Phase 11 A

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27:

Closed, Shock Direction: B1 10 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 20 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 9 g

Open, Shock Direction: C2 14 g

Shock Direction: A 20 g

Shock Direction: B2 15 g

Closed, Shock Direction: B1 10 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 20 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 9 g

Open, Shock Direction: C2 14 g

Shock Direction: A 20 g

Shock Direction: B2 15 g

Resistance to Vibrations:

3g Closed Position & 2g Open Position 5 ... 300 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB certificate for AS(L).. contactors

CCC Certificate:

CCC certificate for AS(L)09 to 16 and AS(L)09 to 16..S contactors, with screw and spring terminals

CQC Certificate:

CQC Certificate, Contactor, AS09,AS12,AS16,ASL09,ASL12,ASL16, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AS09,AS12,AS16,ASL09,ASL12,ASL16, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity AS(L)09 to AS(L)16 3 pole contactors

Declaration of Conformity - UKCA:

UK Declaration of conformity for AS/ASL contactors

GOST Certificate:

GOST_POCCCNME77B07822.pdf

UL Certificate:

UL Certificate of Compliance – AS(L) contactor with screw and spring terminals

UL Listing Card:

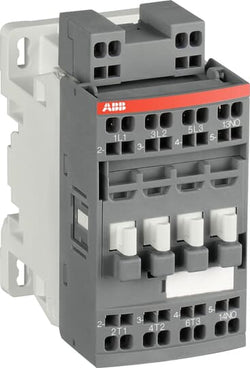

ABB 1SBL136059R2110 ABB - AF09ZB-30-10S-21

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

78 mm

Package Level 1 Depth / Length:

80 mm

Package Level 1 Height:

48 mm

Package Level 1 Gross Weight:

0.22 kg

Package Level 1 EAN:

3471523036260

Package Level 3 Units:

960 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4761 >> Magnet contactor, AC-switching

E-Number (Sweden):

3210516

€0,00

Sold Out

AF09ZB-30-10S-21 24-60V50/60HZ 20-60VDC Contactor

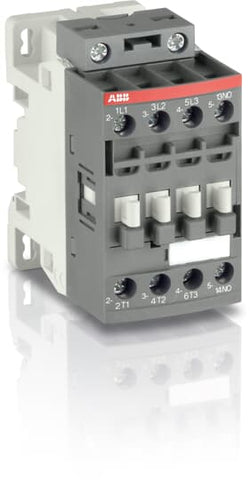

ABB 1SBL136061R2110 ABB - AF09ZB-30-10-21

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Data Sheet, Technical Information:

Motor control and protection for Rolling stock application_PDF

Instructions and Manuals:

Installation instructions AF(C)09...38(Z)(B) Contactors, NF(C)(Z)(B)22...80E Contactor relays and CA4, CAL4, CAT4, CC4, LDC4 Accessories

Instructions and Manuals (Part 2):

Contactors and Overload relays guide

CAD Dimensional Drawing:

Dimensions

Product Net Width:

45 mm

Product Net Depth / Length:

77 mm

Product Net Height:

86 mm

Product Net Weight:

0.31 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Number of Poles:

3P

Standards:

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 25 A

(690 V) 60 °C 25 A

(690 V) 70 °C 22 A

(690 V) 40 °C 25 A

(690 V) 60 °C 25 A

(690 V) 70 °C 22 A

Rated Operational Current AC-3 (I_e):

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

Rated Operational Current AC-3e (I_e):

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

Rated Operational Current AC-15 (I_e):

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(400 / 440 V) 3 A

Rated Operational Current DC-1 (I_e):

(110 V) 1-Pole, 40 °C 10 A

(110 V) 1-Pole, 60 °C 10 A

(110 V) 1-Pole, 70 °C 10 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 10 A

(220 V) 2 Poles in Series, 60 °C 10 A

(220 V) 2 Poles in Series, 70 °C 10 A

(220 V) 3 Poles in Series, 40 °C 25 A

(220 V) 3 Poles in Series, 60 °C 25 A

(220 V) 3 Poles in Series, 70 °C 22 A

(72 V) 1-Pole, 40 °C 25 A

(72 V) 1-Pole, 60 °C 25 A

(72 V) 1-Pole, 70 °C 22 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 10 A

(110 V) 1-Pole, 60 °C 10 A

(110 V) 1-Pole, 70 °C 10 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 10 A

Rated Operational Current DC-3 (I_e):

(110 V) 1-Pole, 40 °C 6 A

(110 V) 1-Pole, 60 °C 6 A

(110 V) 1-Pole, 70 °C 6 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 6 A

(220 V) 2 Poles in Series, 60 °C 6 A

(220 V) 2 Poles in Series, 70 °C 6 A

(220 V) 3 Poles in Series, 40 °C 25 A

(220 V) 3 Poles in Series, 60 °C 25 A

(220 V) 3 Poles in Series, 70 °C 22 A

(72 V) 1-Pole, 40 °C 25 A

(72 V) 1-Pole, 60 °C 25 A

(72 V) 1-Pole, 70 °C 22 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 6 A

(110 V) 1-Pole, 60 °C 6 A

(110 V) 1-Pole, 70 °C 6 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 6 A

Rated Operational Current DC-5 (I_e):

(110 V) 1-Pole, 40 °C 4 A

(110 V) 1-Pole, 60 °C 4 A

(110 V) 1-Pole, 70 °C 4 A

(110 V) 2 Poles in Series, 40 °C 10 A

(110 V) 2 Poles in Series, 60 °C 10 A

(110 V) 2 Poles in Series, 70 °C 10 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 4 A

(220 V) 2 Poles in Series, 60 °C 4 A

(220 V) 2 Poles in Series, 70 °C 4 A

(220 V) 3 Poles in Series, 40 °C 9 A

(220 V) 3 Poles in Series, 60 °C 9 A

(220 V) 3 Poles in Series, 70 °C 9 A

(72 V) 1-Pole, 40 °C 9 A

(72 V) 1-Pole, 60 °C 9 A

(72 V) 1-Pole, 70 °C 9 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 4 A

(110 V) 1-Pole, 60 °C 4 A

(110 V) 1-Pole, 70 °C 4 A

(110 V) 2 Poles in Series, 40 °C 10 A

(110 V) 2 Poles in Series, 60 °C 10 A

(110 V) 2 Poles in Series, 70 °C 10 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 4 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(400 V) 0.15 A / 60 W

(500 V) 0.13 A / 65 W

(600 V) 0.1 A / 60 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 1 A / 72 W

(110 V) 0.55 A / 60 W

(125 V) 0.55 A / 69 W

(220 V) 0.27 A / 60 W

(250 V) 0.27 A / 68 W

(400 V) 0.15 A / 60 W

(500 V) 0.13 A / 65 W

(600 V) 0.1 A / 60 W

Rated Operational Power AC-3 (P_e):

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

Rated Operational Power AC-3e (P_e):

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A

for 0.1 s 140 A

for 1 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A

for 0.1 s 140 A

for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 690 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 690 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

(AC-1) 600 cycles per hour

(AC-15) 1200 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

50 Hz 24 ... 60 V

60 Hz 24 ... 60 V

DC Operation 20 ... 60 V

50 Hz 24 ... 60 V

60 Hz 24 ... 60 V

DC Operation 20 ... 60 V

Power Loss:

at 6 A per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

at 6 A per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

Operate Time:

Between Coil De-energization and NC Contact Closing 13 ... 98 ms

Between Coil De-energization and NO Contact Opening 11 ... 95 ms

Between Coil Energization and NC Contact Opening 38 ... 90 ms

Between Coil Energization and NO Contact Closing 40 ... 95 ms

Between Coil De-energization and NC Contact Closing 13 ... 98 ms

Between Coil De-energization and NO Contact Opening 11 ... 95 ms

Between Coil Energization and NC Contact Opening 38 ... 90 ms

Between Coil Energization and NO Contact Closing 40 ... 95 ms

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied) :

2 x M4 Screws Placed Diagonally

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 6 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 4 mm²

Rigid Stranded 1/2x 1 ... 6 mm²

Flexible with Ferrule 1/2x 0.75 ... 6 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 4 mm²

Rigid Stranded 1/2x 1 ... 6 mm²

Connecting Capacity Auxiliary Circuit:

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length:

Auxiliary Circuit 10 mm

Control Circuit 10 mm

Main Circuit 10 mm

Auxiliary Circuit 10 mm

Control Circuit 10 mm

Main Circuit 10 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Tightening Torque:

Auxiliary Circuit 1.2 N·m

Control Circuit 1.2 N·m

Main Circuit 1.5 N·m

Auxiliary Circuit 1.2 N·m

Control Circuit 1.2 N·m

Main Circuit 1.5 N·m

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

NEMA Size:

00

Continuous Current Rating NEMA:

9 A

Horsepower Rating NEMA:

(115 V AC) Single Phase 1/3 Hp

(200 V AC) Three Phase 1-1/2 Hp

(230 V AC) Single Phase 1 Hp

(230 V AC) Three Phase 1-1/2 Hp

(460 V AC) Three Phase 2 Hp

(575 V AC) Three Phase 2 Hp

(115 V AC) Single Phase 1/3 Hp

(200 V AC) Three Phase 1-1/2 Hp

(230 V AC) Single Phase 1 Hp

(230 V AC) Three Phase 1-1/2 Hp

(460 V AC) Three Phase 2 Hp

(575 V AC) Three Phase 2 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

General Use Rating UL/CSA:

(600 V AC) 25 A

Horsepower Rating UL/CSA:

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 2 hp

(240 V AC) Single Phase 1-1/2 hp

(440 ... 480 V AC) Three Phase 5 hp

(550 ... 600 V AC) Three Phase 7-1/2 hp

(120 V AC) Single Phase 3/4 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 2 hp

(240 V AC) Single Phase 1-1/2 hp

(440 ... 480 V AC) Three Phase 5 hp

(550 ... 600 V AC) Three Phase 7-1/2 hp

Connecting Capacity Main Circuit UL/CSA:

Rigid Solid 1/2x 16-10 AWG

Rigid Stranded 1/2x 16-10 AWG

Rigid Solid 1/2x 16-10 AWG

Rigid Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA:

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Connecting Capacity Control Circuit UL/CSA:

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA:

Auxiliary Circuit 11 in·lb

Control Circuit 11 in·lb

Main Circuit 13 in·lb

Auxiliary Circuit 11 in·lb

Control Circuit 11 in·lb

Main Circuit 13 in·lb

Full Load Amps Motor Use:

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 7.8 A

(220 ... 240 V AC) Three Phase 6.8 A

(240 V AC) Single Phase 10 A

(440 ... 480 V AC) Three Phase 7.6 A

(550 ... 600 V AC) Three Phase 9 A

(120 V AC) Single Phase 13.8 A

(200 ... 208 V AC) Three Phase 7.8 A

(220 ... 240 V AC) Three Phase 6.8 A

(240 V AC) Single Phase 10 A

(440 ... 480 V AC) Three Phase 7.6 A

(550 ... 600 V AC) Three Phase 9 A

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Shock and Vibration Withstand acc. to IEC 61373:

Category 1, Class B

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

0e2ffedb-f43b-40b8-9791-a600bb7283e4 China

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

End Of Life Disassembling Instructions:

End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays

Environmental Product Declaration - EPD:

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  86 %

Sustainable Material Content in Product (wt. %):

Recycled Metal -  28 %

Certificates and Declarations

A2L Certificate – UL:

UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

CB Certificate:

CB Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CCC Certificate:

CCC Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CQC Certificate:

CQC Certificate AF(C)09, AF(C)12, AF(C)16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AF*09, AF*12, AF*16, Made in France

Declaration of Conformity - CE:

EU Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors

GOST Certificate:

GOST_POCCFR.ME77.B07175.pdf

KC Certificate:

KC Certificate AF09 3-pole contactors

UL Certificate:

UL-US Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL-CA Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL-US Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL-CA Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block

UL Listing Card:

E312527

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

87 mm

Package Level 1 Depth / Length:

79 mm

Package Level 1 Height:

47 mm

Package Level 1 Gross Weight:

0.31 kg

Package Level 1 EAN:

3471523123519

Package Level 2 Units:

box 27 piece

Package Level 2 Width:

250 mm

Package Level 2 Depth / Length:

300 mm

Package Level 2 Height:

315 mm

Package Level 2 Gross Weight:

16.74 kg

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4758 >> Iec Contactors

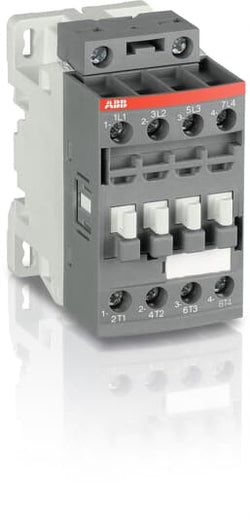

ABB 1SBL136261R2100 ABB - AF09ZB-40-00-21

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Data Sheet, Technical Information:

Motor control and protection for Rolling stock application_PDF

Instructions and Manuals:

Installation instructions AF(C)09...38(Z)(B) Contactors, NF(C)(Z)(B)22...80E Contactor relays and CA4, CAL4, CAT4, CC4, LDC4 Accessories

Instructions and Manuals (Part 2):

Contactors and Overload relays guide

CAD Dimensional Drawing:

Dimensions

Product Net Width:

45 mm

Product Net Depth / Length:

77 mm

Product Net Height:

86 mm

Product Net Weight:

0.31 kg

Technical

Number of Main Contacts NO:

4

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.

Rated Operational Voltage:

Main Circuit 690 V

Rated Frequency (f):

Control Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 25 A

(690 V) 60 °C 25 A

(690 V) 70 °C 22 A

(690 V) 40 °C 25 A

(690 V) 60 °C 25 A

(690 V) 70 °C 22 A

Rated Operational Current AC-3 (I_e):

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

(415 V) 60 °C 9 A

(440 V) 60 °C 9 A

(500 V) 60 °C 9.5 A

(690 V) 60 °C 7 A

(380 / 400 V) 60 °C 9 A

(220 / 230 / 240 V) 60 °C 9 A

Rated Operational Current DC-1 (I_e):

(110 V) 1-Pole, 40 °C 10 A

(110 V) 1-Pole, 60 °C 10 A

(110 V) 1-Pole, 70 °C 10 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(110 V) 4 Poles in Series, 40 °C 25 A

(110 V) 4 Poles in Series, 60 °C 25 A

(110 V) 4 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 10 A

(220 V) 2 Poles in Series, 60 °C 10 A

(220 V) 2 Poles in Series, 70 °C 10 A

(220 V) 3 Poles in Series, 40 °C 25 A

(220 V) 3 Poles in Series, 60 °C 25 A

(220 V) 3 Poles in Series, 70 °C 22 A

(220 V) 4 Poles in Series, 40 °C 25 A

(220 V) 4 Poles in Series, 60 °C 25 A

(220 V) 4 Poles in Series, 70 °C 22 A

(440 V) 4 Poles in Series, 40 °C 10 A

(440 V) 4 Poles in Series, 60 °C 10 A

(440 V) 4 Poles in Series, 70 °C 10 A

(72 V) 1-Pole, 40 °C 25 A

(72 V) 1-Pole, 60 °C 25 A

(72 V) 1-Pole, 70 °C 22 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(72 V) 4 Poles in Series, 40 °C 25 A

(72 V) 4 Poles in Series, 60 °C 25 A

(72 V) 4 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 10 A

(110 V) 1-Pole, 60 °C 10 A

(110 V) 1-Pole, 70 °C 10 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(110 V) 4 Poles in Series, 40 °C 25 A

Rated Operational Current DC-3 (I_e):

(110 V) 1-Pole, 40 °C 6 A

(110 V) 1-Pole, 60 °C 6 A

(110 V) 1-Pole, 70 °C 6 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(110 V) 4 Poles in Series, 40 °C 25 A

(110 V) 4 Poles in Series, 60 °C 25 A

(110 V) 4 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 6 A

(220 V) 2 Poles in Series, 60 °C 6 A

(220 V) 2 Poles in Series, 70 °C 6 A

(220 V) 3 Poles in Series, 40 °C 25 A

(220 V) 3 Poles in Series, 60 °C 25 A

(220 V) 3 Poles in Series, 70 °C 22 A

(220 V) 4 Poles in Series, 40 °C 25 A

(220 V) 4 Poles in Series, 60 °C 25 A

(220 V) 4 Poles in Series, 70 °C 22 A

(440 V) 4 Poles in Series, 40 °C 6 A

(440 V) 4 Poles in Series, 60 °C 6 A

(440 V) 4 Poles in Series, 70 °C 6 A

(72 V) 1-Pole, 40 °C 25 A

(72 V) 1-Pole, 60 °C 25 A

(72 V) 1-Pole, 70 °C 22 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(72 V) 4 Poles in Series, 40 °C 25 A

(72 V) 4 Poles in Series, 60 °C 25 A

(72 V) 4 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 6 A

(110 V) 1-Pole, 60 °C 6 A

(110 V) 1-Pole, 70 °C 6 A

(110 V) 2 Poles in Series, 40 °C 25 A

(110 V) 2 Poles in Series, 60 °C 25 A

(110 V) 2 Poles in Series, 70 °C 22 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(110 V) 4 Poles in Series, 40 °C 25 A

Rated Operational Current DC-5 (I_e):

(110 V) 1-Pole, 40 °C 4 A

(110 V) 1-Pole, 60 °C 4 A

(110 V) 1-Pole, 70 °C 4 A

(110 V) 2 Poles in Series, 40 °C 10 A

(110 V) 2 Poles in Series, 60 °C 10 A

(110 V) 2 Poles in Series, 70 °C 10 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(110 V) 4 Poles in Series, 40 °C 25 A

(110 V) 4 Poles in Series, 60 °C 25 A

(110 V) 4 Poles in Series, 70 °C 22 A

(220 V) 2 Poles in Series, 40 °C 4 A

(220 V) 2 Poles in Series, 60 °C 4 A

(220 V) 2 Poles in Series, 70 °C 4 A

(220 V) 3 Poles in Series, 40 °C 9 A

(220 V) 3 Poles in Series, 60 °C 9 A

(220 V) 3 Poles in Series, 70 °C 9 A

(220 V) 4 Poles in Series, 40 °C 10 A

(220 V) 4 Poles in Series, 60 °C 10 A

(220 V) 4 Poles in Series, 70 °C 10 A

(440 V) 4 Poles in Series, 40 °C 4 A

(440 V) 4 Poles in Series, 60 °C 4 A

(440 V) 4 Poles in Series, 70 °C 4 A

(72 V) 1-Pole, 40 °C 9 A

(72 V) 1-Pole, 60 °C 9 A

(72 V) 1-Pole, 70 °C 9 A

(72 V) 2 Poles in Series, 40 °C 25 A

(72 V) 2 Poles in Series, 60 °C 25 A

(72 V) 2 Poles in Series, 70 °C 22 A

(72 V) 3 Poles in Series, 40 °C 25 A

(72 V) 3 Poles in Series, 60 °C 25 A

(72 V) 3 Poles in Series, 70 °C 22 A

(72 V) 4 Poles in Series, 40 °C 25 A

(72 V) 4 Poles in Series, 60 °C 25 A

(72 V) 4 Poles in Series, 70 °C 22 A

(110 V) 1-Pole, 40 °C 4 A

(110 V) 1-Pole, 60 °C 4 A

(110 V) 1-Pole, 70 °C 4 A

(110 V) 2 Poles in Series, 40 °C 10 A

(110 V) 2 Poles in Series, 60 °C 10 A

(110 V) 2 Poles in Series, 70 °C 10 A

(110 V) 3 Poles in Series, 40 °C 25 A

(110 V) 3 Poles in Series, 60 °C 25 A

(110 V) 3 Poles in Series, 70 °C 22 A

(110 V) 4 Poles in Series, 40 °C 25 A

Rated Operational Power AC-3 (P_e):

(400 V) 4 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

(400 V) 4 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

50 Hz 24 ... 60 V

60 Hz 24 ... 60 V

DC Operation 20 ... 60 V

50 Hz 24 ... 60 V

60 Hz 24 ... 60 V

DC Operation 20 ... 60 V

Power Loss:

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

Operate Time:

Between Coil De-energization and NC Contact Closing 13 ... 98 ms

Between Coil De-energization and NO Contact Opening 11 ... 95 ms

Between Coil Energization and NC Contact Opening 38 ... 90 ms

Between Coil Energization and NO Contact Closing 40 ... 95 ms

Between Coil De-energization and NC Contact Closing 13 ... 98 ms

Between Coil De-energization and NO Contact Opening 11 ... 95 ms

Between Coil Energization and NC Contact Opening 38 ... 90 ms

Between Coil Energization and NO Contact Closing 40 ... 95 ms

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied) :

2 x M4 Screws Placed Diagonally

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 6 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 4 mm²

Rigid Stranded 1/2x 1 ... 6 mm²

Flexible with Ferrule 1/2x 0.75 ... 6 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 4 mm²

Rigid Stranded 1/2x 1 ... 6 mm²

Connecting Capacity Auxiliary Circuit:

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid Solid 1/2x 1 ... 2.5 mm²

Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 10 mm

Main Circuit 10 mm

Control Circuit 10 mm

Main Circuit 10 mm

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Tightening Torque:

Control Circuit 1.2 N·m

Main Circuit 1.5 N·m

Control Circuit 1.2 N·m

Main Circuit 1.5 N·m

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

General Use Rating UL/CSA:

(600 V AC) 25 A

Connecting Capacity Main Circuit UL/CSA:

Rigid Solid 1/2x 16-10 AWG

Rigid Stranded 1/2x 16-10 AWG

Rigid Solid 1/2x 16-10 AWG

Rigid Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA:

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Connecting Capacity Control Circuit UL/CSA:

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Rigid Solid 1/2x 18-14 AWG

Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA:

Control Circuit 11 in·lb

Main Circuit 13 in·lb

Control Circuit 11 in·lb

Main Circuit 13 in·lb

Environmental

Ambient Air Temperature:

Close to Contactor for Storage -60 ... +80 °C

Near Contactor for Operation in Free Air -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Near Contactor for Operation in Free Air -40 ... 70 °C

Climatic Withstand:

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Shock and Vibration Withstand acc. to IEC 61373:

Category 1, Class B

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

9319a2ce-80c2-45ea-8d9d-c515ce188c68 China

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

End Of Life Disassembling Instructions:

End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays

Environmental Product Declaration - EPD:

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)

Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  86 %

Sustainable Material Content in Product (wt. %):

Recycled Metal -  28 %

Certificates and Declarations

A2L Certificate – UL:

UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers

CB Certificate:

CB Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CCC Certificate:

CCC Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

CQC Certificate:

CQC Certificate AF(C)09, AF(C)12, AF(C)16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AF*09, AF*12, AF*16, Made in France

Declaration of Conformity - CE:

EU Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors

GOST Certificate:

GOST_POCCFR.ME77.B07175.pdf

KC Certificate:

KC Certificate AF09 4pole contactors

UL Certificate:

UL-US Certificate of Compliance AF(C)09..(K) ... AF(C)38 4-pole contactors with screw and push-in spring terminals

UL-CA Certificate of Compliance AF(C)09..(K) ... AF(C)38 4-pole contactors with screw and push-in spring terminals

UL-US Certificate of Compliance AF(C)09..(K) ... AF(C)38 4-pole contactors with screw and push-in spring terminals

UL-CA Certificate of Compliance AF(C)09..(K) ... AF(C)38 4-pole contactors with screw and push-in spring terminals

UL Listing Card:

UL_E319322

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

87 mm

Package Level 1 Depth / Length:

79 mm

Package Level 1 Height:

47 mm

Package Level 1 Gross Weight:

0.31 kg

Package Level 1 EAN:

3471523124417

Package Level 2 Units:

box 27 piece

Package Level 2 Width:

250 mm

Package Level 2 Depth / Length:

300 mm

Package Level 2 Height:

315 mm

Package Level 2 Gross Weight:

16.74 kg

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000066 - Power contactor, AC switching

ETIM 8:

EC000066 - Power contactor, AC switching

ETIM 9:

EC000066 - Power contactor, AC switching

eClass:

V11.0 : 27371003

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4758 >> Iec Contactors

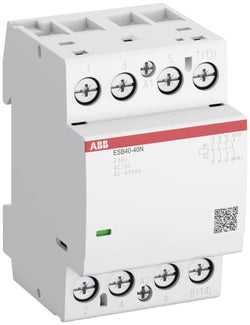

ABB 1SAE341111R0631 ABB - ESB40-31N-06

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 30 A

(NO) 40 A

(NC) 30 A

(NO) 40 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Current AC-7a (I_e):

(NO) 40 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 176 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 70000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

AC-1 (NC) 70000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

230 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 3 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 3 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NC 3 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 22 A

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NC 22 A

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614524813

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.96 kg

Package Level 2 EAN:

4013614539206

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707585

ABB 1SAE341111R0131 ABB - ESB40-31N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 30 A

(NO) 40 A

(NC) 30 A

(NO) 40 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Current AC-7a (I_e):

(NO) 40 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 176 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 70000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

AC-1 (NC) 70000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 3 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 3 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NC 3 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 22 A

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NC 22 A

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614524622

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.96 kg

Package Level 2 EAN:

4013614539015

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707584

ABB 1SAE341111R1440 ABB - ESB40-40N-14

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

4

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 40 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Current AC-7a (I_e):

(NO) 40 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 176 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

12 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 3 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

NF Certificate - ESB25-N, EN25-N ,ESB40-N, EN40-N, ESB63-N, ESB100-N - Installation Contactor

NF Certificate:

RINA Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614524905

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.96 kg

Package Level 2 EAN:

4013614539299

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

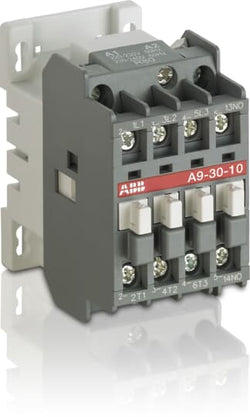

ABB 1SBL141001R8601 ABB - A9-30-01 400-415V 50Hz / 415-440V 60Hz

€0,00

Sold Out

A9-30-01 400-415V 50Hz / 415-440V 60Hz Contactor

ABB 1SAE351111R0631 ABB - ESB63-31N-06

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 30 A

(NO) 63 A

(NC) 30 A

(NO) 63 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

Rated Operational Current AC-7a (I_e):

(NO) 63 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

(230 V) Single Phase, NC 6.9 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 240 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 70000 cycle

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

AC-1 (NC) 70000 cycle

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NC) 70000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

230 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 4.5 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 5 Hp

(220 ... 240 V AC) Single Phase, NO  5 Hp

(220 ... 240 V AC) Three Phase, NO 10 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NC 5 Hp

(220 ... 240 V AC) Single Phase, NO  5 Hp

(220 ... 240 V AC) Three Phase, NO 10 Hp

(440 ... 480 V AC) Single Phase, NC 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 28 A

(220 ... 240 V AC) Single Phase, NO  28 A

(220 ... 240 V AC) Three Phase, NO 28 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NC 28 A

(220 ... 240 V AC) Single Phase, NO  28 A

(220 ... 240 V AC) Three Phase, NO 28 A

(440 ... 480 V AC) Single Phase, NC 21 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614525537

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

13.3 kg

Package Level 2 EAN:

4013614539930

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707592

ABB 1SAE351111R0620 ABB - ESB63-20N-06

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.37 kg

Technical

Number of Main Contacts NO:

2

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

2P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 63 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 30 A

Rated Operational Current AC-7a (I_e):

(NO) 63 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 30 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 14.5 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 5 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 14.5 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 5 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 240 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

230 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 4.5 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NO  5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(220 ... 240 V AC) Single Phase, NO  5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NO  28 A

(440 ... 480 V AC) Single Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NO  28 A

(440 ... 480 V AC) Single Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.37 kg

Package Level 1 EAN:

4013614525506

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.2 kg

Package Level 2 EAN:

4013614539909

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707595

ABB 1SAE351111R0440 ABB - ESB63-40N-04

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

4

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 63 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

Rated Operational Current AC-7a (I_e):

(NO) 63 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 240 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

110 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 4.5 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NO  5 Hp

(220 ... 240 V AC) Three Phase, NO 10 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NO  5 Hp

(220 ... 240 V AC) Three Phase, NO 10 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NO  28 A

(220 ... 240 V AC) Three Phase, NO 28 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NO  28 A

(220 ... 240 V AC) Three Phase, NO 28 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

NF Certificate - ESB25-N, EN25-N ,ESB40-N, EN40-N, ESB63-N, ESB100-N - Installation Contactor

NF Certificate:

RINA Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614525421

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

13.3 kg

Package Level 2 EAN:

4013614539824

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Norway):

4190284

ABB 1SBL141001R8901 ABB - A9-30-01 110-115V 50Hz / 115-127V 60Hz

€0,00

Sold Out

A9-30-01 110-115V 50Hz / 115-127V 60Hz Contactor

ABB 1SBL141201R8200 ABB - A9-40-00 42V 50Hz / 42V 60Hz

€0,00

Sold Out

A9-40-00 42V 50Hz / 42V 60Hz Contactor

ABB 1SAE351111R1440 ABB - ESB63-40N-14

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.405 kg

Technical

Number of Main Contacts NO:

4

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 63 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

Rated Operational Current AC-7a (I_e):

(NO) 63 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

(230 V) Single Phase, NO 30 A

(400 V) Three Phase, NO 30 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

(230 V) Single Phase, NO 14.5 kW

(400 V) Three Phase, NO 43.6 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

(230 V) Single Phase, NO 5 kW

(400 V) Three Phase, NO 15 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 240 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

AC-1 (NO) 100000 cycle

AC-3 (NO) 240000 cycle

AC-7a (NO) 100000 cycle

AC-7b (NO) 240000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

12 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 60 V·A

Average Pull-in Value 60 Hz 60 V·A

Average Pull-in Value DC 70 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 4.5 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.0 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

(acc. to UL 240 V) 63 A

(acc. to UL 480 V) 63 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NO  5 Hp

(220 ... 240 V AC) Three Phase, NO 10 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NO  5 Hp

(220 ... 240 V AC) Three Phase, NO 10 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NO  28 A

(220 ... 240 V AC) Three Phase, NO 28 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NO  28 A

(220 ... 240 V AC) Three Phase, NO 28 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

NF Certificate - ESB25-N, EN25-N ,ESB40-N, EN40-N, ESB63-N, ESB100-N - Installation Contactor

NF Certificate:

RINA Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.405 kg

Package Level 1 EAN:

4013614525667

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

13.3 kg

Package Level 2 EAN:

4013614540066

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

ABB 1SBL143061R5110 ABB - TAL9-30-10 17-32V DC

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Data Sheet, Technical Information:

1SBC100122C0202_CH02

Instructions and Manuals:

Operating Instruction AL9...AL16, TAL9...TAL16, ALZ9...ALZ16 contactors, NL..E, NL Z..E, TNL..E contactor relays

CAD Dimensional Drawing:

Dimension Drawing for (T)AL/AL9(Z) to (T)AL/AL(Z)16 contactors, (T)NL..E and NL(Z)...E contactor relays

Dimension Diagram:

Dimensions

Product Net Width:

44 mm

Product Net Depth / Length:

97 mm

Product Net Height:

78 mm

Product Net Weight:

0.52 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Number of Poles:

3P

Rated Operational Voltage:

Auxiliary Circuit 690 V

Main Circuit 690 V

Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Auxiliary Circuit 50 / 60 Hz

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 26 A

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 26 A

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-1 (I_e):

(690 V) 40 °C 25 A

(690 V) 55 °C 22 A

(690 V) 70 °C 18 A

(690 V) 40 °C 25 A

(690 V) 55 °C 22 A

(690 V) 70 °C 18 A

Rated Operational Current AC-3 (I_e):

(415 V) 55 °C 9 A

(440 V) 55 °C 9 A

(500 V) 55 °C 9 A

(690 V) 55 °C 7 A

(380 / 400 V) 55 °C 9 A

(220 / 230 / 240 V) 55 °C 9 A

(415 V) 55 °C 9 A

(440 V) 55 °C 9 A

(500 V) 55 °C 9 A

(690 V) 55 °C 7 A

(380 / 400 V) 55 °C 9 A

(220 / 230 / 240 V) 55 °C 9 A

Rated Operational Current AC-15 (I_e):

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

(500 V) 2 A

(690 V) 2 A

(24 / 127 V) 6 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

Rated Operational Current DC-13 (I_e):

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 2 / 144 W

(110 V) 1.1 A / 121 W

(125 V) 1.1 / 138 W

(220 V) 0.55 A / 121 W

(250 V) 0.55 / 138 W

(24 V) 6 A / 144 W

(48 V) 2.8 A / 134 W

(72 V) 2 / 144 W

(110 V) 1.1 A / 121 W

(125 V) 1.1 / 138 W

(220 V) 0.55 A / 121 W

(250 V) 0.55 / 138 W

Rated Operational Power AC-3 (P_e):

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

(415 V) 4 kW

(440 V) 4 kW

(500 V) 5.5 kW

(690 V) 5.5 kW

(380 / 400 V) 4 kW

(220 / 230 / 240 V) 2.2 kW

Rated Breaking Capacity AC-3:

8 x Ie AC-3

Rated Making Capacity AC-3:

10 x Ie AC-3

Short-Circuit Protective Devices:

Auxiliary Circuit - gG Type Fuses 10 A

gG Type Fuses 25 A

Auxiliary Circuit - gG Type Fuses 10 A

gG Type Fuses 25 A

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 26 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 50 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 60 A

for 0.1 s 140 A

for 1 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 100 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 26 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 50 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 60 A

for 0.1 s 140 A

for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A

Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 1000 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 1000 V

acc. to IEC 60947-5-1 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U_imp):

8 kV

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

(AC-1) 600 cycles per hour

(AC-2 / AC-4) 300 cycles per hour

(AC-3) 1200 cycles per hour

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (U_c):

DC Operation 17 ... 32 V

Coil Consumption:

Holding DC (Umin / Umax) 2.5 W

Holding DC (Umin / Umax) 2.5 / 8.5 W

Pull-in DC (Umin / Umax) 2.5 / 8.5 W

Holding DC (Umin / Umax) 2.5 W

Holding DC (Umin / Umax) 2.5 / 8.5 W

Pull-in DC (Umin / Umax) 2.5 / 8.5 W

Power Loss:

at Rated Operating Conditions per Pole 0.1 W

at 6 A per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

at Rated Operating Conditions per Pole 0.1 W

at 6 A per Pole 0.1 W

at Rated Operating Conditions AC-1 per Pole 0.8 W

at Rated Operating Conditions AC-3 per Pole 0.1 W

Operate Time:

Between Coil De-energization and NO Contact Opening 10 ... 17 ms

Between Coil Energization and NO Contact Closing 50 ... 100 ms

Between Coil De-energization and NO Contact Opening 10 ... 17 ms

Between Coil Energization and NO Contact Closing 50 ... 100 ms

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied) :

2 x M4 Screws Placed Diagonally

Connecting Capacity Main Circuit:

Flexible with Cable End 0.75 ... 2.5 mm²

Rigid Cable 1 ... 4 mm²

Flexible with Cable End 0.75 ... 2.5 mm²

Rigid Cable 1 ... 4 mm²

Connecting Capacity Auxiliary Circuit:

Flexible with Cable End 0.75 ... 2.5 mm²

Rigid Cable 1 ... 4 mm²

Flexible with Cable End 0.75 ... 2.5 mm²

Rigid Cable 1 ... 4 mm²

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Connecting Terminals (delivered in open position) Main Poles:

M 3.5 (+,-) pozidriv 2 screw with cable clamp

Terminal Type:

Screw Terminals

Product Name:

Block Contactor

Technical UL/CSA

General Use Rating UL/CSA:

(600 V AC) 21 A

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 2 hp

(440 ... 480 V AC) Three Phase 5 hp

(550 ... 600 V AC) Three Phase 7-1/2 hp

(200 ... 208 V AC) Three Phase 2 hp

(220 ... 240 V AC) Three Phase 2 hp

(440 ... 480 V AC) Three Phase 5 hp

(550 ... 600 V AC) Three Phase 7-1/2 hp

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C

Close to Contactor without Thermal O/L Relay -40 ... 55 °C

Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °C

Close to Contactor for Storage -60 ... +80 °C

Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C

Close to Contactor without Thermal O/L Relay -40 ... 55 °C

Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:

acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

Maximum Operating Altitude Permissible:

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27:

Closed, Shock Direction: A 20 g

Closed, Shock Direction: B1 15 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 14 g

Open, Shock Direction: A 10 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 8 g

Open, Shock Direction: C2 8 g

Shock Direction: B2 10 g

Closed, Shock Direction: A 20 g

Closed, Shock Direction: B1 15 g

Closed, Shock Direction: C1 20 g

Closed, Shock Direction: C2 14 g

Open, Shock Direction: A 10 g

Open, Shock Direction: B1 5 g

Open, Shock Direction: C1 8 g

Open, Shock Direction: C2 8 g

Shock Direction: B2 10 g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate for TAL9, TAL12, TAL16-30 3-pole contactors

CCC Certificate:

CCC Certificate for 3-and 4-pole contactors AL9 ... AL16, TAL9...TAL16, TAL9.RT...TAL16.RT

CQC Certificate:

CQC Certificate, Contactor, AL9-30-xx, AL12-30-xx, AL16-30-xx, AL9-40-xx, AL16-40-xx, AL9-22-xx, AL16-22-xx, TAL9-30-xx, TAL12-30-xx, TAL16-30-xx, TAL9-40-xx, TAL16-40-xx, TAL9-22-xx, TAL16-22-xx, TAL9-30-xxRT, AL12-30-xxRT, TAL16-30-xxRT, Made in Bulgaria

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Contactor, AL9-30-xx, AL12-30-xx, AL16-30-xx, AL9-40-xx, AL16-40-xx, AL9-22-xx, AL16-22-xx, TAL9-30-xx, TAL12-30-xx, TAL16-30-xx, TAL9-40-xx, TAL16-40-xx, TAL9-22-xx, TAL16-22-xx, TAL9-30-xxRT, AL12-30-xxRT, TAL16-30-xxRT, Made in Bulgaria

Declaration of Conformity - CE:

EU Declaration of Conformity (T)AL9 to 40 (RT) 3 and 4-pole contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity (T)AL9 to 40 (RT) 3 and 4-pole contactors

EAC Certificate:

EAC_RU C-FR ME77 B01010

GOST Certificate:

GOST_POCCFRME77B07175

LOVAG Certificate:

LOVAG Certificate for TAL9-30-10 contactor

UL Certificate:

UL Certificate of Compliance A/AL/TAL/AE9...16, UA16..(RA) contactors

UL Listing Card:
