Buy Best selling products Industrial Automation Parts

€509,95

Only 1 unit left

Specifications

Model				KV-H1G-DL
Type				Programming support software
Operating System				Windows® 11/10/8 (8.1 included)/7 (SP1 or later)
Available hard disk space				6400 MB or more

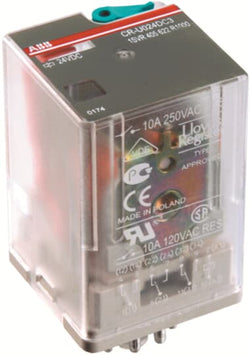

ABB 1SVR405622R1000 ABB - CR-U024DC3

€294,95

Only 1 unit left

Ordering

EAN:

4013614498572

Minimum Order Quantity:

10 piece

Customs Tariff Number:

85364900

Popular Downloads

Data Sheet, Technical Information:

Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers

Instructions and Manuals:

Instructions - CR-M, CR-P, CR-U range

CAD Dimensional Drawing:

Information - 2D and 3D files for CAD systems

EPLAN Data:

EPLAN EDZ CR-U

Dimensions

Product Net Width:

35 mm

Product Net Height:

54.4 mm

Product Net Depth / Length:

35 mm

Product Net Weight:

0.083 kg

Technical

Function:

Pluggable universal interface relay CR-U

Sub-Function:

Relay w/o built in LED

Rated Control Supply Voltage (U_s):

24 V DC

Rated Operational Voltage:

250 V AC

Output:

3 c/o (SPDT) contacts

Output Signal:

250 V / 10 A

Terminal Type:

Pin

Rated Operational Current AC-12 (I_e):

(230 V) 10 A

Rated Operational Current AC-15 (I_e):

(120 V) 3 A

(230 V) 1.5 A

(120 V) 3 A

(230 V) 1.5 A

Rated Operational Current DC-12 (I_e):

(24 V) 10 A

Rated Operational Current DC-13 (I_e):

(24 V) 2 A

(250 V) 0.1 A

(24 V) 2 A

(250 V) 0.1 A

Rated Insulation Voltage (U_i):

250 V

Degree of Protection:

IP40

Mounting Position:

1

Standards:

CAN/CSA C22.2 No.14

IEC/EN 63000

IEC/EN 61810-1

UL 508

CAN/CSA C22.2 No.14

IEC/EN 63000

IEC/EN 61810-1

UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

300 V AC

Contact Rating UL/CSA:

B300

Pilot Duty UL/CSA:

B300

Flammability According to UL94:

HB

Environmental

Ambient Air Temperature:

Operation -40 ... +70 °C

Storage -40 ... +85 °C

Operation -40 ... +70 °C

Storage -40 ... +85 °C

Maximum Operating Altitude Permissible:

Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):

CMRT - Conflict Minerals Reporting Template

RoHS Information:

RoHS Declaration of conformity for Electronic Relays and Controls

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Certificates and Declarations

CCC Certificate:

CCC Certificate - Pluggable interface relays CR-U range

CQC Certificate:

CQC Certificate, Interface Relays, CR-U, Made in Poland

CSA Certificate:

CSA Certificate - Pluggable interface relays CR-P and CR-U

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland

Declaration of Conformity - CE:

EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay

Declaration of Conformity - UKCA:

UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories

EAC Certificate:

EAC_RU_C-DE.ME77.B.00446-19

LR Certificate:

LR Certificate - Pluggable interface relays CR-M and CR-U range

RMRS Certificate:

RMRS_1740019250

UR Certificate:

UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range

VDE Certificate:

VDE Certificate - Pluggable interface relays CR-U range

Container Information

Package Level 1 Units:

box 10 piece

Package Level 1 Width:

182 mm

Package Level 1 Depth / Length:

77 mm

Package Level 1 Height:

76 mm

Package Level 1 Gross Weight:

0.87 kg

Package Level 1 EAN:

4013614374197

External Classifications and Standards

Object Classification Code:

K

ETIM 7:

EC001437 - Switching relay

ETIM 8:

EC001437 - Switching relay

ETIM 9:

EC001437 - Switching relay

eClass:

V11.0 : 27371601

UNSPSC:

39122331

E-Number (Finland):

2712769

E-Number (Norway):

4187465

E-Number (Sweden):

4005422

Schneider A9N18372 Schneider Electric

€350,95

Only 1 unit left

C120N - circuit breaker - 4P - 80A - C curve

Honeywell R7351A1064 Honeywell

€631,95

Only 2 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

Schneider BMI0703P17A Schneider

€1.485,95

Only 1 unit left

Main

Characteristic	Value(s)
Range Compatibility	Lexium 32i
Device short name	BMI
Product or Component Type	Servo motor with power stage

Complementary

Characteristic	Value(s)
Maximum mechanical speed	8000 rpm
[Us] rated supply voltage	208...480 V - 15...10 %
Supply voltage limits	208â¦480 V
Phase	Three phase
Supply frequency	50/60 Hz - 5...5 %
Network frequency limits	47.5â¦63 Hz
EMC filter	Integrated
Continuous output current	2 A 8 kHz
Output current 3s peak	6 A 400 V 3 s
Continuous stall current	2 A
Continuous stall torque	30.09 lbf.in (3.4 N.m) 208...480 V three phase
Peak stall torque	76.1 lbf.in (8.6 N.m) 208 V three phase 76.1 lbf.in (8.6 N.m) 400 V three phase 76.1 lbf.in (8.6 N.m) 480 V three phase
Nominal output power	900 W 400 V three phase 900 W 480 V three phase 450 W 208 V three phase
Nominal torque	25.7 lbf.in (2.9 N.m) 208 V three phase 23.9 lbf.in (2.7 N.m) 400 V three phase 20.4 lbf.in (2.3 N.m) 480 V three phase
Nominal speed	3300 rpm 400 V three phase 1600 rpm 208 V three phase 3900 rpm 480 V three phase
Maximum current Irms	12.5 A 400 V, three phase 12.5 A 480 V, three phase 12.5 A 208 V, three phase
Product compatibility	Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT
Shaft end	Keyed
Second shaft	Without second shaft end
Shaft diameter	0.6 in (14 mm)
Shaft length	1.2 in (30 mm)
key width	0.2 in (5 mm)
Feedback type	Absolute multiturn SinCos Hiperface
Speed feedback resolution	32768 points/turn x 4096 turns
Holding brake	Without
Mounting Support	International standard flange
Motor flange size	2.8 in (70 mm)
Electrical Connection	Printed circuit board connector
Torque constant	1.41 N.m/A 68 Â°F (20 Â°C)
Back emf constant	95.39 V/krpm 68 Â°F (20 Â°C)
Number of motor poles	10
Rotor inertia	1.67 kg.cmÂ²
Stator resistance	7.99 Ohm 68 Â°F (20 Â°C)
Stator inductance	25.6 mH 68 Â°F (20 Â°C)
Stator electrical time constant	3.2 ms 68 Â°F (20 Â°C)
Maximum radial force Fr	730 N 1000 rpm 580 N 2000 rpm 510 N 3000 rpm 460 N 4000 rpm 430 N 5000 rpm 400 N 6000 rpm
Maximum axial force Fa	0.2 x Fr
type of cooling	Natural convection
Length	11.8 in (300 mm)
Number of motor stacks	3
Centring collar diameter	2.4 in (60 mm)
centring collar depth	0.10 in (2.5 mm)
Number of mounting holes	4
Mounting holes diameter	0.2 in (5.5 mm)
Circle diameter of the mounting holes	3.0â¦3.2 in (75â¦82 mm)
Distance shaft shoulder-flange	0.10 in (2.5 mm)

Honeywell MCBA14201D Honeywell

€493,95

Only 3 units left

Buy the Honeywell MCBA14201D - a genuine Honeywell industrial automation component engineered for reliable performance in demanding manufacturing and process control environments. The Honeywell MCBA14201D is a direct drop-in replacement for existing installations and ships ready for integration.

Yaskawa CIMR-AC2A0110AAA Yaskawa

€4.005,95

Only 1 unit left

The CIMRAC2A0110AAA is a high-performance three-phase inverter from the A1000 line, engineered for 200V applications. With a nominal current of 110 A and a power output of 30 kW, it is also capable of handling heavy-duty tasks at 85 A and 22 kW. This unit features an IP00 enclosure, ensuring it meets the demands of diverse industrial environments with robust efficiency and reliability.

Yaskawa CM093 Yaskawa

€319,95

Only 1 unit left

The CM093 Ethernet/IP Option Kit stands as a pivotal enhancement for servo systems, offering advanced Ethernet/IP connectivity that facilitates superior communication and management across networked devices. It serves as an integral servo add-on module/board, engineered to extend the functionality and interoperability of servo products within diverse automation setups. This module is crafted to meet the rigorous needs of contemporary industrial applications, ensuring reliable and efficient performance.

Yaskawa SGDM-30ADAY97 Yaskawa

€1.212,95

Only 1 unit left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

Schneider AS-BDEP-296 Schneider

€499,95

Only 2 units left

INPUT MODULE DISCRETE

Rexroth R900494175 Rexroth

€1.085,95

Only 5 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

Rexroth R167530331 Rexroth

€998,95

Only 5 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

Rexroth MSK133B-0203-FN-S3-EB0-NPNN Rexroth

€15.348,95

Only 3 units left

Buy the Bosch Rexroth MSK133B-0203-FN-S3-EB0-NPNN Servo Motor - a precision brushless servo motor engineered for high-performance industrial motion control. Features high torque density, precision encoder feedback, low cogging, and robust construction for continuous-duty applications. The Bosch Rexroth MSK133B-0203-FN-S3-EB0-NPNN is ideal for CNC machines, robotics, packaging, and automated manufacturing. Direct drop-in replacement for existing installations.

Yaskawa SGDM-04ADA-RY1 Yaskawa

€2.829,95

Only 3 units left

Buy the Yaskawa SGDM-04ADA-RY1 - a genuine Yaskawa industrial automation component engineered for reliable performance in demanding manufacturing and process control environments. The Yaskawa SGDM-04ADA-RY1 is a direct drop-in replacement for existing installations and ships ready for integration.
