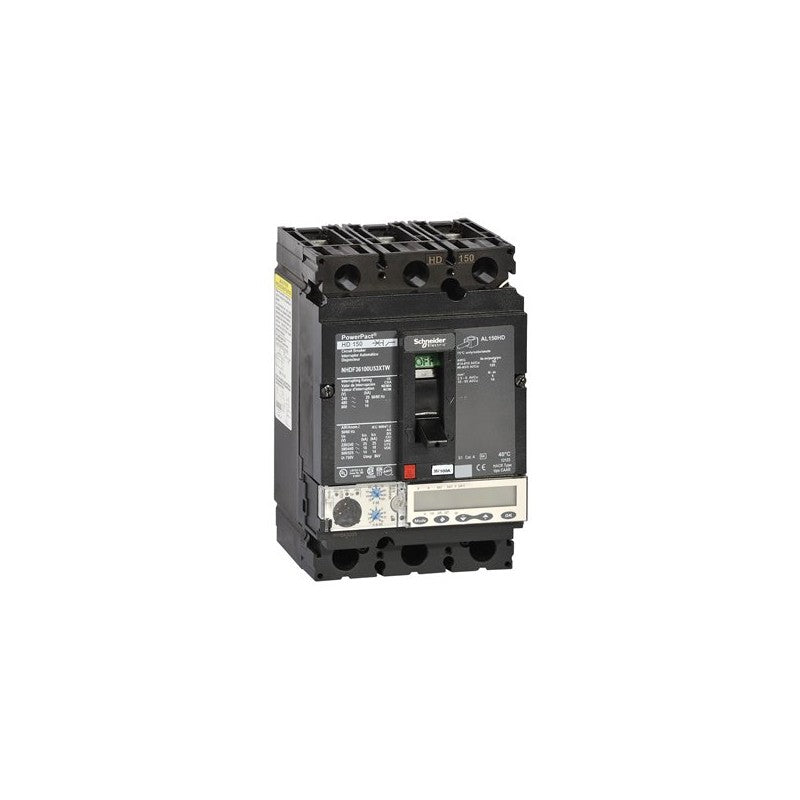

Main
| Characteristic | Value(s) |
|---|---|
| Range of product | PowerPact multistandard |
| Range | PowerPact |
| product name | H-Frame |
| Device short name | H-Frame |
| Product or component type | Circuit breaker |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| Poles description | 3P |
| control type | Toggle |
| Mounting mode | Unit mount |
| Mounting support | DIN rail Backplate Flush |
| Electrical connection | Terminal nut, line side Terminal nut, load side |
| [In] rated current | 60 A at 40 °C |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 525 V AC 50/60 Hz conforming to IEC 60947-2 690 V AC 50/60 Hz conforming to IEC 947-2 600 V AC 50/60 Hz conforming to UL 489 |
| Breaking capacity code | HG |
| Suitability for isolation | Yes |
| Utilisation category | Category A |
| Mechanical durability | 4000 cycles |
| Electrical durability | 4000 cycles |
| Connection pitch | 45 mm |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Trip unit name | MicroLogic 3.0 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LI |
| Trip unit rating | 60 A |
| Thermal memory | 20 mn |
| Display type | 3 LEDs |
| Breaking capacity | Icu: 65 kA at 220/240 V - AC conforming to IEC 947-2 Icu: 35 kA at 380/415 V - AC conforming to IEC 947-2 Icu: 35 kA at 440/480 V - AC conforming to IEC 947-2 Icu: 18 kA at 500/525 V - AC conforming to IEC 947-2 65 kA at 240 V - AC conforming to UL 489 35 kA at 480 V - AC conforming to UL 489 18 kA at 600 V - AC conforming to UL 489 |
| [Ics] rated service breaking capacity | Ics: 65 kA at 220/240 V - AC conforming to IEC 947-2 Ics: 35 kA at 380/415 V - AC conforming to IEC 947-2 Ics: 35 kA at 440/480 V - AC conforming to IEC 947-2 Ics: 18 kA at 500/525 V - AC conforming to IEC 947-2 |
| Long time pick-up adjustment type Ir | Adjustable 9 settings |
| Long time pick-up adjustment range | 0.25...1 x In |
| [tr] long-time delay adjustment range | 16 s 1 s 2 s 4 s 8 s 0.5 s |
| Instantaneous pick-up adjustment type Ii | Adjustable 9 settings |
| Instantaneous pick-up adjustment range | 1.5...15 x In |
| Overvoltage category | II |
| Provision for padlocking | Non padlockable |
| Height | 163 mm |
| Width | 104 mm |
| Depth | 86 mm |
| Standards | UL 489 IEC 60947-2 NMX J-266 CSA C22.2 No 5 W-C-375B/GEN NEMA AB1 |
| Product certifications | CCC CE |
| Product weight | 2.2 kg |
