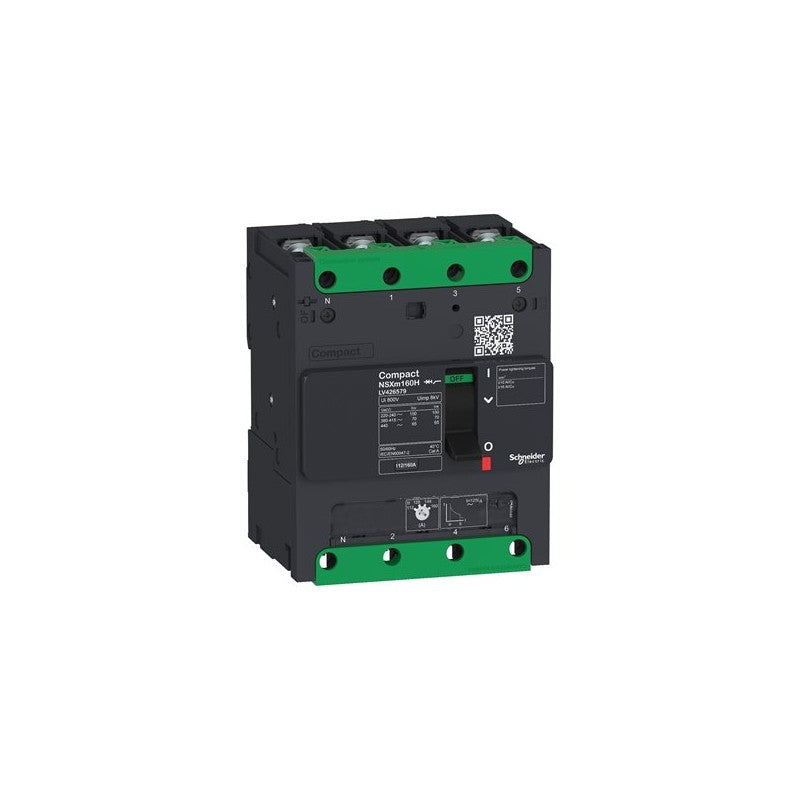

It is a Compact NSXm molded case circuit breaker, 40A, 70kA at 415VAC, for all LV standard applications. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. Compact NSXm is one of the smallest MCCB on the market, 108mm (W) x 137mm (H) x 80mm (D). This is a 4 poles version with an embedded thermal-magnetic trip unit. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Range of product | ComPact NSXm |
| Device short name | NSXm 40H |
| Product or component type | Circuit breaker |
| Device application | Distribution Protection |
| Number of poles | 4P |
| Protected poles description | 4D |
| Neutral position | Left |
| [In] rated current | 40 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | H 70 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| control type | Toggle |
| Circuit breaker mounting mode | By screws Clip-on |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles at 440 V In 20000 cycles at 440 V In/2 5000 cycles at 690 V In 10000 cycles at 690 V In/2 |
| Mounting support | Plate DIN rail |
| Connection terminals | compression lug/busbar |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 module |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [Im] magnetic protection pick-up range | 600 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Width (W) | 108 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| Product weight | 1.42 kg |
| Colour | Grey (RAL 7016) |
circuit breaker Compact NSXm H (70 kA at 415 VAC), 4P 4d, 50 A rating TMD trip unit, compression lugs and busbar connectors
circuit breaker Compact NSXm H (70 kA at 415 VAC), 4P 4d, 63 A rating TMD trip unit, compression lugs and busbar connectors
circuit breaker Compact NSXm H (70 kA at 415 VAC), 4P 4d, 80 A rating TMD trip unit, compression lugs and busbar connectors
circuit breaker Compact NSXm H (70 kA at 415 VAC), 4P 4d, 100 A rating TMD trip unit, compression lugs and busbar connectors
circuit breaker Compact NSXm H (70 kA at 415 VAC), 4P 4d, 125 A rating TMD trip unit, compression lugs and busbar connectors
circuit breaker Compact NSXm H (70 kA at 415 VAC), 4P 4d, 160 A rating TMD trip unit, compression lugs and busbar connectors
switch disconnector Compact NSXm NA, 3P, 50 A rating, EverLink connectors
switch disconnector Compact NSXm NA, 3P, 100A rating, EverLink connectors

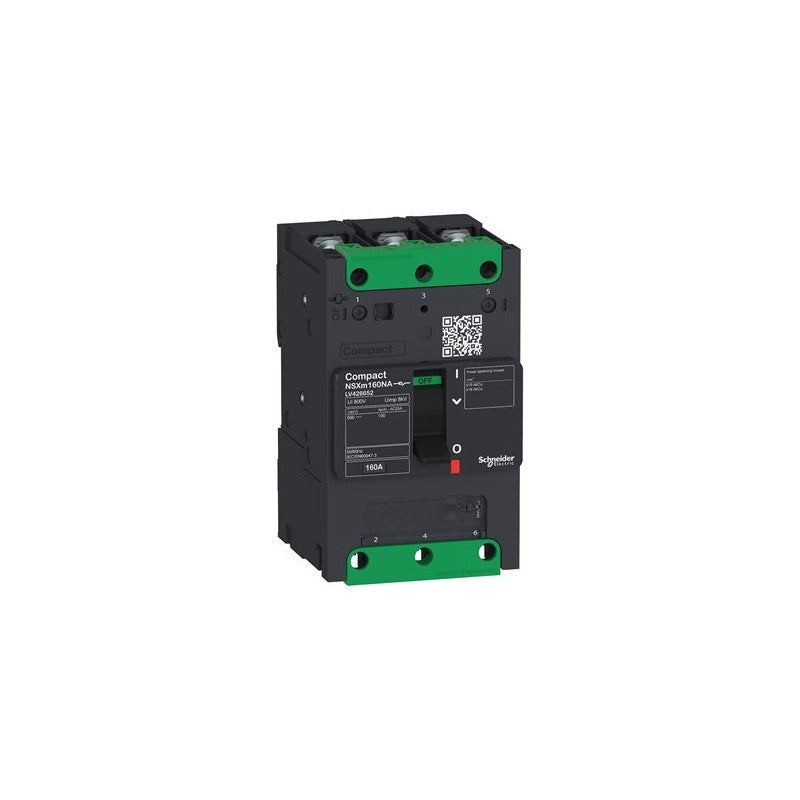

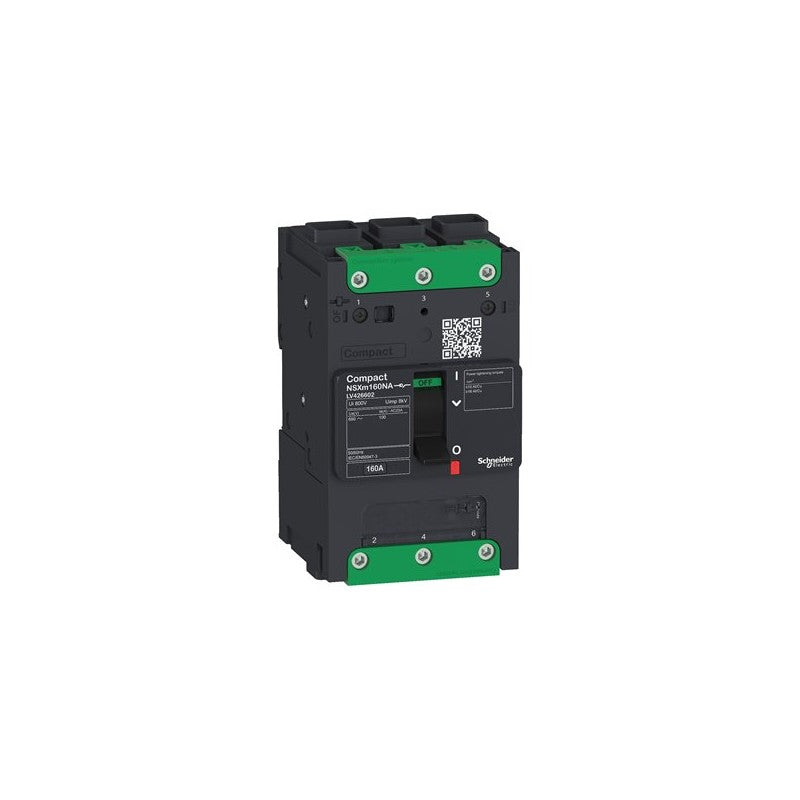

It is a Compact NSXm NA 160A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 3 poles version is compatible with Compact NSXm circuit breakers accessories and auxiliaries. Compact NSXm NA has the same footprint as Compact NSXm circuit breakers, 81mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Product or component type | Switch disconnector |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 160 A |
| Poles description | 3P |
| control type | Toggle |
| Mounting mode | Clip-on (35 mm symmetrical DIN rail) By screws (plate) |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | 100 A - utilisation category AC-23 AC 50/60 Hz 160 A - utilisation category AC-22 AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 1.5 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 2.13 kA |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles conforming to IEC 947-1 Annex K ed 5.2 In |
| Electrical durability | 10000 cycles conforming to IEC 947-1 Annex F ed 5.2 for In at 440 V |
| Contact position indicator | Yes |
| Connection pitch | 27 mm 35 mm with spreaders |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Toggle padlocking (with accessories) | Padlock in OFF or ON position |
| Connections - terminals | 1 Everlink lug wire size 2.5â¦95 mm², rigid or stranded copper 1 Everlink lug wire size 2.5â¦70 mm², flexible copper |
| Tightening torque | 5 N.m for 2.5â¦10 mm² 9 N.m for 16â¦95 mm² |
| Number of slots | 1 slot(s) for auxiliary switch OF (plug-in) 1 slot(s) for alarm switch SD (plug-in) 1 slot(s) for voltage release MN or MX (plug-in) |
| Power wire stripping length | 20 mm |
| Quality labels | CE |
| Standards | EN/IEC 60947 |
| Colour | Grey (RAL 7016) |
| Operating altitude | 2000 m without derating 5000 m with derating |
| 9 mm pitches | 9 |
| Height | 137 mm |
| Width | 81 mm |
| Depth | 80 mm |
| Product weight | 1.06 kg |
| Quantity per set | Set of 1 |
switch disconnector Compact NSXm NA, 4P, 50A rating, EverLink connectors
It is a Compact NSXm NA 100A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 4 poles version is compatible with Compact NSXm circuit breakers accessories and auxiliaries. Compact NSXm NA has the same footprint as Compact NSXm circuit breakers, 108mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Product or component type | Switch disconnector |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 100 A |
| Poles description | 4P |
| Neutral position | Left |
| control type | Toggle |
| Mounting mode | Clip-on (35 mm symmetrical DIN rail) By screws (plate) |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | 100 A - utilisation category AC-23 AC 50/60 Hz 100 A - utilisation category AC-22 AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 1.5 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 2.13 kA |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles conforming to IEC 947-1 Annex K ed 5.2 In |
| Electrical durability | 10000 cycles conforming to IEC 947-1 Annex F ed 5.2 for In at 440 V |
| Contact position indicator | Yes |
| Connection pitch | 27 mm 35 mm with spreaders |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Toggle padlocking (with accessories) | Padlock in OFF or ON position |
| Connections - terminals | 1 Everlink lug wire size 2.5â¦70 mm², flexible copper 1 Everlink lug wire size 2.5â¦95 mm², rigid or stranded aluminium/copper |
| Tightening torque | 5 N.m for 2.5â¦10 mm² 9 N.m for 16â¦95 mm² |
| Number of slots | 1 slot(s) for auxiliary switch OF (plug-in) 1 slot(s) for alarm switch SD (plug-in) 1 slot(s) for voltage release MN or MX (plug-in) |
| Power wire stripping length | 20 mm |
| Quality labels | CE |
| Standards | EN/IEC 60947 |
| Colour | Grey (RAL 7016) |
| Operating altitude | 2000 m without derating 5000 m with derating |
| 9 mm pitches | 12 |
| Height | 137 mm |
| Width | 108 mm |
| Depth | 80 mm |
| Product weight | 1.42 kg |
| Quantity per set | Set of 1 |

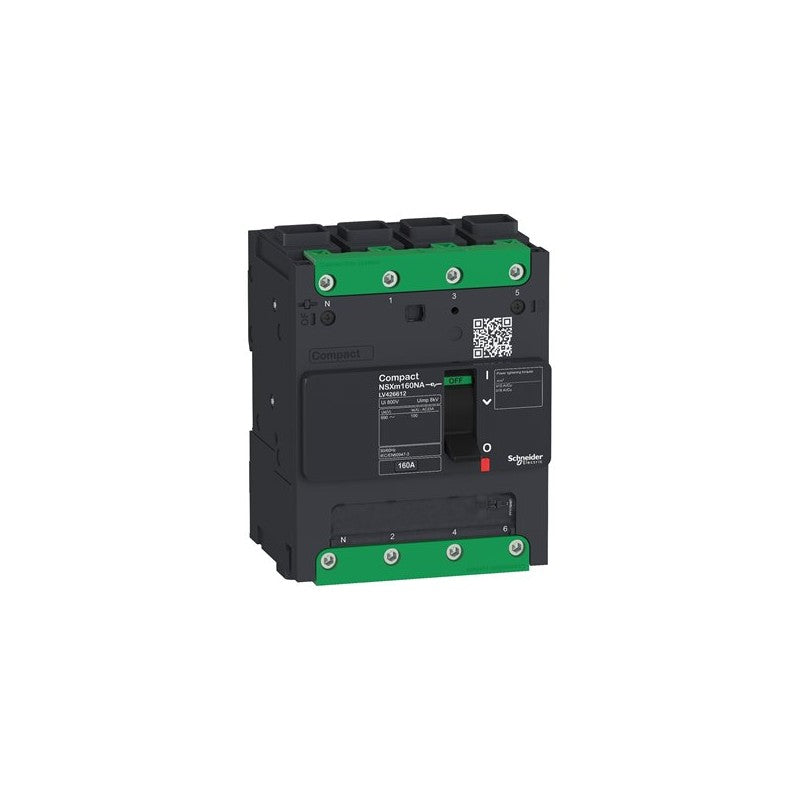

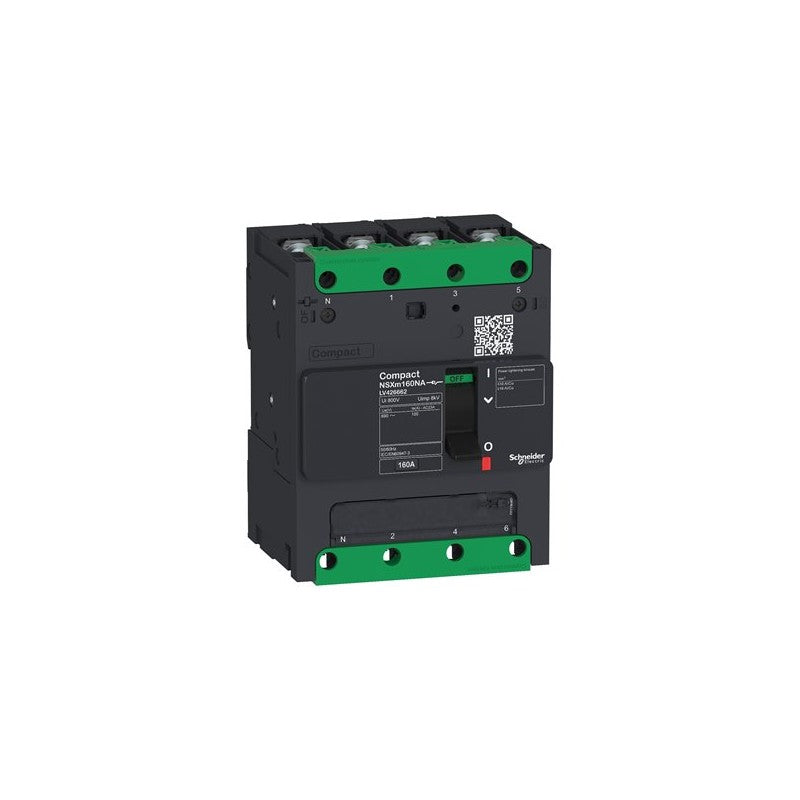

It is a Compact NSXm NA 160A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 4 poles version is compatible with Compact NSXm circuit breakers accessories and auxiliaries. Compact NSXm NA has the same footprint as Compact NSXm circuit breakers, 108mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Product or component type | Switch disconnector |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 160 A |
| Poles description | 4P |
| Neutral position | Left |
| control type | Toggle |
| Mounting mode | Clip-on (35 mm symmetrical DIN rail) By screws (plate) |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | 100 A - utilisation category AC-23 AC 50/60 Hz 160 A - utilisation category AC-22 AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 1.5 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 2.13 kA |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles conforming to IEC 947-1 Annex K ed 5.2 In |
| Electrical durability | 10000 cycles conforming to IEC 947-1 Annex F ed 5.2 for In at 440 V |
| Contact position indicator | Yes |
| Connection pitch | 27 mm 35 mm with spreaders |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Toggle padlocking (with accessories) | Padlock in OFF or ON position |
| Connections - terminals | 1 Everlink lug wire size 2.5â¦95 mm², rigid or stranded copper 1 Everlink lug wire size 2.5â¦70 mm², flexible copper |
| Tightening torque | 5 N.m for 2.5â¦10 mm² 9 N.m for 16â¦95 mm² |
| Number of slots | 1 slot(s) for auxiliary switch OF (plug-in) 1 slot(s) for alarm switch SD (plug-in) 1 slot(s) for voltage release MN or MX (plug-in) |
| Power wire stripping length | 20 mm |
| Quality labels | CE |
| Standards | EN/IEC 60947 |
| Colour | Grey (RAL 7016) |
| Operating altitude | 2000 m without derating 5000 m with derating |
| 9 mm pitches | 12 |
| Height | 137 mm |
| Width | 108 mm |
| Depth | 80 mm |
| Product weight | 1.42 kg |
| Quantity per set | Set of 1 |
It is a Compact NSXm NA 50A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 3 poles version is compatible with Compact NSXm circuit breakers accessories and auxiliaries. Compact NSXm NA has the same footprint as Compact NSXm circuit breakers, 81mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Product or component type | Switch disconnector |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 50 A |
| Poles description | 3P |
| control type | Toggle |
| Mounting mode | Clip-on (35 mm symmetrical DIN rail) By screws (plate) |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | 50 A - utilisation category AC-23 AC 50/60 Hz 50 A - utilisation category AC-22 AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 0.9 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 1.28 kA |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles conforming to IEC 947-1 Annex K ed 5.2 In |
| Electrical durability | 10000 cycles conforming to IEC 947-1 Annex F ed 5.2 for In at 440 V |
| Contact position indicator | Yes |
| Connection pitch | 27 mm 35 mm with spreaders |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Toggle padlocking (with accessories) | Padlock in OFF or ON position |
| Connections - terminals | compression lug/busbar |
| Tightening torque | 5 N.m for 2.5â¦10 mm² 9 N.m for 16â¦95 mm² |
| Thread type | M6 |
| Number of slots | 1 slot(s) for auxiliary switch OF (plug-in) 1 slot(s) for alarm switch SD (plug-in) 1 slot(s) for voltage release MN or MX (plug-in) |
| Thickness | 8 mm |
| Power wire stripping length | 20 mm |
| Quality labels | CE |
| Standards | EN/IEC 60947 |
| Colour | Grey (RAL 7016) |
| Operating altitude | 2000 m without derating 5000 m with derating |
| 9 mm pitches | 9 |
| Height | 137 mm |
| Width | 81 mm |
| Depth | 80 mm |
| Product weight | 1.06 kg |
| Quantity per set | Set of 1 |
It is a Compact NSXm NA 100A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 3 poles version is compatible with Compact NSXm circuit breakers accessories and auxiliaries. Compact NSXm NA has the same footprint as Compact NSXm circuit breakers, 81mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Product or component type | Switch disconnector |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 100 A |
| Poles description | 3P |
| control type | Toggle |
| Mounting mode | Clip-on (35 mm symmetrical DIN rail) By screws (plate) |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | 100 A - utilisation category AC-23 AC 50/60 Hz 100 A - utilisation category AC-22 AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 1.5 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 2.13 kA |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles conforming to IEC 947-1 Annex K ed 5.2 In |
| Electrical durability | 10000 cycles conforming to IEC 947-1 Annex F ed 5.2 for In at 440 V |
| Contact position indicator | Yes |
| Connection pitch | 27 mm 35 mm with spreaders |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Toggle padlocking (with accessories) | Padlock in OFF or ON position |
| Connections - terminals | compression lug/busbar |
| Tightening torque | 5 N.m for 2.5â¦10 mm² 9 N.m for 16â¦95 mm² |
| Thread type | M6 |
| Number of slots | 1 slot(s) for auxiliary switch OF (plug-in) 1 slot(s) for alarm switch SD (plug-in) 1 slot(s) for voltage release MN or MX (plug-in) |
| Thickness | 8 mm |
| Power wire stripping length | 20 mm |
| Quality labels | CE |
| Standards | EN/IEC 60947 |
| Colour | Grey (RAL 7016) |
| Operating altitude | 2000 m without derating 5000 m with derating |
| 9 mm pitches | 9 |
| Height | 137 mm |
| Width | 81 mm |
| Depth | 80 mm |
| Product weight | 1.06 kg |
| Quantity per set | Set of 1 |
switch disconnector Compact NSXm NA, 3P, 160A rating, compression lugs and busbar connectors
switch disconnector Compact NSXm NA, 4P, 50A rating, compression lugs and busbar connectors
It is a Compact NSXm NA 100A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 4 poles version is compatible with Compact NSXm circuit breakers accessories and auxiliaries. Compact NSXm NA has the same footprint as Compact NSXm circuit breakers, 108mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Product or component type | Switch disconnector |
| Device application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 100 A |
| Poles description | 4P |
| Neutral position | Left |
| control type | Toggle |
| Mounting mode | Clip-on (35 mm symmetrical DIN rail) By screws (plate) |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | 100 A - utilisation category AC-23 AC 50/60 Hz 100 A - utilisation category AC-22 AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 1.5 kA during 3 s conforming to IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 2.13 kA |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles conforming to IEC 947-1 Annex K ed 5.2 In |
| Electrical durability | 10000 cycles conforming to IEC 947-1 Annex F ed 5.2 for In at 440 V |
| Contact position indicator | Yes |
| Connection pitch | 27 mm 35 mm with spreaders |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Toggle padlocking (with accessories) | Padlock in OFF or ON position |
| Connections - terminals | compression lug/busbar |
| Tightening torque | 5 N.m for 2.5â¦10 mm² 9 N.m for 16â¦95 mm² |
| Thread type | M6 |
| Number of slots | 1 slot(s) for auxiliary switch OF (plug-in) 1 slot(s) for alarm switch SD (plug-in) 1 slot(s) for voltage release MN or MX (plug-in) |
| Thickness | 8 mm |
| Power wire stripping length | 20 mm |
| Quality labels | CE |
| Standards | EN/IEC 60947 |
| Colour | Grey (RAL 7016) |
| Operating altitude | 2000 m without derating 5000 m with derating |
| 9 mm pitches | 12 |
| Height | 137 mm |
| Width | 108 mm |
| Depth | 80 mm |
| Product weight | 1.42 kg |
| Quantity per set | Set of 1 |
switch disconnector Compact NSXm NA, 3P, 160A rating, compression lugs and busbar connectors

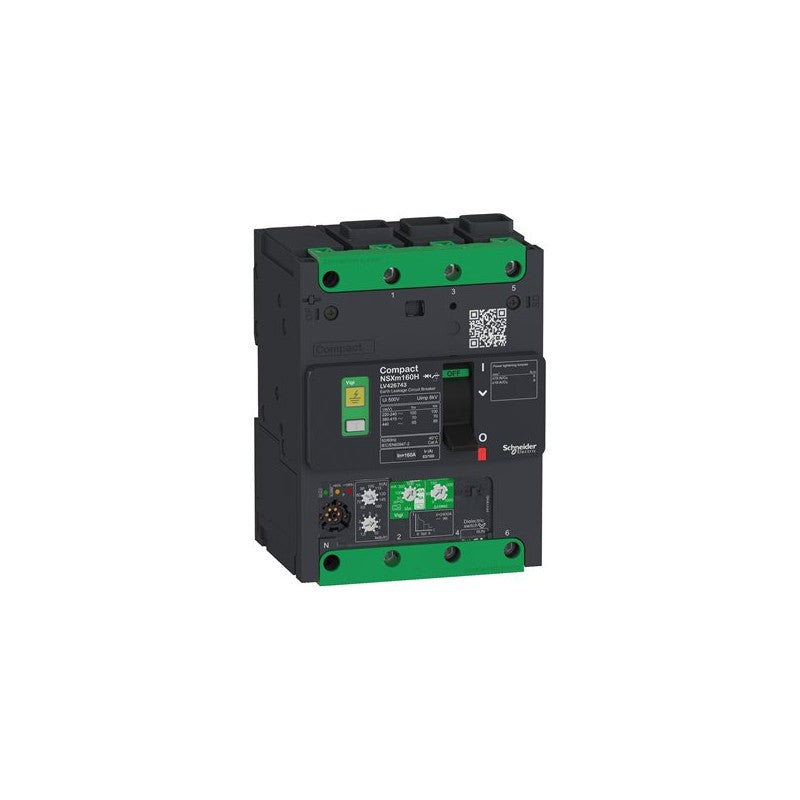

It is a Compact NSXm earth leakage circuit breaker with Micrologic Vigi 4.1 trip unit, 25A, 16kA at 415VAC. It is designed for all LV standard applications. It provides an embedded earth leakage protection for distribution systems supplied by transformers. It introduces new features like Everlink connectors technology. It offers built-in DIN rail & plate mounting capability and spring type auxiliaries externally visible. This 3 poles Earth Leakage Circuit Breaker (ELCB) is one of the smallest on the market. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Range of product | ComPact NSXm |
| Device short name | NSXm 25E |
| Product or component type | Earth leakage circuit breaker |
| Device application | Distribution Protection |
| Number of poles | 3P |
| Protected poles description | 3D |
| [In] rated current | 25 A at 40 °C |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | E 16 kA 415 V AC |
| Trip unit name | MicroLogic 4.1 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoIR |
| control type | Toggle |
| Circuit breaker mounting mode | By screws Clip-on |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles at 440 V In 20000 cycles at 440 V In/2 |
| Mounting support | Plate DIN rail |
| Connection terminals | 1 Everlink lug wire size 2.5â¦70 mm², fine stranded copper 1 Everlink lug wire size 2.5â¦95 mm², rigid or stranded aluminium/copper |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 9 module |
| Protection type | L : for overload protection (thermal) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection R : for earth-leakage protection |
| Trip unit rating | 25 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 10...25 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 5 s at 7.2 x Ir 8 s at 6 x Ir 200 s at 1.5 x Ir |
| Thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| [tsd] Short-time protection delay adjustment range | 0.02 s |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 375 A |
| Earth-leakage protection | Integrated |
| Earth-leakage protection sensitity adjustment type IÎn | Adjustable |
| [IÎn] earth-leakage protection sensitivity adjustment range | 0.03â¦5 A |
| Earth-leakage sensitivity | 30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1000 mA for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1000 mA for class AC 3000 mA for class AC 5000 mA for class AC |
| Earth-leakage protection time delay adjustement type Ît | Adjustable |
| [Ît] Earth-leakage protection time delay adjustment range | 0 ms 60 ms 150 ms 500 ms 1000 ms |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Width (W) | 108 mm |
| Height (H) | 144 mm |
| Depth (D) | 80 mm |
| Product weight | 1.63 kg |
| Colour | Grey (RAL 7016) |
circuit breaker Compact NSXm E (16 kA at 415 VAC), 3P, 50 A rating Micrologic Vigi 4.1 trip unit, EverLink connectors
circuit breaker Compact NSXm E (16 kA at 415 VAC), 3P, 100 A rating Micrologic Vigi 4.1 trip unit, EverLink connectors
It is a Compact NSXm earth leakage circuit breaker with Micrologic Vigi 4.1 trip unit, 160A, 16kA at 415VAC. It is designed for all LV standard applications. It provides an embedded earth leakage protection for distribution systems supplied by transformers. It introduces new features like Everlink connectors technology. It offers built-in DIN rail & plate mounting capability and spring type auxiliaries externally visible. This 3 poles Earth Leakage Circuit Breaker (ELCB) is one of the smallest on the market. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Range of product | ComPact NSXm |
| Device short name | NSXm 160E |
| Product or component type | Earth leakage circuit breaker |
| Device application | Distribution Protection |
| Number of poles | 3P |
| Protected poles description | 3D |
| [In] rated current | 160 A at 40 °C |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | E 16 kA 415 V AC |
| Trip unit name | MicroLogic 4.1 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoIR |
| control type | Toggle |
| Circuit breaker mounting mode | By screws Clip-on |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles at 440 V In 20000 cycles at 440 V In/2 |
| Mounting support | Plate DIN rail |
| Connection terminals | 1 Everlink lug wire size 2.5â¦70 mm², fine stranded copper 1 Everlink lug wire size 2.5â¦95 mm², rigid or stranded aluminium/copper |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 9 module |
| Protection type | L : for overload protection (thermal) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection R : for earth-leakage protection |
| Trip unit rating | 160 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 63...160 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 5 s at 7.2 x Ir 8 s at 6 x Ir 200 s at 1.5 x Ir |
| Thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| [tsd] Short-time protection delay adjustment range | 0.02 s |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 2000 A |
| Earth-leakage protection | Integrated |
| Earth-leakage protection sensitity adjustment type IÎn | Adjustable |
| [IÎn] earth-leakage protection sensitivity adjustment range | 0.03â¦5 A |
| Earth-leakage sensitivity | 30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1000 mA for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1000 mA for class AC 3000 mA for class AC 5000 mA for class AC |
| Earth-leakage protection time delay adjustement type Ît | Adjustable |
| [Ît] Earth-leakage protection time delay adjustment range | 0 ms 60 ms 150 ms 500 ms 1000 ms |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Width (W) | 108 mm |
| Height (H) | 144 mm |
| Depth (D) | 80 mm |
| Product weight | 1.63 kg |
| Colour | Grey (RAL 7016) |
It is a Compact NSXm earth leakage circuit breaker with Micrologic Vigi 4.1 trip unit, 25A, 16kA at 415VAC. It is designed for all LV standard applications. It provides an embedded earth leakage protection for distribution systems supplied by transformers. It introduces new features like Everlink connectors technology. It offers built-in DIN rail & plate mounting capability and spring type auxiliaries externally visible. This 4 poles Earth Leakage Circuit Breaker (ELCB) is one of the smallest on the market. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| product name | ComPact NSXm |
| Range of product | ComPact NSXm |
| Device short name | NSXm 25E |
| Product or component type | Earth leakage circuit breaker |
| Device application | Protection Distribution |
| Number of poles | 4P |
| Protected poles description | 4D |
| Neutral position | Left |
| [In] rated current | 25 A at 40 °C |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | E 16 kA 415 V AC |
| Trip unit name | MicroLogic 4.1 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoIR |
| control type | Toggle |
| Circuit breaker mounting mode | By screws Clip-on |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles at 440 V In 20000 cycles at 440 V In/2 |
| Mounting support | Plate DIN rail |
| Connection terminals | 1 Everlink lug wire size 2.5â¦70 mm², fine stranded copper 1 Everlink lug wire size 2.5â¦95 mm², rigid or stranded aluminium/copper |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 module |
| Protection type | L : for overload protection (thermal) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection R : for earth-leakage protection |
| Trip unit rating | 25 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 10...25 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 5 s at 7.2 x Ir 8 s at 6 x Ir 200 s at 1.5 x Ir |
| Thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| [tsd] Short-time protection delay adjustment range | 0.02 s |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 375 A |
| Earth-leakage protection | Integrated |
| Earth-leakage protection sensitity adjustment type IÎn | Adjustable |
| [IÎn] earth-leakage protection sensitivity adjustment range | 0.03â¦5 A |
| Earth-leakage sensitivity | 30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1000 mA for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1000 mA for class AC 3000 mA for class AC 5000 mA for class AC |
| Earth-leakage protection time delay adjustement type Ît | Adjustable |
| [Ît] Earth-leakage protection time delay adjustment range | 0 ms 60 ms 150 ms 500 ms 1000 ms |
| Neutral protection settings | No protection 1 x Ir |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Width (W) | 108 mm |
| Height (H) | 144 mm |
| Depth (D) | 80 mm |
| Product weight | 1.63 kg |
| Colour | Grey (RAL 7016) |
