Quantum

$2,902.15

Only 1 unit left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Processor
Software name	Concept ProWORX 32
Processor name	80186
Mathematical coprocessor	Without

Complementary

Characteristic	Value(s)
Clock frequency	20 MHz
Memory description	Internal RAM 109 kB
Exact time for 1 Kinstruction	0.3...1.4 ms LL984
Watchdog timer	250 ms
Clock drift	+/-8 s/day 32â¦140 Â°F (0â¦60 Â°C)
I/O words	30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote
I/O words/network	500 I/500 O distributed
Drops/network	63 distributed
Number of drops	31 remote
Number of network	2 remote 3 distributed
Battery type	Lithium 5 ÂµA 110 ÂµA
Battery Capacity	1.2 Ah
Battery life	10 year(s)
Number of port	1 Modbus RS232 1 Modbus Plus
Communication module processor capacity	2 NOM, NOE, CR, NMS
Switch Function	Without key switch
Marking	CE
Bus current requirement	780 mA
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

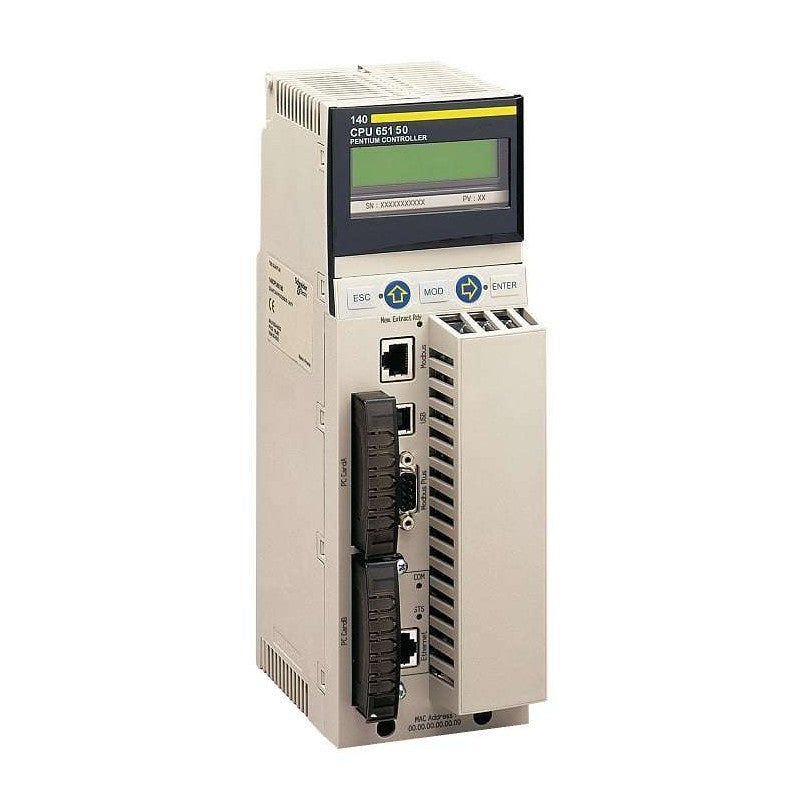

Schneider 140CPU65150C Schneider

$6,576.42

Only 3 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Unity processor

Complementary

Characteristic	Value(s)
Clock frequency	166 MHz
Number of slots	10 4 2 6 16
Number of racks	2 - local
Number of distributed I/O station	63 1 3 Modbus Plus
Number of remote I/O station	31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 16 - 2 ethernet X80 remote I/O
Discrete I/O number	31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Analogue I/O number	500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Application specific I/O	Accurate time stamping High-speed interrupt inputs Serial link Counter
Communication Service	Ethernet router
Number of optional modules	6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections	1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII)
Integrated connection type	1 Modbus Plus 1 Ethernet TCP/IP 1 Modbus 1 USB
Checks	Process control
Memory description	Expandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 768 kB
Switch Function	Key switch memory port on/off
Application structure	1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks -
Number of instructions per ms	10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical
System overhead	0.2 ms fast task 1 ms master task
Bus current requirement	2160 mA
Local signalling	1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision
Electrical connection	1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Ethernet network 1 connector RJ45 for connecting Modbus bus

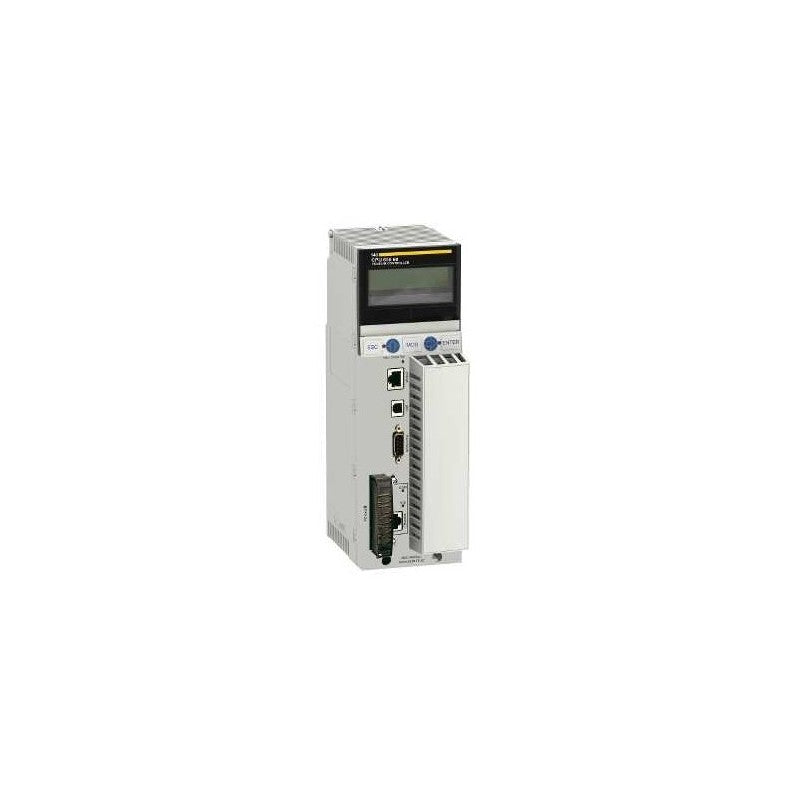

Schneider 140CPU65860 Schneider

$16,030.14

Only 2 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Unity processor

Complementary

Characteristic	Value(s)
Clock frequency	266 MHz
Number of slots	10 16 4 2 6
Number of racks	2 - local
Number of distributed I/O station	63 1 1 Modbus Plus
Number of remote I/O station	31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 31 - 2 ethernet X80 remote I/O
Discrete I/O number	8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O 31744 inputs, 31744 outputs - S908 remote I/O
Analogue I/O number	500 inputs, 500 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O 1984 inputs,1984 outputs - remote
Application specific I/O	Serial link High-speed interrupt inputs Counter Accurate time stamping
Communication Service	Ethernet router
Number of optional modules	6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections	1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII)
Integrated connection type	1 Modbus Plus 1 Ethernet TCP/IP 1 Modbus 1 USB
Checks	Process control
Memory description	Expandable 8 MB - file storage with PCMCIA card Internal RAM 11264 kB - program and data
Switch Function	Key switch memory port on/off
Application structure	1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks -
Number of instructions per ms	10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical
System overhead	0.2 ms fast task 1 ms master task
Bus current requirement	2760 mA
Local signalling	1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision
Electrical connection	1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Ethernet network 1 connector RJ45 for connecting Modbus bus

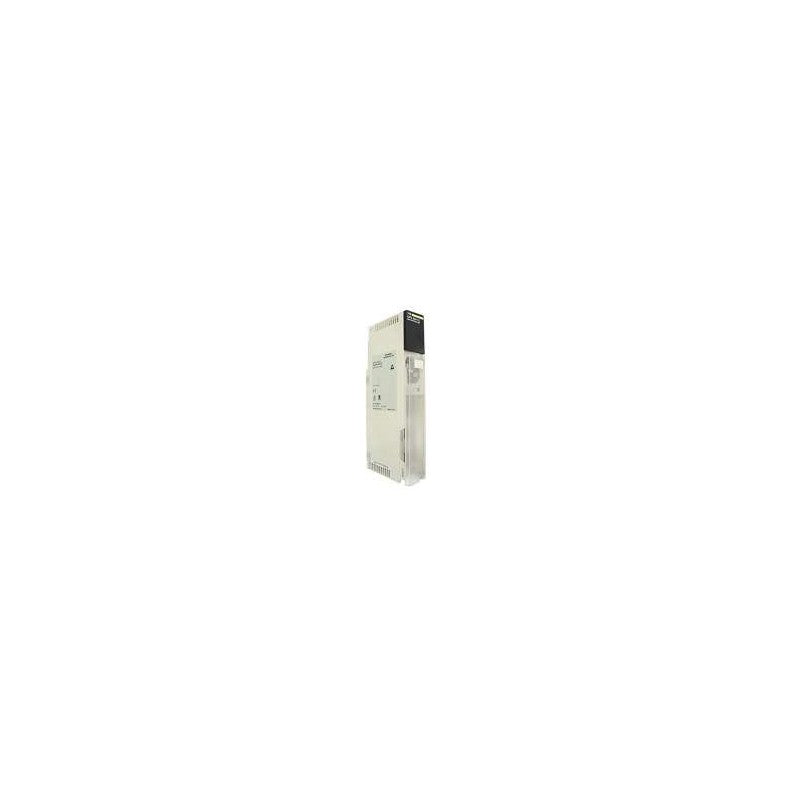

Schneider 140CPU43412U Schneider

$1,524.90

Only 4 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Unity processor

Complementary

Characteristic	Value(s)
Clock frequency	66 MHz
Number of slots	2 4 10 16 6
Number of racks	2 - local
Number of distributed I/O station	63 1 3 Modbus Plus
Number of remote I/O station	31 - 2 S908 remote I/O 0 - 0 ethernet remote I/O
Discrete I/O number	31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local
Analogue I/O number	500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O Unlimited (26 slots max) - local
Application specific I/O	Serial link Counter High-speed interrupt inputs Accurate time stamping
Number of optional modules	6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections	2 AS-Interface - distributed 2 Modbus RS232/485 Modbus/ASCII) 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local
Integrated connection type	1 Modbus Plus 2 Modbus
Checks	Process control
Memory description	Internal RAM 1056 kB
Switch Function	Key switch memory start/stop memory protection Slide switch communication port : ASCII/RTU/Memory
Application structure	1 cyclic/periodic master task - 1 periodic fast task - 16 timer interrupt tasks - 64 I/O interrupt tasks - 64 interrupt tasks - No auxiliary task -
Execution time per instruction	0.1...0.27 Âµs floating points 0.1...0.27 Âµs on fixed-point arithmetic 0.12...0.585 Âµs Boolean 0.12...0.585 Âµs on word
Number of instructions per ms	1.86 Kinst/ms 100 % Boolean 2.49 Kinst/ms 65 % Boolean and 35 % numerical
System overhead	0.2 ms fast task 1 ms master task
Bus current requirement	1800 mA
Local signalling	1 LED (green) for communications are active on the Modbus Plus port (Modbus Plus) 1 LED (green) for communications are active on the Modbus port (Modbus) 1 LED (green) for CPU has been started and is solving logic (RUN) 1 LED (green) for CPU has passed the power-up diagnostic tests (READY) 1 LED (orange) for write-protected memory (memory port) 1 LED (red) for battery needs replacing or is not present (BAT LOW) 1 LED (red) for communications error on the Modbus Plus port (ERROR A)
Electrical connection	1 female connector SUB-D 9 for connecting to the Modbus Plus network 2 female connectors SUB-D 9 for connecting to the Modbus bus

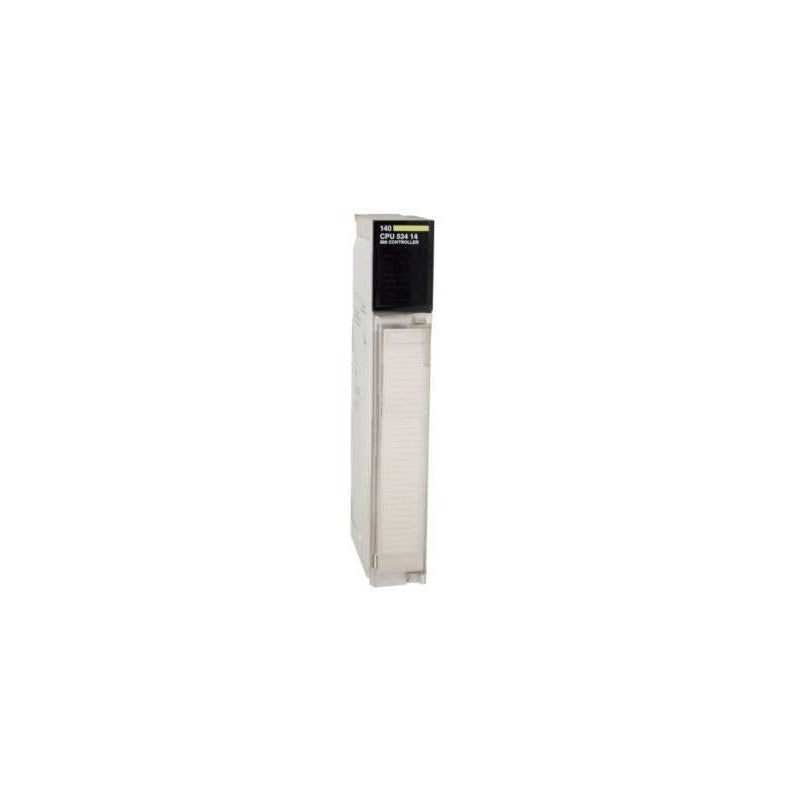

Schneider 140CPU53414 Schneider

$11,029.28

Only 6 units left

Processor 586K 4MEG 1xMB+

Schneider 140CPU65150 Schneider

$3,924.31

In stock, 14 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Unity processor

Complementary

Characteristic	Value(s)
Clock frequency	166 MHz
Number of slots	10 16 6 4 2
Number of racks	2 - local
Number of distributed I/O station	63 1 3 Modbus Plus
Number of remote I/O station	31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 16 - 2 ethernet X80 remote I/O
Discrete I/O number	31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Analogue I/O number	500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Application specific I/O	Accurate time stamping Serial link High-speed interrupt inputs Counter
Communication Service	Ethernet router
Number of optional modules	6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections	1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII)
Integrated connection type	1 Modbus Plus 1 Ethernet TCP/IP 1 Modbus 1 USB
Checks	Process control
Memory description	Expandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 768 kB
Switch Function	Key switch memory port on/off
Application structure	1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks -
Number of instructions per ms	10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical
System overhead	0.2 ms fast task 1 ms master task
Bus current requirement	2160 mA
Local signalling	1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision
Electrical connection	1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Ethernet network 1 connector RJ45 for connecting Modbus bus

Schneider 140CPU53414A Schneider

$1,097.92

Only 8 units left

Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.3 cm Package 1 Width 16.8 cm Package 1 Length 31.7 cm Package 1 Weight 701 g Unit Type of Package 2 S03 Number of Units in Package 2 7 Package 2 Height 30 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 5.377 kg Package 3 Height 30.0 cm Warranty 18 months

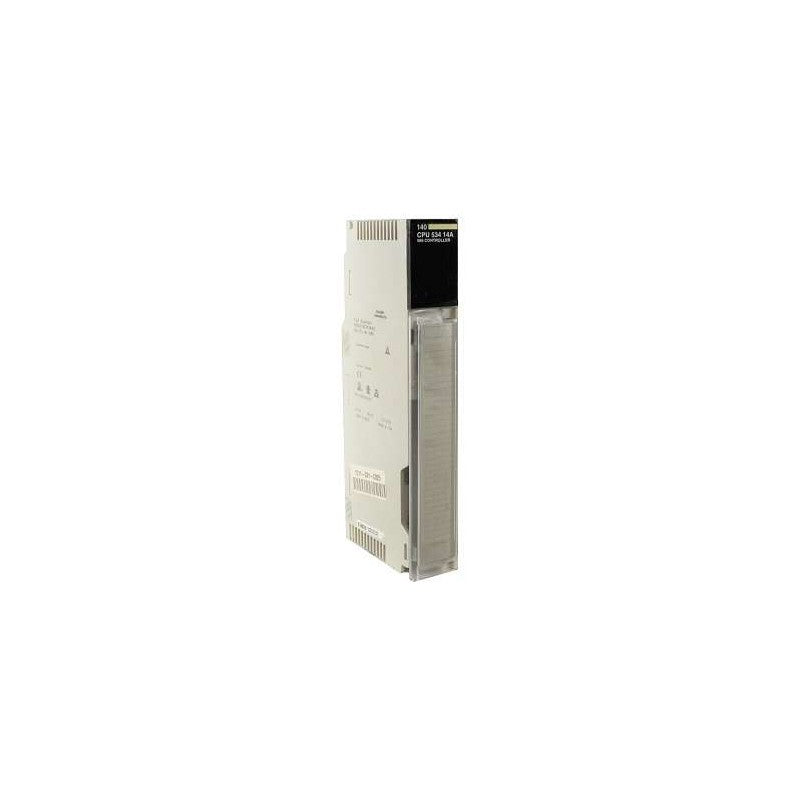

Schneider 140CPU53414AC Schneider

$0.00

Sold Out

Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 4.5 cm Package 1 Width 16 cm Package 1 Length 31.5 cm Package 1 Weight 0.658 kg Unit Type of Package 2 S03 Number of Units in Package 2 8 Package 2 Height 30 cm Package 2 Width 29.9 cm Package 2 Length 39.8 cm Package 2 Weight 5734 g Unit Type of Package 3 S04 Number of Units in Package 3 21 Package 3 Height 30 cm Package 3 Width 39.7 cm Package 3 Length 59.8 cm Package 3 Weight 14578 g

Schneider 140CPU31110C Schneider

$2,816.50

Only 1 unit left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Unity processor

Complementary

Characteristic	Value(s)
Clock frequency	66 MHz
Number of slots	2 16 6 10 4
Number of racks	2 - local
Number of distributed I/O station	63 1 3 Modbus Plus
Number of remote I/O station	31 - 2 S908 remote I/O 0 - 0 ethernet remote I/O
Discrete I/O number	Unlimited (27 slots max) - local 31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Analogue I/O number	Unlimited (27 slots max) - local 500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O
Application specific I/O	Counter Accurate time stamping Serial link High-speed interrupt inputs
Number of optional modules	2 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections	1 USB 2 AS-Interface - distributed 2 Ethernet TCP/IP - local 2 Modbus Plus - local 2 Modbus RS232/485 Modbus/ASCII) 2 Profibus DP - local 4 AS-Interface - remote
Integrated connection type	1 Modbus Plus 2 Modbus
Checks	Process control
Memory description	Internal RAM 548 kB
Switch Function	Slide switch communication port : ASCII/RTU/Memory Slide switch memory port/off
Application structure	1 cyclic/periodic master task - 1 periodic fast task - 16 timer interrupt tasks - 64 I/O interrupt tasks - 64 interrupt tasks - No auxiliary task -
Execution time per instruction	0.1...0.27 Âµs floating points 0.1...0.27 Âµs on fixed-point arithmetic 0.12...0.585 Âµs Boolean 0.12...0.585 Âµs on word
Number of instructions per ms	1.86 Kinst/ms 100 % Boolean 2.49 Kinst/ms 65 % Boolean and 35 % numerical
System overhead	0.2 ms fast task 1 ms master task
Bus current requirement	1800 mA
Local signalling	1 LED (green) for communications are active on the Modbus Plus port (Modbus Plus) 1 LED (green) for communications are active on the Modbus port (Modbus) 1 LED (green) for CPU has been started and is solving logic (RUN) 1 LED (green) for CPU has passed the power-up diagnostic tests (READY) 1 LED (orange) for write-protected memory (memory port) 1 LED (red) for battery needs replacing or is not present (BAT LOW) 1 LED (red) for communications error on the Modbus Plus port (ERROR A)
Electrical connection	1 female connector SUB-D 9 for connecting to the Modbus Plus network 2 female connectors SUB-D 9 for connecting to the Modbus bus

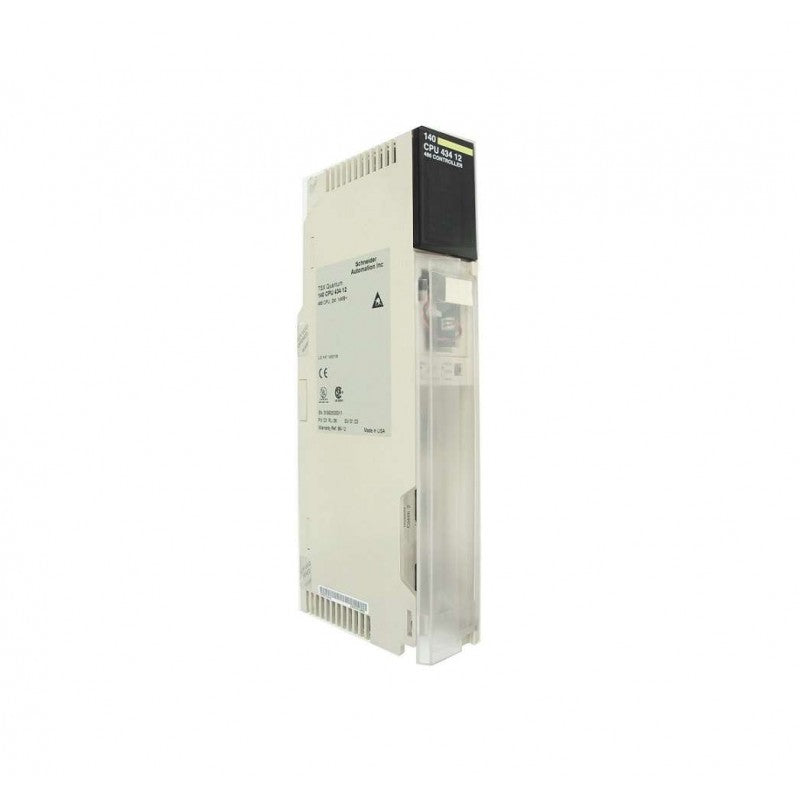

Schneider 140CPU43412UC Schneider

$5,626.98

Only 2 units left

Unity processor Modicon Quantum - 1056 kB - 66 MHz - coated

Schneider 140CPU11303 Schneider

$813.71

In stock, 15 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Processor
Software name	ProWORX 32 Concept
Processor name	80186
Mathematical coprocessor	Without

Complementary

Characteristic	Value(s)
Clock frequency	20 MHz
Memory description	Internal RAM 368 kB
Exact time for 1 Kinstruction	0.3...1.4 ms LL984
Watchdog timer	250 ms
Clock drift	+/-8 s/day 32â¦140 Â°F (0â¦60 Â°C)
I/O words	30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote
I/O words/network	500 I/500 O distributed
Drops/network	63 distributed
Number of drops	31 remote
Number of network	2 remote 3 distributed
Battery type	Lithium 7 ÂµA 210 ÂµA
Battery Capacity	1.2 Ah
Battery life	10 year(s)
Number of port	1 Modbus RS232 1 Modbus Plus
Communication module processor capacity	2 NOM, NOE, CR, NMS
Switch Function	Without key switch
Marking	CE
Bus current requirement	790 mA
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

Schneider 140CPU43412 Schneider

$1,605.27

In stock, 15 units

Modicon Quantum Processor 486K RAM 2MEG 2xMB, 1xMB
