Industrial Communication

$6,487.28

Only 3 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	AS-Interface master module

Complementary

Characteristic	Value(s)
Range Compatibility	AS-Interface cabling system
AS-i version	V1
Actuator sensor interface profile [AS-i]	M2
Addressing	Standard
Maximum cycle time	5 ms
Bus length	0.0000000000â¦328.08 ft (0â¦100 m) without repeater
Discrete input number	124
Discrete output number	124
Number of server device(s)	31
Number of module per PLC	2 per Quantum PLC distributed drop 4 per Quantum PLC local drop 4 per Quantum PLC remote drop
Supply	Via AS-Interface line
[Us] rated supply voltage	30 V DC
AS-i cabling system cycle time	156 x (n + 1) Âµs 31 156 x (n + 2) Âµs
Transmission Rate	167 kbit/s
Reverse polarity protection	Internal
Local signalling	for slave addresses and state of slave I/O bits 32 LEDs
Electrical connection	1 male connector SUB-D 3 pins AS-Interface link
Current Consumption	<= 100 mA
Typical current consumption	60 mA 30 V DC
Marking	CE
Product Weight	0.99 lb(US) (0.45 kg)

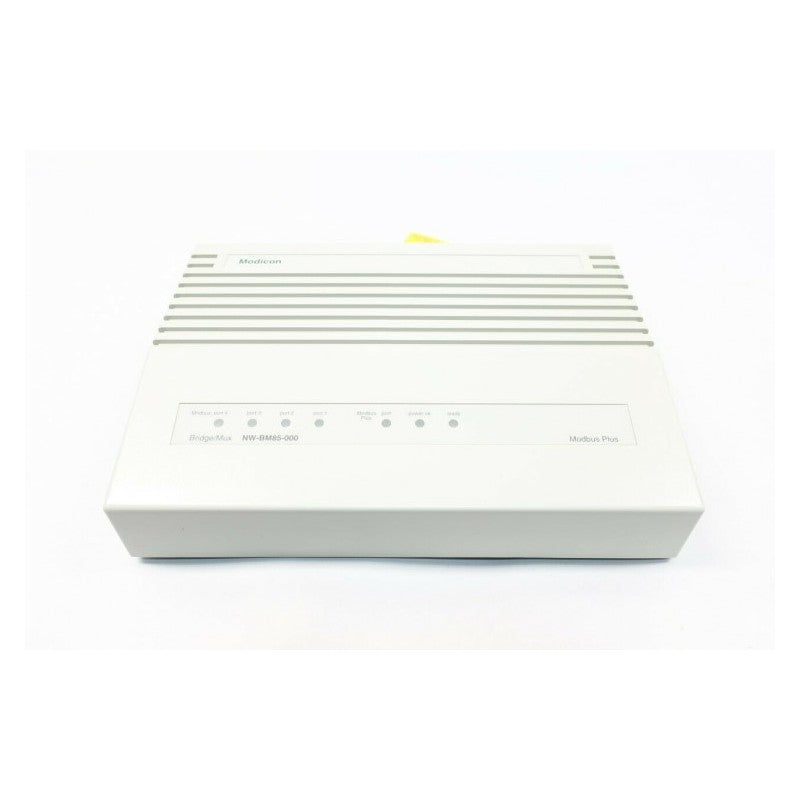

Schneider NW-BM85-000 Schneider

$4,281.08

Only 8 units left

MODBUS PLUS BRIDGE MULTIPLEXER 115/230 VAC

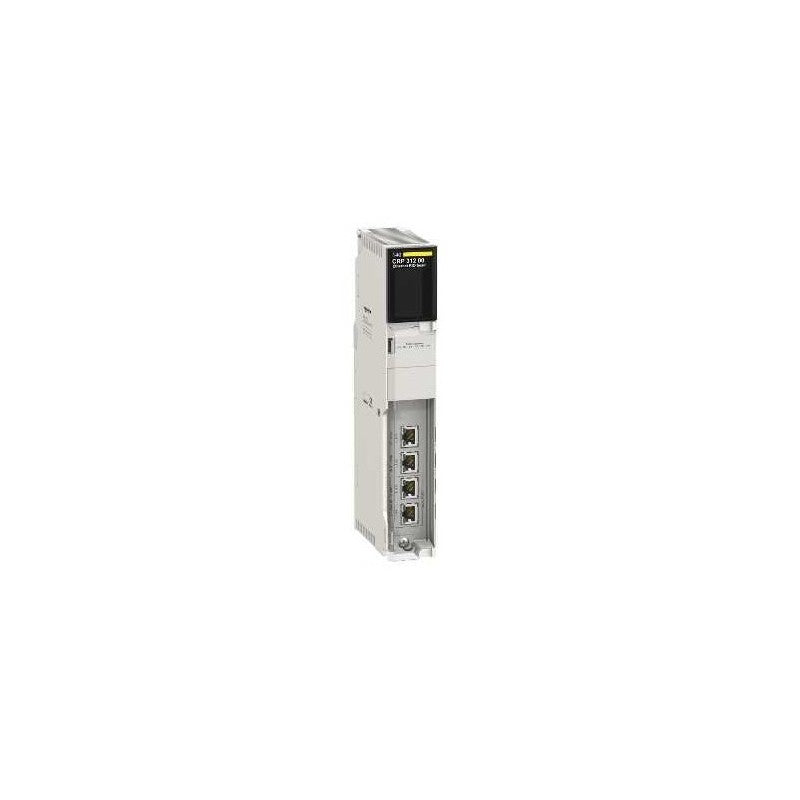

Schneider 140CRP31200 Schneider

$1,461.03

In stock, 17 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum
Product or Component Type	Ethernet RIO head for Quantum
Number of port	4
Integrated connection type	Ethernet IP/Modbus TCP service port Ethernet IP/Modbus TCP interlink port Ethernet IP/Modbus TCP device network
Communication Port Protocol	Ethernet IP/Modbus TCP
Communication Service	Diagnostics for remote I/O devices Configure IP parameters RSTP support Configuration for remote I/O devices Allows PLC to connect to an Ethernet network

Complementary

Characteristic	Value(s)
Topology	Daisy chain loop
Local signalling	1 LED (green) for activity 1 LED (green) for ready 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status)
Product Compatibility	140CPU65150 140CPU65260 140CPU65160 140CPU67261 140CPU67160
Environmental characteristic	Standard environment Hazardous location class I division 2 EN/IEC 61131-1
Width	6.6 in (167 mm)
Height	2.0 in (50 mm)
Product Weight	1.221 lb(US) (0.554 kg)

Schneider 140ENETSW01IAT Schneider

$1,674.19

Only 2 units left

8 PORT ETHERNET SWITCH Modicon Quantum

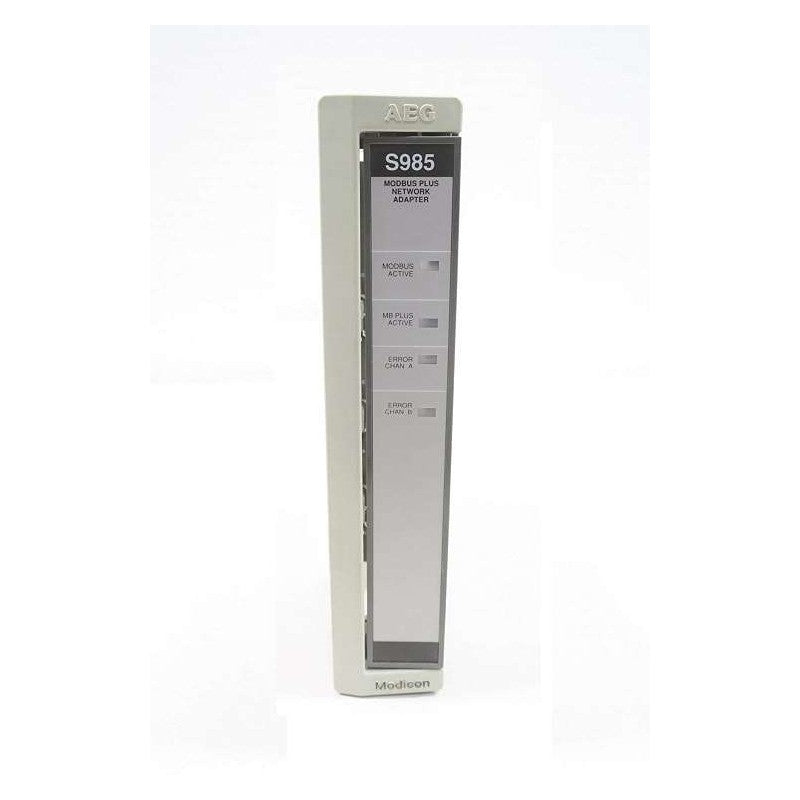

Schneider AS-S985-802 Schneider

$540.00

Only 1 unit left

NETWORK ADAPTER MODULE BUS ASSEMBLY

Schneider 140NOC78100 Schneider

$3,939.17

Only 3 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Ethernet control module

Complementary

Characteristic	Value(s)
Product Compatibility	140CPU6xxxx
Communication Port Protocol	Modbus TCP EtherNet/IP
Exchange mode	Full duplex
Maximum number of connections	64
Transmission Rate	10/100 Mbit/s
Redundancy	Yes hot standby redundant architecture
Topology	Daisy chain loop Redundant ring
Web server	Embedded
Communication Service	NTP time synchronization FDR server CIP implicit messaging (I/O communication) CIP Explicit messaging (client messaging) Embedded router SNMP agent Quality of Service (QoS) SMTP e-mail notification Embedded 4-port switch Device Type Manager (DTM) DHCP/BootP server
Ethernet service	Rapid Scanning Tree Protocol (RSTP)
Transmission support medium	Twisted pair
Port Ethernet	RJ45 10BASE-T/100BASE-TX
Marking	CE
Supply	Via the power supply of the rack
Local signalling	for communication on the bus (Active) 1 LED (green) for configuration status (Ready) 1 LED (green) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) for device network status (Net Status 1) 1 LED (green/red) for extended DIO network status (Net Status 2) 1 LED (green/red)
Module format	Standard
Product Weight	0.761 lb(US) (0.345 kg)

Schneider 140NOA62200 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Interbus master module
Software Designation	Concept ProWORX 32
Software Version	V 2.5 SR2
Module type	Interbus generation 4
Format	Standard

Complementary

Characteristic	Value(s)
Product Compatibility	140CPU11303 140CPU43412A 140CPU53414B
Product Specific Application	For standard applications
Module profile	PCP V2.0
Method of access	Master
Communication port protocol	Interbus RS485 isolated 500 kbit/s DIN 66020 Serial link
Type of Cable	Twisted pair
Maximum cable distance between devices	65.6 ft (20 m)
Memory capacity	128 kB + 256 kB firmware EPROM 2 kB dual-port RAM RAM 256 kB + 32 kB for data RAM 64 kB Interbus command sequence EEPROM 64 kB multi-port RAM RAM
Bus current requirement	800 mA
Product compatibility	6 x 140CPU11303 Interbus local rack 2 x 140CPU43412A or 140CPU53414B Interbus local rack
Rack type	Local
Power dissipation in W	4 W
Local signalling	for communication with the Quantum CPU active (ACTIVE) 1 LED (green) 1 LED (green) for firmware and module run (RUN) for Interbus is functioning normally and carrying data (IS-B RUN) 1 LED (green) for fault module (F) 1 LED (red) for initialization fault with the DEA 202 1 LED (red) for Interbus master is not operational 1 LED (red) for Interbus module has reported a fault 1 LED (red) for memory fault 1 LED (red) for peripheral bus fault 1 LED (red) for processor fault (master) 1 LED (red) for remote bus fault 1 LED (red) for one or more bus segments are shut down 1 LED (yellow)
Electrical connection	1 connector SUB-D 9 1 connector SUB-D 9 Interbus link
Marking	CE
Product Weight	2.0 lb(US) (0.9 kg)

Schneider XZCRV1511041C5 Schneider

$0.00

Sold Out

jumper cable XZ - male straight M12 4-pin - female straight M12 4-pin - PVC 5m

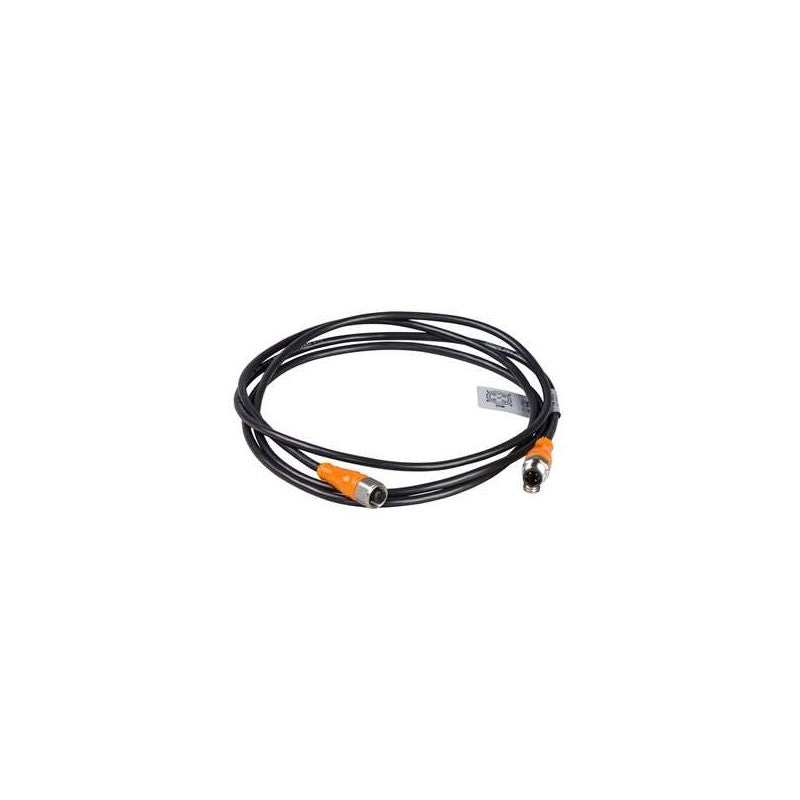

Schneider XZCRA151164D5 Schneider

$0.00

Sold Out

jumper cable XZ - male straight M12 5-pin - female straight M12 5-pin - PVC 5m

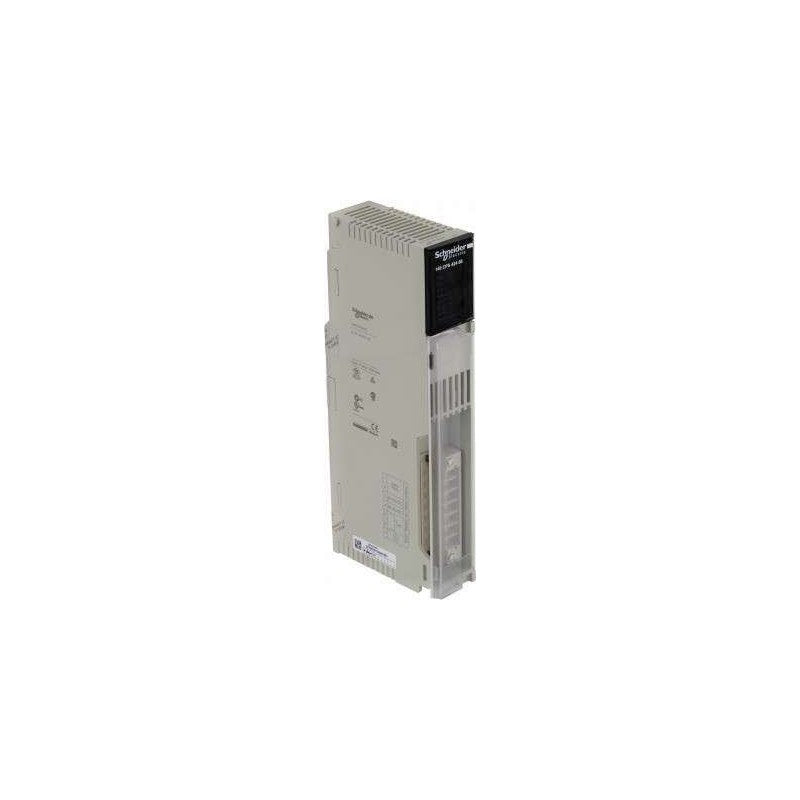

Schneider 140NOG11100 Schneider

$2,322.57

Only 4 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Software Designation	Concept ProWORX 32
Format	Standard

Complementary

Characteristic	Value(s)
Product Specific Application	For standard applications
Marking	CE
Product Weight	2.0 lb(US) (0.9 kg)

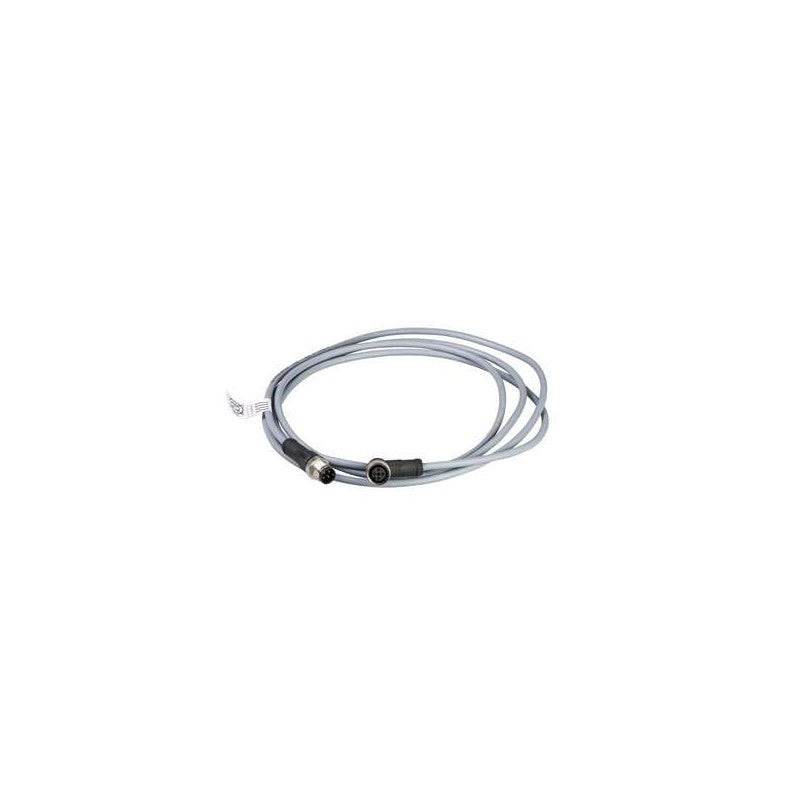

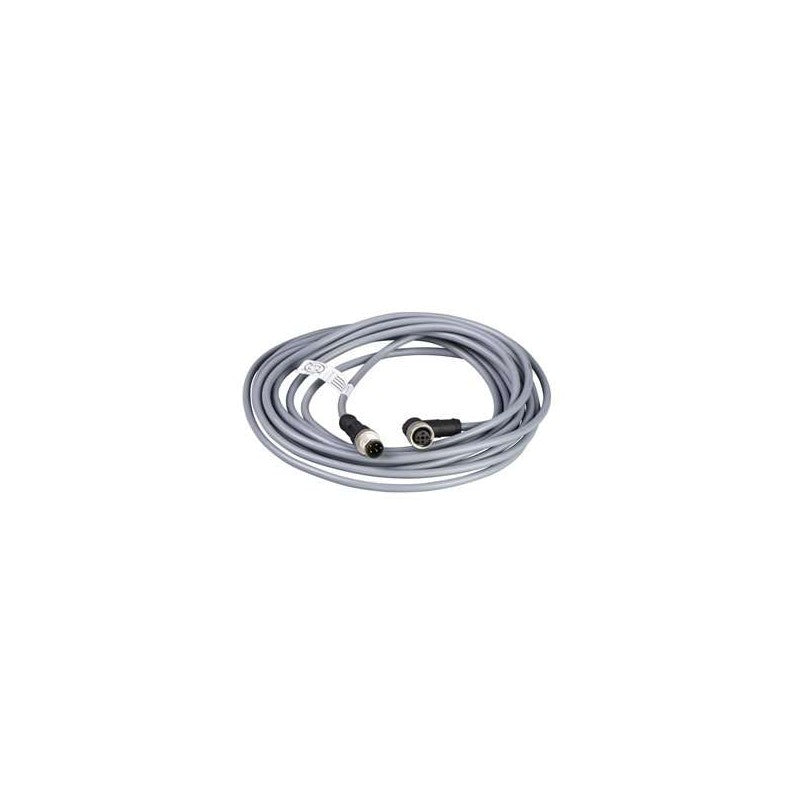

Schneider XZCRV1512041C5 Schneider

$0.00

Sold Out

jumper cable XZ - male straight M12 4-pin - female elbowed M12 4-pin - PVC 5m

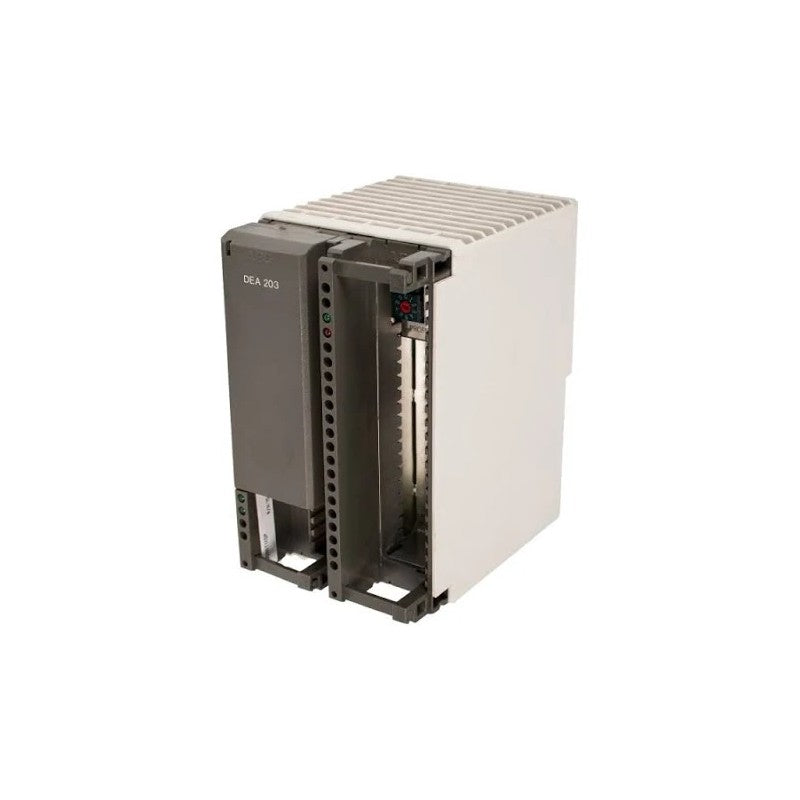

Schneider AS-BDEA-203 Schneider

$2,505.72

Only 8 units left

PROFIBUS ADAPTER 24VDC, .85AMP, DP I/F FOR A120 I/O

Schneider 110XCA28202 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Accessory / separate part category	Connection accessories
Accessory / Separate Part Type	Connecting cable
Accessory / separate part designation	Connection cordset for PC terminal
Accessory / separate part destination	Unity processor
Cable length	9.8 ft (3 m)

Complementary

Characteristic	Value(s)
Product Compatibility	140CPU65160S 140CPU67160S 140CPU67160 140CPU65150 140CPU65160 140CPU31110
Range Compatibility	Modicon Quantum automation platform Modicon Momentum automation platform
Electrical connection	1 connector RJ45 PC side 1 connector RJ45 processor side

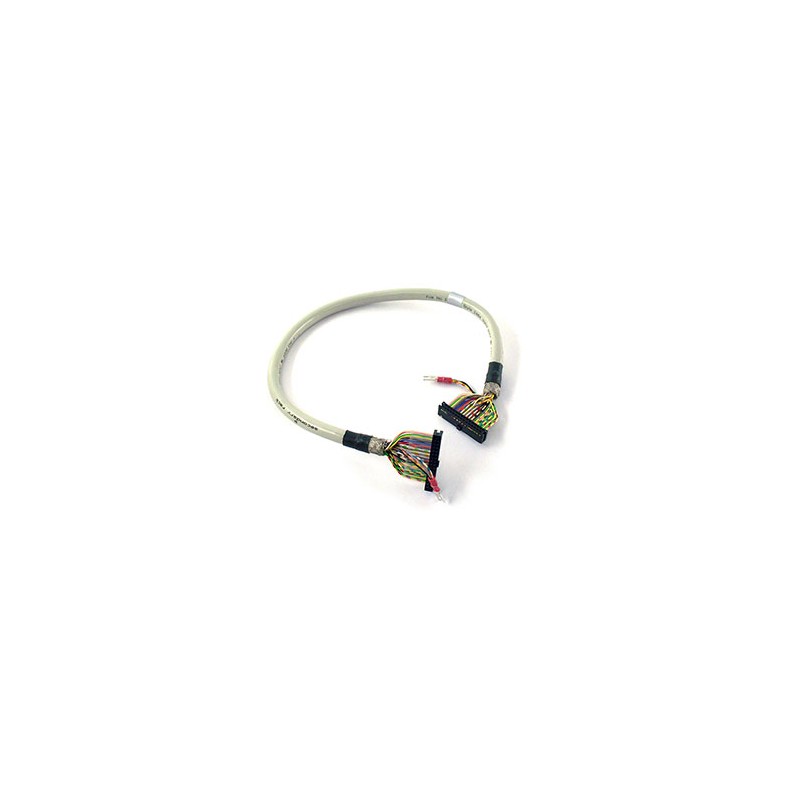

Schneider ASWBXT201 Schneider

$472.50

Only 3 units left

Category 32406-COMPACT Discount Schedule MDC GTIN 3595862115476 Returnability No Country of origin US Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.77 in (4.5 cm) Package 1 Width 11.81 in (30.0 cm) Package 1 Length 12.60 in (32.0 cm) Package 1 Weight 12.6 oz (356.0 g) Warranty 18 months

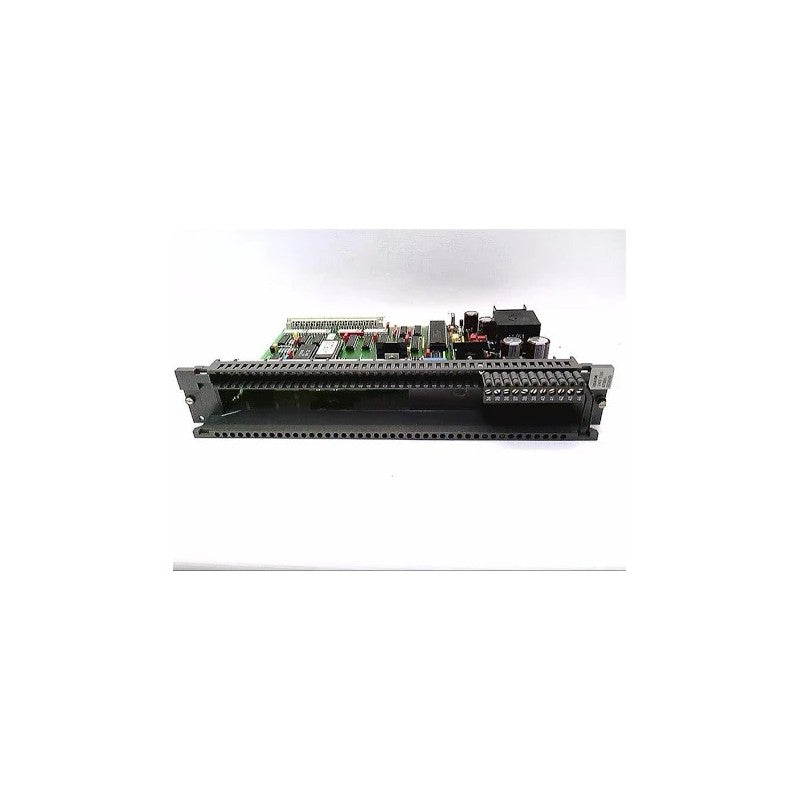

Schneider AS-BDEA-106 Schneider

$1,641.96

Only 2 units left

DRIVER MODULE BITBUS

Schneider XZCRA151140A2 Schneider

$0.00

Sold Out

jumper cable XZ - male straight M12 3-pin - female straight M12 3-pin - PVC 2m

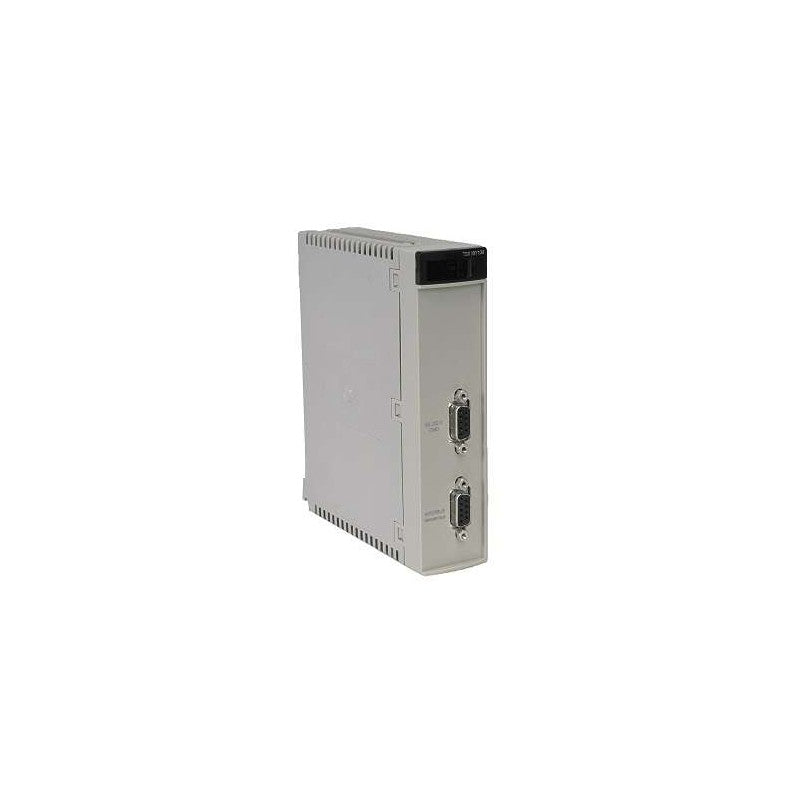

Schneider TSXIBY100 Schneider

$3,846.16

Only 7 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Premium Automation platform
Product or Component Type	InterBus bus module
Product Specific Application	For Premium PLC
Structure type	Industrial bus
Number of tap-offs	<= 16 remote bus

Complementary

Characteristic	Value(s)
Physical interface	Combined interface InterBus loop RS485 remote bus RS485 with 24 V DC in cable installation remote bus TTL local bus
Method of access	Master/slave generation 4
Mode of Transmission	NRZ
Transmission Rate	500 kbit/s
Transmission support medium	2 x 1.5 mmÂ² InterBus loop Fiber optic remote bus Infrared remote bus Rotating collector remote bus Twisted pair remote bus Wave guide rail remote bus
Maximum length of segment	656.2 ft (200 m) InterBus loop 1312.3 ft (400 m) remote bus
Maximum cable distance between devices	4.9 ft (1.5 m) local bus between 2 bus terminals modules 4.9 ft (1.5 m) local bus between bus terminal module and first module 32.8 ft (10 m) InterBus loop between 2 bus terminals modules 32.8 ft (10 m) local bus between bus terminal module and last module 328.08 ft (100 m) InterBus loop between bus terminal module and last module 41994.8 ft (12800 m) remote bus between module and last station on the remote bus 65.6 ft (20 m) InterBus loop between bus terminal module and first module 1312.3 ft (400 m) remote bus between 2 bus terminals modules 1312.3 ft (400 m) remote bus between module and the first bus terminal module 164.04 ft (50 m) installation remote bus between 2 bus terminals modules 164.04 ft (50 m) between bus terminal module and first module 164.04 ft (50 m) installation remote bus between bus terminal module and last module
Number of loops	1 InterBus loop
Number of bus terminals module	254 remote bus
Number of server device(s)	512 remote bus 63 InterBus loop 8 local bus
Maximum input/output number	Remote bus 4096 3872 3872
Communication service	Bus operating modes management Cyclical variable exchange Logical addressing PMS messaging Pre-processing Segmentation Implicit exchange of data process 242 %IW 242 %QW
Local signalling	6 LEDs
Electrical connection	1 connector female SUB-D 9 RS232 CMD tool software support 1 connector female SUB-D 9 RS485 Interbus link
Current consumption	500 mA 5 V DC
Module format	Standard
Product Weight	0.71 lb(US) (0.32 kg)

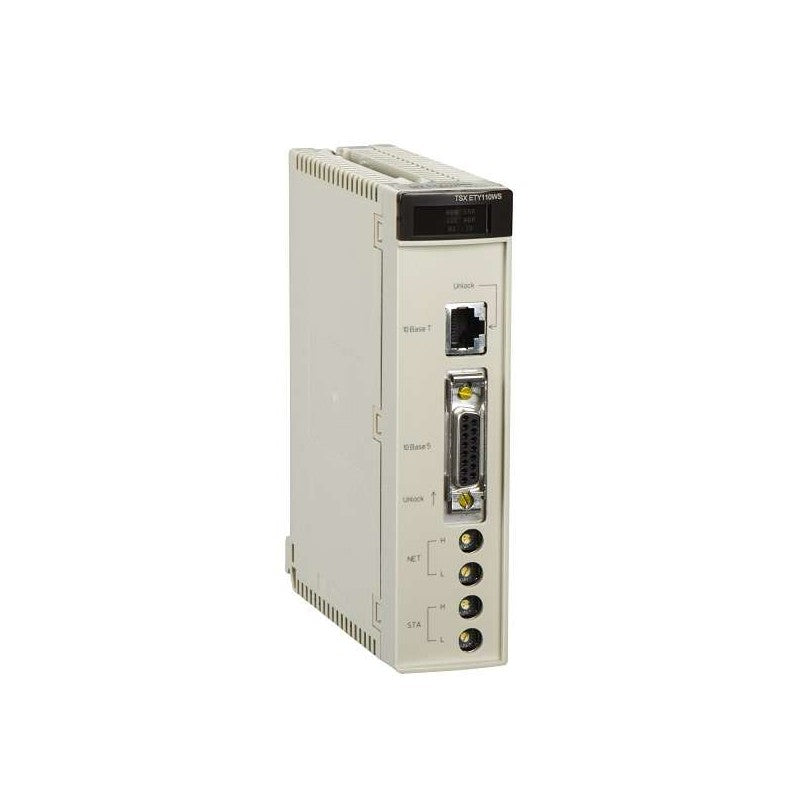

Schneider TSXETY110WS Schneider

$562.72

In stock, 13 units

Main

Characteristic	Value(s)
Range of Product	Modicon Premium Automation platform
Product or Component Type	Ethernet TCP/IP module
Physical interface	AUI - 100BASE-5 1 AUI cable RJ45 - 10BASE-T 1 twisted pair
Transmission rate	10 Mbit/s
Communication service	Modbus TCP messaging Optional TCP open SNMP agent Uni-TE messaging Common words, Ethway/X-Way Application to application, Ethway/X-Way
Supply	Via the power supply of the rack
Local signalling	1 LED for collision detection (COL) 1 LED for Ethernet network status (RUN) 1 LED for Ethernet port fault (ERR) 1 LED for transmission/reception activity (TX/TR)

Complementary

Characteristic	Value(s)
Communication Port Protocol	Ethway/X-Way Modbus TCP Uni-Telway
Maximum number of connections	64
Web server	Transparent ready class C10
web feature	Data Editor (via PC terminal) Rack viewer FactoryCast configurable
Memory description	User web page size 1.4 MB
Marking	CE
Product compatibility	PL7 Pro
Current consumption	1200 mA 5 V DC with remote power supply (AUI) 800 mA 5 V DC without remote power supply (RJ45)
Module format	Standard
Product Weight	0.82 lb(US) (0.37 kg)

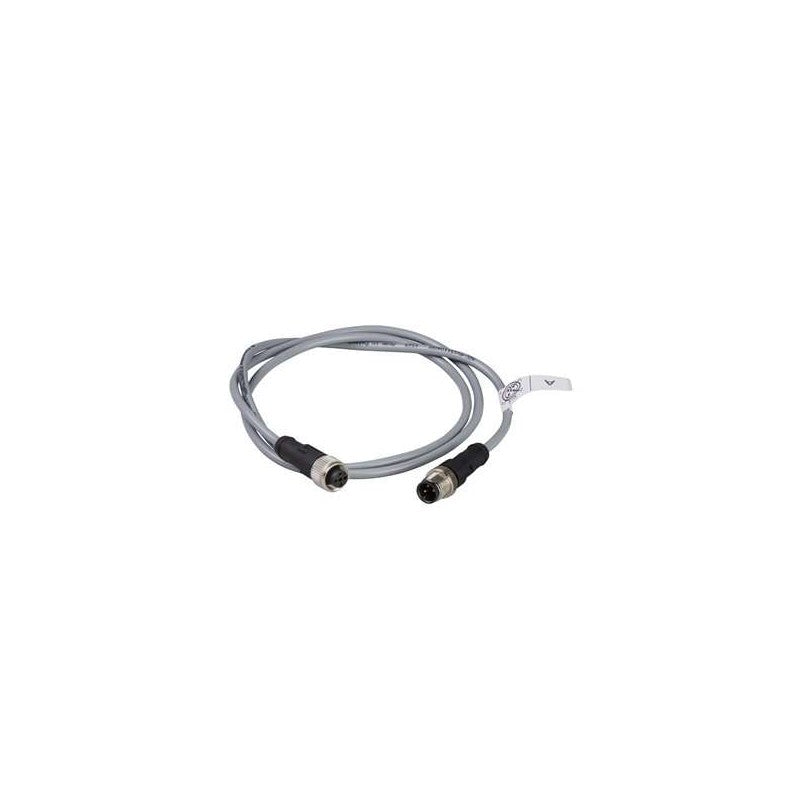

Schneider XZCRV1511040A1 Schneider

$0.00

Sold Out

jumper cable XZ - male straight M12 3-pin - female straight M12 3-pin - PVC 1m

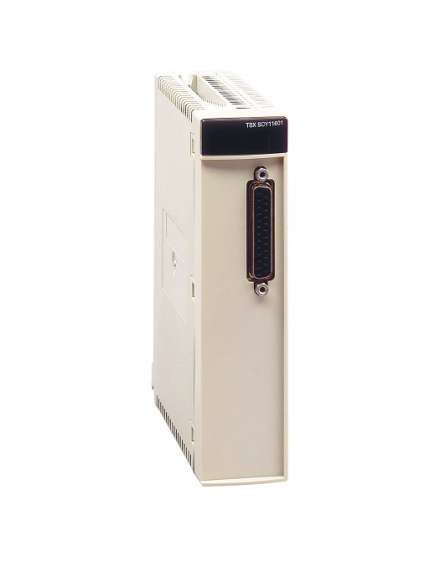

Schneider TSXSCY11601 Schneider Electric

$1,637.23

Only 3 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Premium Automation platform
Product or Component Type	Communication module
Software Designation	Unity Pro
Structure type	Heterogeneous industrial bus

Complementary

Characteristic	Value(s)
Product Compatibility	Premium Atrium
Method of access	Master/slave type
Integrated connection type	1 serial link 1 SUB-D 25
Communication Port Protocol	Modbus
Communication port support	RS485 isolated
Mode of Transmission	Asynchronous in baseband
Transmission frame	RTU/ASCII Character mode Uni-Telway
Transmission Rate	1.2...19.2 kbit/s
Transmission support medium	2 twisted shielded pairs cable
Number of devices	32
Number of addresses	0â¦247
Bus length	0.0000000000â¦4265.09 ft (0â¦1300 m) character mode 0.0000000000â¦4265.09 ft (0â¦1300 m) Modbus 0.0000000000â¦4265.09 ft (0â¦1300 m) Uni-Telway
Maximum tap links length	49.2 ft (15 m)
Requests	120 words per request 1920 bits per request
Control parameter	One CRC 16 on each frame
Monitoring function	Diagnostic counters Event counters
Modbus funtions available	Event connection Modbus master 0C Event connection Modbus slave 0C Event counter Modbus master 0B Event counter Modbus slave 0B Identification Modbus slave 11 Slave identification Modbus master 11 Write n output bits Modbus slave 0F Write n output words Modbus slave 10 Diagnostic Modbus master 08 Diagnostic Modbus slave 08 Exceptional read status Modbus master 07 Exceptional read status Modbus slave 07 Read bits Modbus master 01 Read input bits Modbus master 02 Read input bits Modbus master 04 Read n input bits Modbus slave 02 Read n input words Modbus slave 04 Read n output bits Modbus slave 01 Read n output words Modbus slave 03 Read words Modbus master 03 Write 1 bits or n bits Modbus master 05 Write 1 input word Modbus slave 06 Write 1 output bit Modbus slave 05 Write 1 word or n word Modbus master 06
Local signalling	1 LED for communication (CH0) 1 LED for internal fault, module failure (ERR) 1 LED for module operating (RUN)
Current consumption	350 mA 5 V DC
Module format	Standard
Product Weight	0.75 lb(US) (0.34 kg)
