Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Preventa Safety automation |
| Product or Component Type | Preventa safety PLC compact |

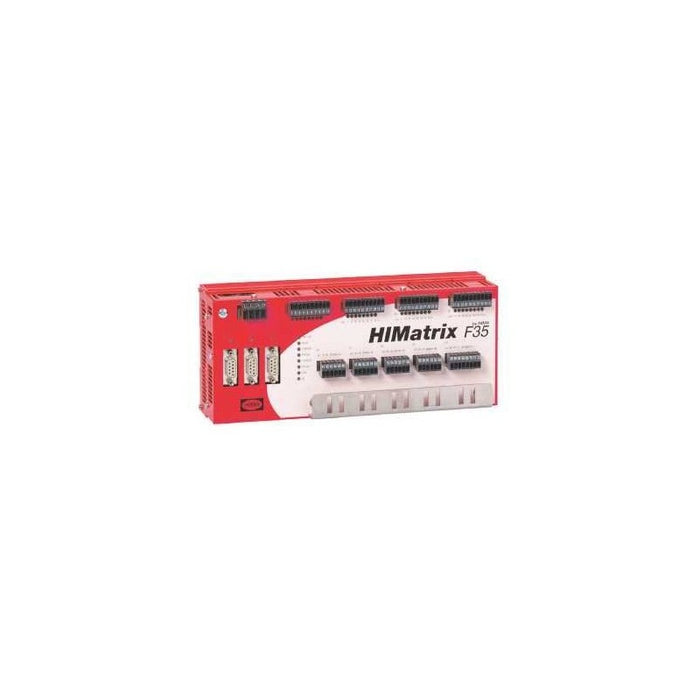

| Safety module name | XPSMF35 |
| Safety module application | For numerous machine safety functions and for the protection of personnel |
| Safety use category | Category 4 EN 954-1/ISO 13849-1 SIL 3 IEC 61508 |
| Structure type | 10BASE-T/100BASE-TX, Modbus TCP/IP 10BASE-T/100BASE-TX, safe Ethernet |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Closed circuit scanning of input channels analogue input circuit Measuring 0 to 20 mA currents using shunt analogue input circuit Monitoring safety actuators discrete output Monitoring safety detection discrete input Monitoring safety dialogue discrete input Monitoring safety dialogue discrete output Single-pole measuring of 0 to 10 V voltages analogue input circuit |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| No load current | 0.75 A |
| Protection Type | Internal fuse |
| Clock | With, supplied by backup capacitor for 1 week following loss of supply |
| Response Time | Depending on size of application |
| Memory description | User logic 250 kB application User logic 250 kB data |
| Discrete input number | 24 not isolated |
| Voltage state 0 guaranteed | <= 5 V discrete input |
| Voltage state 1 guaranteed | 24...30 V discrete input |
| Current state 0 guaranteed | 1...1.5 mA discrete input) |
| Current state 1 guaranteed | 3.5...4.5 mA discrete input) |
| Discrete input voltage | 20 V |
| Discrete input current | 100 mA |
| Input protection type | Protected against short-circuit to earth Protected against short-circuit |
| Input overvoltage protection | 500 V discrete input IEC 61000-4-5 -4â¦15 V analogue input circuit |
| Discrete output number | 8 |
| Discrete output voltage | 24 V DC |
| Output voltage tolerance | +/- 2% |
| Discrete output current | 1 A 140 °F (60 °C) channels 4 and 8) 2 A 122 °F (50 °C) channels 4 and 8) 0.5 A 140 °F (60 °C) channels 1 to 3 and 5 to 7) <= 7 mA all channels) |
| Minimum load | 2 mA per discrete output |
| Maximum leakage current | 1 mA 2 V at state 0 discrete output |
| Overload protection | Shutdown of outputs concerned with cyclic reconnection |
| Analogue input number | 8 |
| Analogue Output Type | Not isolated |
| External resistance | 250 Ohm analogue input circuit 500 Ohm analogue input circuit |
| Analogue input range | 0...20 mA 500 Ohm 0...10 V |
| Input voltage limits | 0.1...11.5 V analogue input circuit |
| Input current limits | 0.4â¦23 mA 500 Ohm analogue input circuit |
| Analogue input resolution | 12 bits |
| Safety accuracy | +/- 2 % analogue input circuit |
| Maximum internal input resistance | 500 MOhm for signal source analogue input circuit 1 kOhm analogue input circuit 3.7 Ohm counting inputs |
| Counting input number | 2 |
| Counting input type | Non isolated |
| Counting frequency | 100 kHz |
| Operating threshold | 0...0.05 V, 5 V low counting inputs 13...33 V, 24 V high counting inputs -3...5 V, 24 V low counting inputs 4...6 V, 5 V high counting inputs |
| Counter inputs resolution | 24 bits |
| DV/dt | 1 V/µs counting inputs |
| Communication port protocol | Modbus TCP/IP 4 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better Safe Ethernet 4 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better Modbus RTU 1 SUB-D 9-pin female, RS485 shielded dual twisted pair cable Profibus 1 SUB-D 9-pin female, RS485 shielded dual twisted pair cable |
| Exchange mode | Half duplex, full duplex, autonegotiation Modbus TCP/IP Half duplex, full duplex, autonegotiation safe Ethernet |
| Method of access | Slave Modbus Slave Modbus TCP/IP Slave Profibus |
| Number of addresses | 122 Modbus |
| Concept | Transparent Ready, Modbus TCP/IP |
| Web server | Class A10, Modbus TCP/IP |
| Web services | Modbus identification request, Modbus TCP/IP Modbus TCP/IP messaging (reading/writing of data words), Modbus TCP/IP Modbus TCP/IP server, Modbus TCP/IP Standard 502, Modbus TCP/IP |
| Operating distance | <= 500 m between station) shielded dual twisted pair cable counting inputs <= 100 m between station) discrete input <= 100 m between station) discrete output <= 300 m between station) analogue input circuit |
| Number of terminal blocks | 1 counting inputs 1 power supply 2 discrete output 4 analogue input circuit 5 discrete input |
| Connections - terminals | Analogue input circuit captive screw clamp terminals, 2 x 0.5 mm² AWG 20) flexible with cable end Counting inputs captive screw clamp terminals, 2 x 0.5 mm² AWG 20) flexible with cable end Discrete input/output circuit captive screw clamp terminals, 2 x 0.5 mm² AWG 20) flexible with cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) flexible without cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) solid without cable end Power supply captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible without cable end Power supply captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) solid without cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² AWG 22...AWG 20) flexible with cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² AWG 22...AWG 16) flexible without cable end Power supply captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 16) flexible with cable end Power supply captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 16) flexible without cable end Discrete input/output circuit captive screw clamp terminals, 2 x 0.14...2 x 0.5 mm² AWG 28...AWG 20) solid without cable end Discrete input/output circuit captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² AWG 28...AWG 18) flexible without cable end Power supply captive screw clamp terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 12) flexible without cable end Power supply captive screw clamp terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 12) solid without cable end Discrete input/output circuit captive screw clamp terminals, 2 x 0.25...2 x 0.34 mm² AWG 22) flexible without cable end Power supply captive screw clamp terminals, 2 x 0.25...2 x 1 mm² AWG 22...AWG 18) flexible without cable end Power supply captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² AWG 22...AWG 16) flexible with cable end Analogue input circuit captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) flexible without cable end Counting inputs captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) flexible without cable end Analogue input circuit captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) solid without cable end Counting inputs captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) solid without cable end Analogue input circuit captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² AWG 22...AWG 20) flexible with cable end Counting inputs captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² AWG 22...AWG 20) flexible with cable end Analogue input circuit captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² AWG 22...AWG 16) flexible without cable end Counting inputs captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² AWG 22...AWG 16) flexible without cable end Analogue input circuit captive screw clamp terminals, 2 x 0.14...2 x 0.5 mm² AWG 28...AWG 20) solid without cable end Counting inputs captive screw clamp terminals, 2 x 0.14...2 x 0.5 mm² AWG 28...AWG 20) solid without cable end Analogue input circuit captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² AWG 28...AWG 18) flexible without cable end Counting inputs captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² AWG 28...AWG 18) flexible without cable end Analogue input circuit captive screw clamp terminals, 2 x 0.25...2 x 0.34 mm² AWG 22) flexible without cable end Counting inputs captive screw clamp terminals, 2 x 0.25...2 x 0.34 mm² AWG 22) flexible without cable end |
| Tightening torque | 1.95â¦2.21 lbf.in (0.22â¦0.25 N.m) |
| Wire stripping length | 0.4 in (9 mm) |
| Current consumption | 9 A 24 V DC on power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 2.6 in (66.5 mm) |
| Height | 4.4 in (113 mm) |
| Width | 10.0 in (253 mm) |
| Product Weight | 2.6 lb(US) (1.2 kg) |
