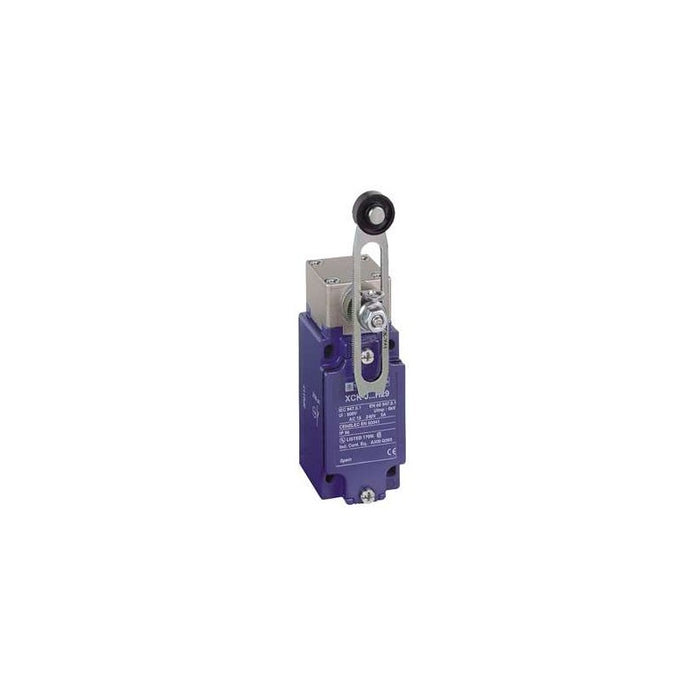

The XCKJ10541H29 is an OsiSense XC Standard industrial limit switch designed for heavy-duty applications in harsh environments. This mechanical position switch features a thermoplastic variable-length adjustable roller lever with a spring return mechanism and rotary head design. The device is built in a standardized EN50041 format with a robust Zamak metal body and head, providing IP66 protection rating and IK07 impact resistance. It incorporates snap-action contacts with 1 normally open and 1 normally closed configuration, offering reliable performance with typical electrical durability of 5 million cycles in DC-13 utilization category. The modular design allows for easier maintenance and late modifications such as changing connection types or heads. Suitable for industrial automation, material handling, and machine control applications where precise position detection is critical.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric / Telemecanique Sensors
- Item Type Name: Industrial Limit Switch
- Product Family / Series: OsiSense XC Standard
- Series: XCKJ
- Format Standard: EN50041 Form A
Product Specifications
- contact_configuration: 1 NO + 1 NC (SPDT)
- contact_operation: Snap action
- current_rating_ac: 10 A
- current_rating_ac_resistive: 3 A at 240 V AC
- current_rating_dc_resistive: 0.27 A at 250 V DC
- voltage_rating_ac: 240 V AC
- voltage_rating_dc: 250 V DC
- actuator_type: Adjustable roller lever (variable length)
- roller_diameter: 19 mm
- lever_length_range: 40-85 mm
- actuator_material: Thermoplastic
- body_material: Zamak (zinc alloy)
- head_material: Zamak
- head_type: Rotary head
- operating_force: 250 mN
- ip_rating: IP66
- impact_resistance: IK07
- operating_temperature_range: -25 to 70 °C
- cable_entry: M20 x 1.5
- cable_outer_diameter: 7-13 mm
- mounting_method: By the body
- number_of_poles: 2
- electrical_durability: 5 million cycles (DC-13)
- head_adjustment: 5° steps throughout 360°
- terminal_type: Screw clamp terminals
Additional Details
- Certifications / Approvals: CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC
Measurements
- Weight: 0.48 kg
- Dimensions: 40 x 77 x 44 mm (W x H x D)
- Mounting Holes: 4
- Mounting Hole Pitch: 30/60 mm
