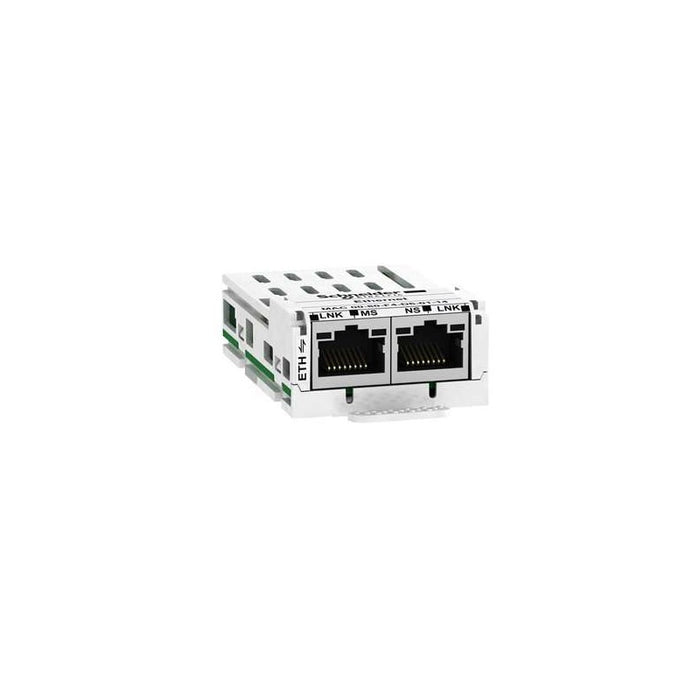

The VW3A3616 is an industrial Ethernet communication module designed for Schneider Electric's Altivar and Lexium drive families. This removable option card enables seamless integration of variable speed drives into Ethernet TCP/IP networks, supporting both Modbus TCP and EtherNet/IP protocols. The module features dual RJ45 connectors for flexible network connectivity and operates at 10/100 Mbps transmission speeds with half-duplex and full-duplex exchange modes. It supports up to 8 simultaneous connections across both protocols and offers IP addressing via manual configuration, BOOTP, or DHCP. The module provides comprehensive Modbus TCP register access functions including read holding registers, read input registers, write single register, and write multiple registers, with a maximum of 63 words per operation. Compatible with Altivar 32, Altivar Machine ATV320, and Lexium 32 series drives, this communication card facilitates real-time drive monitoring, control, and diagnostics in industrial automation applications.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Ethernet TCP/IP Communication Module
- Product Family / Series: Altivar
- Product Compatibility: Altivar 32, Altivar Machine ATV320, Lexium 32, Lexium 32M
- Accessory Category: Communication accessories
- Mounting Type: Surface
- Upc: 36064801775
Product Specifications
- communication_protocols: Modbus TCP, EtherNet/IP
- transmission_rate: 10/100 Mbps
- electrical_connection: 2 x RJ45 connectors (1 EtherNet/IP, 1 Modbus TCP)
- exchange_mode: Half duplex and full duplex
- addressing: IP addressing manual, BOOTP, DHCP
- max_connections: Up to 8 connections (Modbus TCP/EtherNet IP combined)
- modbus_functions: Read holding registers (03, 63 words max), Read input registers (04, 63 words max), Write single register (06), Write multiple registers (16, 63 words max)
- fdr_agent: Ethernet IP/Modbus TCP
- degree_of_protection: IP20
Additional Details
- Country of Origin*: China
- Certifications / Approvals: CE
- Rohs Compliant: Yes
*Country of origin may vary.
Measurements
- Weight: 0.13 lb (59 g)
- Width: 2.38 in (60.5 mm)
- Length: 3.51 in (89.2 mm)
