Main

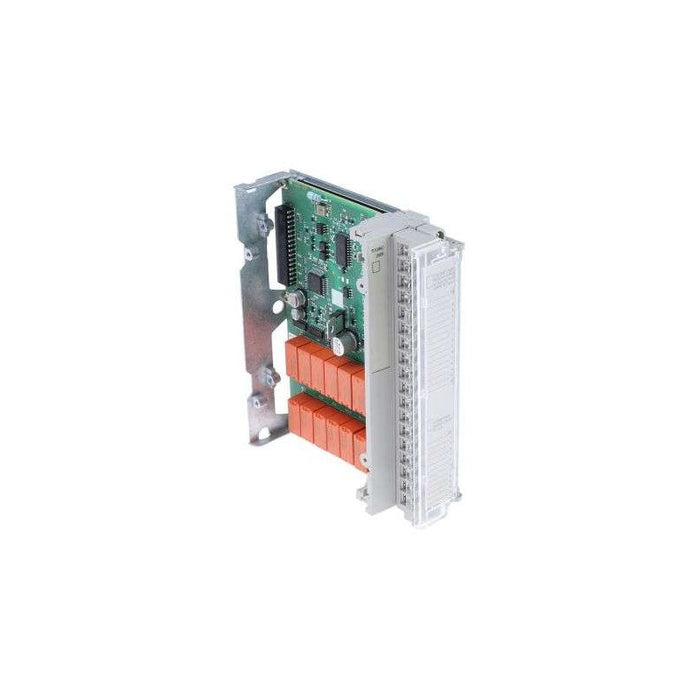

| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete relay I/O base |
| Discrete input number | 16 screw terminal block |
| Discrete input voltage | 24 V DC, discrete input logic: negative |
| Discrete input current | 9 mA |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | <= 8 V at state 1 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 4 Ohm |
| Response time | 0.1...7.5 ms input at state 0 to state 1 0.1...7.5 ms input at state 1 to state 0 < 10 ms output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Load type | Resistive |
| Current consumption | 160 mA positive 131 mA negative |
| Power dissipation in W | 4.5 W |
| Output voltage limits | 19â¦264 V AC 10...34 V DC |
| Contacts type and composition | NO |
| Power consumption in VA | 50 VA 24 V AC-12 resistive 110 VA 48 V AC-12 resistive 220 VA 110 V AC-12 resistive 220 VA 220 V AC-12 resistive 24 VA 24 V AC-15 inductive 24 VA 48 V AC-15 inductive 220 VA 220 V AC-15 inductive 110 VA 110 V AC-15 inductive |
| Power consumption in W | 40 W 24 V DC-12 resistive 24 W 24 V DC-13 inductive |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
| Product weight | 0.5 kg |
