Main
| Characteristic | Value(s) |
|---|---|

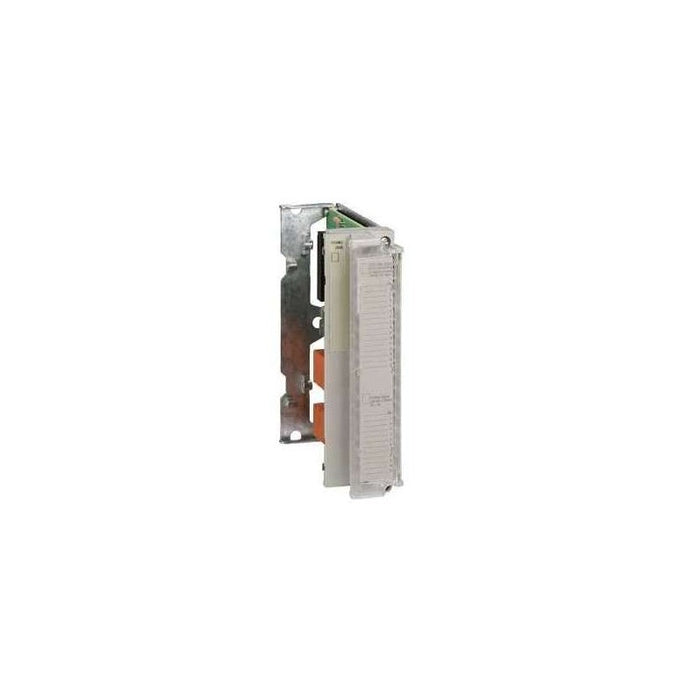

| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Discrete input number | 8 1 HE-10 connector |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 7 mA |
| Discrete input type | Resistive |
| Discrete output number | 8 1 HE-10 connector |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 mA |
| Discrete output logic | Positive |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | >= 11 V at state 1 < 5 V at state 0 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 3.4 Ohm |
| Response time | <= 0.5 ms from state 1 to state 0 output <= 0.5 ms from state 0 to state 1 output 0.1...7.5 ms from state 1 to state 0 input 0.1...7.5 ms from state 0 to state 1 input |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Current consumption | 76 mA |
| Power dissipation in W | 3.5 W by module output 0.15 W by channel output 3 W input |
| Output voltage limits | 19...30 V |
| Output current limits | 0.625 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 0.3 V |
| Load impedance ohmic | 48 Ohm |
| Switching frequency | < 0.6/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum |
| Isolation voltage | 1500 V for 1 s |
| Product weight | 0.16 kg |
