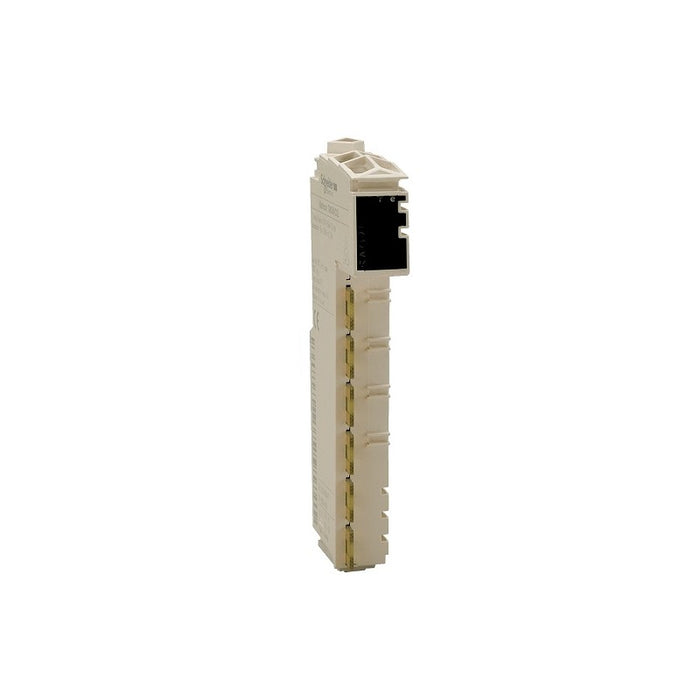

The Schneider Electric TM5SAI4H is an analog input module designed for the Modicon TM5 IP20 modular I/O system. This module provides 4 analog inputs with 16-bit resolution (15 bits plus sign), accepting both voltage and current signals: ±10 V DC and 0-20 mA differential inputs with internal supply. It integrates seamlessly with Modicon logic and motion controllers, offering flexible and scalable I/O configurations for industrial automation applications. The module features 500 V RMS AC insulation between channel and bus, DIN rail mounting, and removable spring terminals for simplified wiring and maintenance. Ideal for production machinery, packaging systems, material handling, and assembly automation where precise analog signal acquisition is required.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Analog Input Module
- Product Family / Series: Modicon TM5
- Part Number: TM5SAI4H
Product Specifications
- number_of_inputs: 4
- resolution: 16 bits (15 bits + sign)
- input_voltage_range: ±10 V DC
- input_current_range: 0-20 mA
- supply_voltage: 24 V DC
- current_consumption_5V_bus: 2 mA
- current_consumption_24V: 63 mA
- insulation_channel_to_bus: 500 V RMS AC
- insulation_between_channels: None
- accuracy_voltage: < 0.08% of full scale at 25°C
- accuracy_current: < 0.08% of full scale at 25°C
- operating_temperature_horizontal: 0-55°C (without derating), 0-60°C (with derating)
- operating_temperature_vertical: 0-50°C
- ip_rating: IP20
- mounting_type: DIN Rail
Additional Details
- Country of Origin*: Austria
- Certifications / Approvals: GOST-R, C-Tick, cULus, CSA
- Standards Compliance: IEC 61131-2, UL 508, CSA C22.2 No 213, CSA C22.2 No 142
- Environmental Label: Green Premium
*Country of origin may vary.
Measurements
- Weight: 0.025 kg
- Dimensions: 99 x 12.5 x 75 mm
