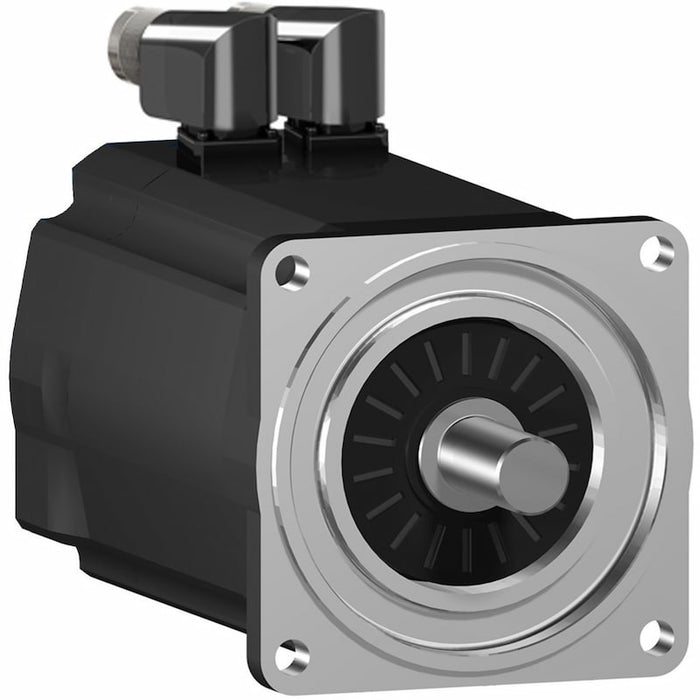

| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 6000 rpm |
| [Us] rated supply voltage | 115...480 V |
| Phase | Three phase |
| Continuous stall current | 4.8 A |
| Continuous stall torque | 51.3 lbf.in (5.8 N.m) 115...480 V three phase |
| Continuous power | 1900 W |
| Peak stall torque | 162.0 lbf.in (18.3 N.m) 115...480 V three phase |
| Nominal output power | 580 W 115 V single phase 1090 W 230 V single phase 1930 W 400 V three phase 2210 W 480 V three phase |
| Nominal torque | 48.7 lbf.in (5.5 N.m) 115 V single phase 46.02 lbf.in (5.2 N.m) 230 V single phase 40.7 lbf.in (4.6 N.m) 400 V three phase 38.9 lbf.in (4.4 N.m) 480 V three phase |
| Nominal speed | 1000 rpm 115 V single phase 2000 rpm 230 V single phase 4000 rpm 400 V three phase 4800 rpm 480 V three phase |
| Maximum current Irms | 17.1 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 IP65 motor: conforming to IEC 60034-5 IP65 shaft bushing: conforming to IEC 60034-5 |
| Encoder type | Absolute multiturn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | With |
| Holding torque | 79.7 lbf.in (9 N.m) |
| Mounting Support | International standard flange |
| Motor flange size | 3.9 in (100 mm) |
| Electrical Connection | Rotatable right angled connector |
| Torque constant | 1.21 N.m/A 248 °F (120 °C) |
| Back emf constant | 77 V/krpm 68 °F (20 °C) |
| Number of motor poles | 4.0 |
| Rotor inertia | 2.928 kg.cm² |
| Stator resistance | 2.4 Ohm |
| Stator inductance | 6.75 mH |
| Maximum radial force Fr | 990 N 1000 rpm 790 N 2000 rpm 690 N 3000 rpm 620 N 4000 rpm |
| Maximum axial force Fa | 160 N |
| type of cooling | Natural convection |
| Length | 9.2 in (234.5 mm) |
| Centring collar diameter | 3.7 in (95 mm) |
| centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9.0 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Product Weight | 13.9 lb(US) (6.3 kg) |
| Sizing reference | SH31002P |
| Network number of phases | 3 |
| Temperature copper hot | 266 °F (130 °C) |
| compatible drive output current 3s peak 2 | 15 A |
| Electrical connection | rotatable right angled connector |
