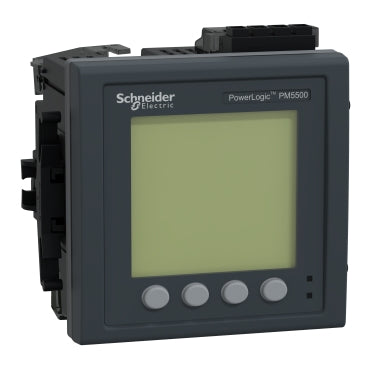

The PowerLogic PM5560 is a high-performance three-phase digital power meter designed for advanced power monitoring, energy management, and power quality analysis in industrial and commercial applications. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and measures active and reactive energy, power, voltage, current, frequency, and power factor. It features harmonic analysis capability up to the 63rd harmonic, enabling comprehensive power quality management. The device includes a 96mm x 96mm backlit LCD display with 128 x 128 pixel resolution, 1.1 MB of onboard memory for data logging of up to 14 selectable parameters, and dual Ethernet ports for Modbus TCP/IP and BACnet IP communication. With 4 digital inputs and 2 digital outputs, it supports WAGES metering, multi-tariff applications, gateway functions, and offers 52 configurable alarms. The flush-mount design is suitable for panel installation in power distribution and control systems.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Three-Phase Digital Power Meter
- Product Family / Series: PowerLogic PM5000 Series
- Device Short Name: PM5560
- Sub Range: PM5500
- Secondary Brand: Merlin Gerin
- Mounting Type: Flush mount, panel mount
Product Specifications
- accuracy_class: Class 0.2S active energy per IEC 62053-22
- harmonic_analysis: Up to 63rd harmonic
- supply_voltage: 100-480 V AC (45-65 Hz), 125-250 V DC
- line_rated_current: 1 A or 5 A
- network_frequency: 50 Hz / 60 Hz
- network_configuration: 1P+N, 3P, 3P+N
- power_consumption: 10 VA (16 VA at 480 V)
- measurement_voltage_phase_to_phase: 20-690 V AC (45-65 Hz)
- measurement_voltage_phase_to_neutral: 20-400 V AC (45-65 Hz)
- measurement_current_range: 5-10000 mA
- sampling_rate: 128 samples/cycle (6400 Hz at 50 Hz, 7680 Hz at 60 Hz)
- display_type: Backlit LCD
- display_resolution: 128 x 128 pixels
- memory_capacity: 1.1 MB
- digital_inputs: 4 DI
- digital_outputs: 2 DO
- configurable_alarms: 52 alarms
- communication_ports: 2 Ethernet ports, RS485
- communication_protocols: Modbus RTU, Modbus ASCII, Modbus TCP/IP (10/100 Mbit/s), BACnet IP, JBUS
- isolation_voltage: 2500 V AC
- measurement_accuracy_voltage: ±0.1%
- measurement_accuracy_current: ±0.15% (±0.5% per some sources)
- measurement_accuracy_active_power: ±0.2%
- measurement_accuracy_active_energy: ±0.2%
- measurement_accuracy_reactive_energy: ±1% (±2% per some sources)
- measurement_accuracy_apparent_power: ±0.5%
- measurement_accuracy_frequency: ±0.05%
- measurement_accuracy_power_factor: ±0.05%
- ride_through_time: 35 ms at 120 V AC, 129 ms at 230 V AC, 50 ms at 125 V DC
Additional Details
- Country of Origin*: India
- Certifications / Approvals: BTL, CE (IEC 61010-1), CULus (UL 61010-1), IEC 62053-22, IEC 62053-24, IEC 61557-12, IEC 60529, EN 50470-1, EN 50470-3, ANSI C12.20
- Emc Compliance: IEC 61000-3-2 (Class A), IEC 61000-4-6 (Level 3), IEC 61000-4-8 (Level 4)
- Rohs Compliant: Yes
- Ip Rating: IP30
- Functions: I/O timer, operating timer, active load timer, alarm counters, alarm logs, alarms with 1s resolution timestamping, Ethernet-to-serial gateway, onboard web-server
*Country of origin may vary.
Measurements
- Weight: 450 g
- Dimensions: 96 mm W x 96 mm H x 72 mm D (3.78 in W x 3.78 in H x 2.83 in D)
