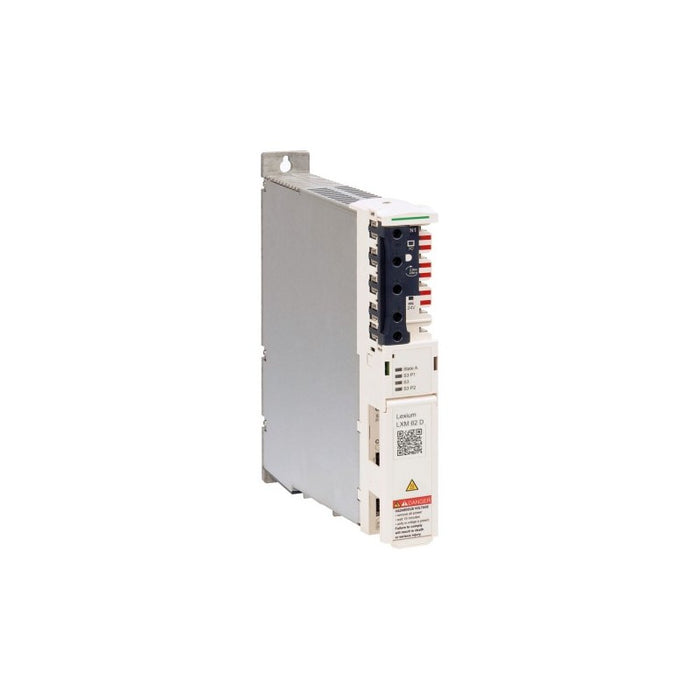

The Schneider Electric LXM62DD15C21000 is a single-axis servo drive from the Lexium 62 product family, part of the PacDrive 3 automation platform. This compact servo drive delivers a continuous output current of 5 A at 4 kHz switching frequency with peak current capability of 15 A for dynamic applications. It provides 2.4 kW continuous and nominal power output, operating from three-phase or single-phase AC supply voltages of 400 V or 230 V at 50/60 Hz. The drive features SERCOS III real-time communication interface for integration with PacDrive 3 LMC motion controllers, offering precise motion control for servo motors in the SH3 family. It includes 2 digital inputs with touch probe functionality and 2 digital outputs for flexible I/O integration. The LXM62DD15C21000 is designed for general machine control, packaging automation, and material handling applications requiring high-performance servo motion control.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Servo Drive
- Product Family / Series: Lexium 62
- Range: PacDrive 3
- Device Short Name: LXM 62
- Component Name: LXM62
Product Specifications
- continuous_output_current: 5 A at 4 kHz
- peak_output_current: 15 A at 4 kHz
- continuous_power: 2.4 kW
- nominal_power: 2.4 kW
- rated_supply_voltage: 400 V (-10...+10%) three-phase / 230 V (-10...+10%) three-phase or single-phase
- supply_frequency: 50/60 Hz (-5...+5%)
- switching_frequency: 8 kHz
- overvoltage_category: III
- communication_interface: SERCOS III
- digital_inputs: 2 digital / 2 touch probe inputs
- digital_outputs: 2
- ip_rating: IP20
- motor_compatibility: Servo motor SH3 (70 mm, 2 motor stacks), Servo motor SHS
Additional Details
- Certifications / Approvals: CE, CSA, EAC, TUV, UL
- Standards: CSA C22.2 No 14, EN 61800-5-1, EN/ISO 13849-1, EN/ISO 13849-2, UL 508C, EN 62061, IEC 61508
- Safety Features: Hardware STO (Safe Torque Off) SIL 3 / PL e
- Included Accessories: Accessory kit included
- Applications: General machine control, packaging machine automation, material handling
Measurements
- Weight: 3 kg
