LV434023 Schneider Electric

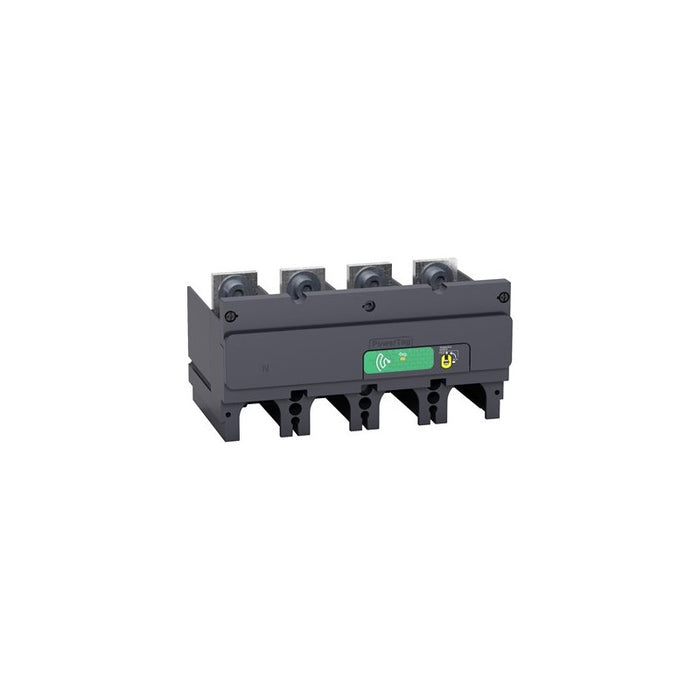

This PowerTag Energy M630 3P+N is a wireless communication energy sensor. With its Monoconnect design, it is dedicated to Compact NSX 400/630, Compact NS 400/630, Compact INS 320/400/500/630 and Compact INV 320/400/500/630. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, and reactive energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy M630 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 630A. The Ib Base current is 100A. The Saturation current is 1260A and the Ist Starting current is 400mA. The Un Rated voltages are Phase-to-neutral 230VAC +/- 20% and Phase-to-phase 400VAC +/- 20%. The maximum consumption is below or equal to 3.7VA. It can be mounted directly on the bottom side of the circuit breaker or Vigi add-on terminals, or top or bottom side of the plug-in base if any. The product color is grey (RAL7016). The weight is 1000g. The degree of protection is IP20 and IK07. The operating temperature is between -25Â°C to +70Â°C. The storage temperature is between -50Â°C to +85Â°C.

Main

Characteristic	Value(s)
Range of product	PowerLogic
product name	PowerTag M630
Product or component type	Energy sensor
Poles	3P + N
Maximum current [Imax]	630 A
[Ib] Basic current	100 A
Starting current	400 mA
Saturation current	1260 A
Product specific application	Energy management Overload alarm Power factor Load monitoring Circuit monitoring
Concentrator compatibility	Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link C Acti9 PowerTag Link Acti9 PowerTag Link HD Harmony Hub Wiser IP module EcoStruxure Panel Server Universal EcoStruxure Panel Server Advanced PrismaSet Active
Range compatibility	Compact NSX Compact NSX400...630 Compact INS Compact INS320...630 Compact INV Compact INV320...630 Compact NS Compact NS400/630 EasyPact EasyPact CVS400 EasyPact EasyPact CVS630
Type of measurement	Active and reactive energy Active and reactive power Apparent power Current Voltage Power factor
Accuracy class	Class 1 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 2 reactive power conforming to IEC 61557-12 Class 2 apparent power conforming to IEC 61557-12 Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12
Metering type	Power factor 0...1: class 1 at 25 Â°C conforming to IEC 61557-12 Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 Â°C conforming to IEC 61557-12 Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 Â°C conforming to IEC 61557-12 Voltage U12, U23, U31 320...480 V: class 0.5 at 25 Â°C conforming to IEC 61557-12 Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 Â°C conforming to IEC 61557-12 Current I1, I2, I3, Iavg 20...630 A: class 1 at 25 Â°C conforming to IEC 61557-12 Apparent power S, S1, S2, S6 221 VA...1048 kVA: class 2 at 25 Â°C conforming to IEC 61557-12 Active power P, P1, P2, P6 221 W...1048 kW: class 1 at 25 Â°C conforming to IEC 61557-12 Reactive power Q, Q1, Q2, Q6 221 VAR...1048 kVAR: class 2 at 25 Â°C conforming to IEC 61557-12 Frequency 45...65 Hz
Mounting location	Bottom
Mounting support	On circuit breaker
Connection pitch	45 mm
Product destination	Switchboard
Event management	Voltage loss with measured current at voltage loss
Transmission support medium	Radio frequency 2.4â¦2.4835 GHz conforming to IEEE 802.15.4 (11â¦26) transmission time < 5 ms
Emission power	10 mW

Complementary

Characteristic	Value(s)
[Imp] maximum permanent current	1.2 x In
Form factor	Monoconnect
Mounting mode	Bolt-on
Tightening torque	50 N.m
supply voltage	230 V AC, +/- 20 %, between phase and neutral 400 V AC, +/- 20 %, between phases
Network frequency	50 Hz 60 Hz
Maximum power consumption	3.7 VA
Standards	IEC 61557-12 IEC 61010-1 ETSI EN 301 489-1 IEC 61010-2-030 IEC 61326-1 ETSI EN 300 328
Height	91 mm
Width	185 mm
Depth	110 mm
Product weight	1000 g
Colour	Dark grey (RAL 7016)
