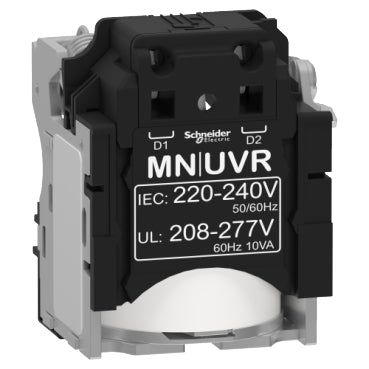

The Schneider Electric LV429407 is a Type MN undervoltage release designed for use with ComPact NSX, PowerPact Multistandard, and EasyPact CVS circuit breakers. This auxiliary device serves critical safety functions in emergency shutoff and remote opening applications by automatically opening the circuit breaker when the control voltage drops below 35% of its rated voltage. It features screwless spring terminal connections for simplified installation and operates at rated voltages of 220-240 VAC at 50/60 Hz or 208-277 VAC at 60 Hz. The device has a break time of 50 milliseconds and complies with IEC 60947-2 standards. It is UL Listed and CSA Certified for use as a circuit breaker accessory, ensuring reliable protection and compliance in industrial electrical installations.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Undervoltage Release
- Product Family / Series: ComPact NSX
- Model Number: LV429407
- Device Short Name: MN
- Series: LV4
- Ean Code: 3606480018961
Product Specifications
- rated_voltage: 220-240 VAC 50/60 Hz, 208-277 VAC 60 Hz
- frequency: 50/60 Hz
- break_time: 50 ms
- voltage_drop_threshold: Below 35% of rated voltage Un
- terminal_connection_type: Screwless spring terminal connection
- voltage_type: AC
Additional Details
- Country of Origin*: Europe
- Lifecycle Status: Production
- Certifications / Approvals: UL Listed, CSA Certified, IEC 60947-2, RoHS Compliant
- Application: Emergency shutoff, remote opening applications
- Compatibility: Compact NSX, PowerPact Multistandard, EasyPact CVS circuit breakers
*Country of origin may vary.
Measurements
- Weight: 0.1 kg
- Dimensions: 45 x 46 x 60 mm
