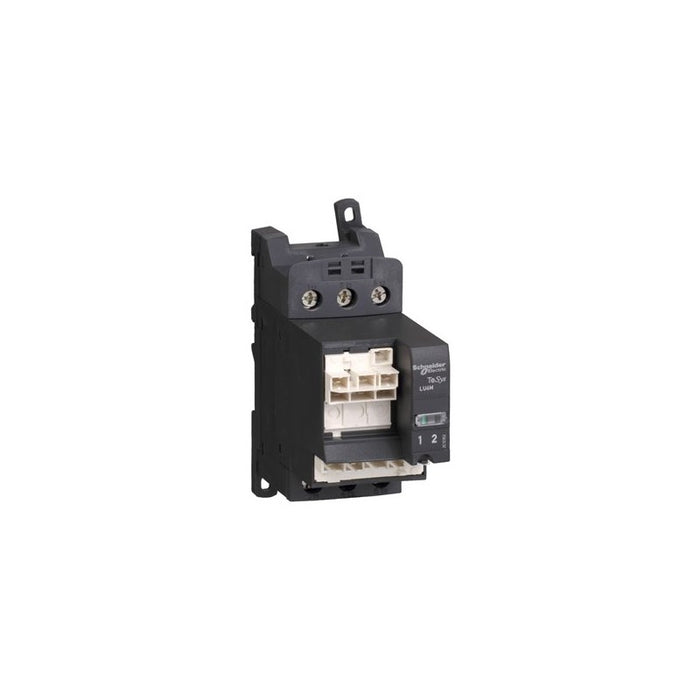

| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 690 V AC power circuit |
| Network frequency | 40...60 Hz |
| Inrush restraint duration | 25 ms AC 15 ms DC |
| Operating time | 150 ms with change of direction 75 ms without change of direction |
| Standards | EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier |
| Product Certifications | CE UL CSA CCC EAC ASEFA ATEX Marine |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Fixing mode | Clipped (DIN rail) Screw-fixed (plate) |
| Connections - terminals | Control circuit screw clamp terminals 1 0.0005â¦0.002 in² (0.34â¦1.5 mm²) 0.1 in (3 mm)) flexible with cable end Control circuit screw clamp terminals 1 0.001â¦0.002 in² (0.75â¦1.5 mm²) 0.1 in (3 mm)) flexible without cable end Control circuit screw clamp terminals 1 0.001â¦0.002 in² (0.75â¦1.5 mm²) 0.1 in (3 mm)) rigid Control circuit screw clamp terminals 2 0.0005â¦0.002 in² (0.34â¦1.5 mm²) 0.1 in (3 mm)) flexible with cable end Control circuit screw clamp terminals 2 0.001â¦0.002 in² (0.75â¦1.5 mm²) 0.1 in (3 mm)) flexible without cable end Control circuit screw clamp terminals 2 0.001â¦0.002 in² (0.75â¦1.5 mm²) 0.1 in (3 mm)) rigid Power circuit screw clamp terminals 1 0.002â¦0.02 in² (1â¦10 mm²) 0.2 in (4 mm)) rigid Power circuit screw clamp terminals 1 0.002â¦0.009 in² (1â¦6 mm²) 0.2 in (4 mm)) flexible with cable end Power circuit screw clamp terminals 1 0.004â¦0.02 in² (2.5â¦10 mm²) 0.2 in (4 mm)) flexible without cable end Power circuit screw clamp terminals 2 0.002â¦0.009 in² (1â¦6 mm²) 0.2 in (4 mm)) flexible with cable end Power circuit screw clamp terminals 2 0.002â¦0.009 in² (1â¦6 mm²) 0.2 in (4 mm)) rigid Power circuit screw clamp terminals 2 0.002â¦0.009 in² (1.5â¦6 mm²) 0.2 in (4 mm)) flexible without cable end |
| Tightening torque | Control circuit: 7.08â¦10.6 lbf.in (0.8â¦1.2 N.m) flat screwdriver 0.2 in (5 mm) Control circuit: 7.08â¦10.6 lbf.in (0.8â¦1.2 N.m) Philips No 2 screwdriver 0.2 in (5 mm) Power circuit: 16.8â¦22.1 lbf.in (1.9â¦2.5 N.m) flat screwdriver 0.2 in (6 mm) Power circuit: 16.8â¦22.1 lbf.in (1.9â¦2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm) Power circuit: 16.8â¦22.1 lbf.in (1.9â¦2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm) |
| Width | 1.8 in (45 mm) |
| Height | 4.5 in (115 mm) |
| Depth | 4.4 in (113 mm) |
| Product Weight | 0.937 lb(US) (0.425 kg) |
| Compatibility code | LU6MB |
