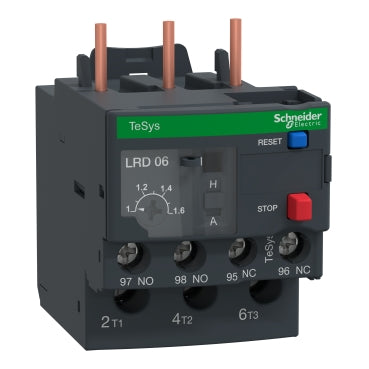

The Schneider Electric LRD06 is a differential thermal overload relay from the TeSys Deca (TeSys D) series, designed for motor protection in industrial applications. This 3-pole bimetallic overload relay detects overcurrents in motor lines and works with LC1D contactors to disconnect power when an overload is detected, minimizing damage to motor windings. The relay features an adjustable trip current range of 1 to 1.6 A and operates under Class 10A tripping characteristics per IEC 60947-4-1. It includes single-phase sensitivity for phase unbalance and phase loss protection, and offers both manual and automatic reset options via an integrated dial. The LRD06 is suitable for AC circuits up to 690V and is compatible with LC1D09 through LC1D38 contactors. The unit incorporates screw clamp terminals for easy installation and meets multiple international standards including IEC, UL, CSA, CCC, EAC, ATEX, and Marine certifications.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Thermal Overload Relay
- Product Family / Series: TeSys Deca (TeSys D)
- Series: D-Line
- Device Short Name: LRD
- Relay Type: Differential Thermal Overload Relay
- Relay Application: Motor protection
Product Specifications
- thermal_protection_adjustment_range: 1 to 1.6 A
- tripping_class: Class 10A conforming to IEC 60947-4-1
- rated_insulation_voltage: 690 V AC (IEC 60947-4-1), 600 V AC (UL/CSA)
- number_of_poles: 3
- contact_configuration: 1NO + 1NC
- contact_rating: 10 A
- frequency_range: 0 to 400 Hz
- operating_temperature_range: -20 to 60 °C
- maximum_operating_temperature: 70 °C
- ip_rating: IP20
- terminal_type: Screw clamp
- reset_method: Manual or automatic (switchable)
- mounting_type: Direct mount (contactor or stand-alone)
- compatible_contactors: LC1D09 to LC1D38
- network_type: AC, DC
Additional Details
- Country of Origin*: France
- Certifications / Approvals: IEC, UL, CSA, CCC, EAC, ATEX, Marine, RoHS/REACH (Green Premium compliant)
- Standards: EN 60947-4-1/60947-5-1, IEC 60947-4-1/60947-5-1, UL 508, CSA C22.2 No. 14
- Ean Code: 3389110346763
*Country of origin may vary.
Measurements
- Weight: 0.124 kg
- Dimensions: 70 mm L x 45 mm W x 66 mm H
- Depth: 70 mm
- Width: 45 mm
- Height: 66 mm
