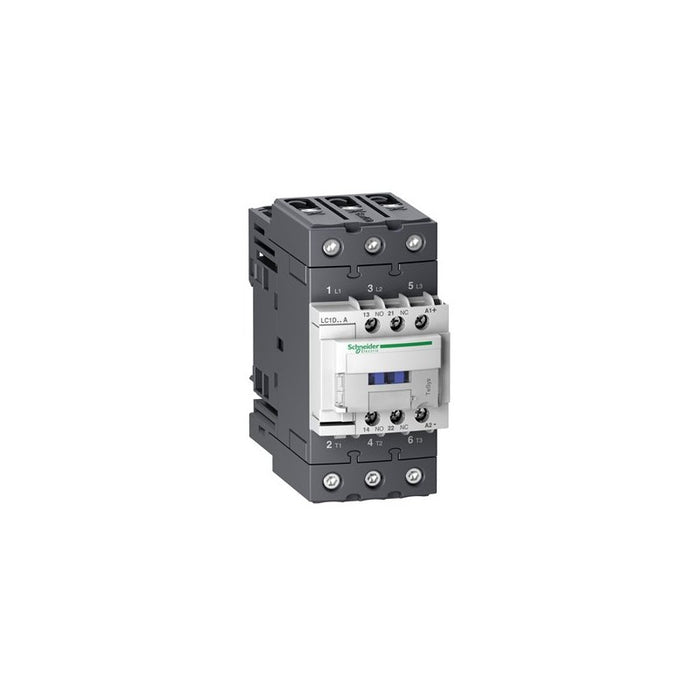

The Schneider Electric LC1D65ABD is a TeSys D series IEC contactor designed for motor control and direct-on-line starting applications. This non-reversing, 3-pole contactor features three normally open power contacts and is rated for AC-3 duty at 65 A up to 440 V AC, handling motors up to 40 HP at 480 VAC. It utilizes a 24 V DC coil and is suitable for utilization categories AC-1 and AC-3. The contactor supports screw clamp terminal connections for both power and control circuits, enabling secure wire termination. It is designed for DIN rail or surface mounting and offers high reliability with long mechanical and electrical life. The TeSys D series is widely used for inductive motor control and resistive load switching in industrial automation and motor control applications.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: IEC Contactor
- Product Family / Series: TeSys D
- Series: LC1D
- Model Number: LC1D65ABD
- Contact Type: Non-Reversing
- Application: Motor control, Direct-on-line starting
Product Specifications
- number_of_poles: 3 Pole
- power_contact_configuration: 3 NO (3 Normally Open)
- rated_operational_current_ac3: 65 A at 440 V AC
- rated_operational_current_ac1: 80 A at 440 V AC
- rated_operational_voltage: 690 V AC, 300 V DC
- coil_voltage: 24 V DC
- coil_power_consumption: 7.4 W
- frequency: 50/60 Hz
- motor_power_rating_480vac: 40 HP
- utilization_category: AC-1, AC-3
- sccr: 100 kA
- terminal_type: Screw Clamp
- auxiliary_contacts: 1 NO + 1 NC
- operating_cycles: 3600 cycles/hr
- ip_rating: IP2X
Additional Details
- Certifications / Approvals: CE, CSA, IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, UL, DNV, GL, GOST, RINA
- Mounting: DIN Rail, Surface
- Operating Temperature: -5 to 60 °C
- Storage Temperature: -40 to 70 °C
Measurements
- Dimensions: 55 mm W x 120 mm D x 122 mm H
