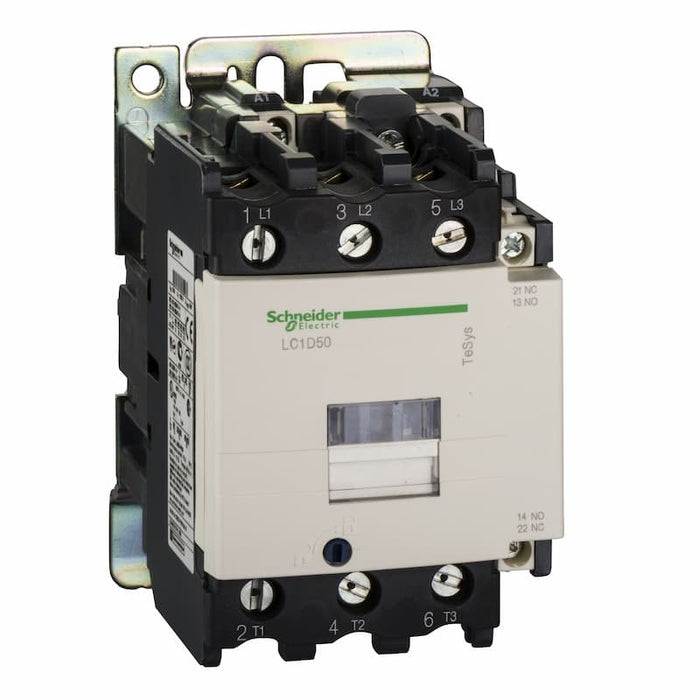

| Characteristic | Value(s) |
|---|---|
| Motor power kW | 30 kW at 440 V AC 50 Hz 30 kW at 500 V AC 50 Hz 33 kW at 660...690 V AC 50 Hz 15 kW at 220...230 V AC 50 Hz 30 kW at 1000 V AC 50 Hz 22 kW at 380...400 V AC 50 Hz 25 kW at 415 V AC 50 Hz |
| Motor power hp | 15 hp at 200/208 V AC 60 Hz for 3 phases motors 15 hp at 230/240 V AC 60 Hz for 3 phases motors 40 hp at 460/480 V AC 60 Hz for 3 phases motors 40 hp at 575/600 V AC 60 Hz for 3 phases motors 3 hp at 115 V AC 60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for control circuit 80 A (at 60 °C) for power circuit |
| Irms rated making capacity | 900 A at 440 V for power circuit conforming to IEC 60947 140 A AC for control circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 900 A at 440 V for power circuit conforming to IEC 60947 |
| Associated fuse rating | 100 A gG at <= 690 V coordination type 2 for power circuit 10 A gG for control circuit conforming to IEC 60947-5-1 100 A gG at <= 690 V coordination type 1 for power circuit |
| Power dissipation per pole | 3.7 W AC-3 9.6 W AC-1 |
| [Ui] rated insulation voltage | Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Control circuit: 690 V conforming to IEC 60947-1 Power circuit: 690 V conforming to IEC 60947-1 Control circuit: 600 V CSA certified Control circuit: 600 V UL certified |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 6000000 cycles |
| Control circuit type | AC at 60 Hz |
| Coil technology | Without built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits | 1...1.1 Uc (55â¦70 °C):operational AC 50 Hz 0.3...0.6 Uc (-40â¦70 °C):drop-out AC 60 Hz 0.85...1.1 Uc (-40â¦55 °C):operational AC 60 Hz |
| Inrush power in VA | 140 VA cos phi 0.75 (at 20 °C) 160 VA cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 20 °C) 15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 4â¦5 W at 50/60 Hz for control circuit |
| Operating time | 4...19 ms opening 12...26 ms closing |
| Connections - terminals | Control circuit: screw clamp terminals 1 1â¦4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1â¦4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1â¦2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1â¦2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw terminals 1 2.5â¦25 mm² - cable stiffness: rigid Power circuit: screw terminals 2 2.5â¦16 mm² - cable stiffness: rigid Power circuit: screw terminals 1 2.5â¦25 mm² - cable stiffness: flexible without cable end Power circuit: screw terminals 2 2.5â¦16 mm² - cable stiffness: flexible without cable end Power circuit: screw terminals 1 2.5â¦25 mm² - cable stiffness: flexible with cable end Power circuit: screw terminals 2 2.5â¦10 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1â¦4 mm² - cable stiffness: rigid Control circuit: screw clamp terminals 2 1â¦4 mm² - cable stiffness: rigid |
| Tightening torque | Power circuit: 5 N.m - on screw terminal - with screwdriver flat à 6 to à 8 mm Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2 Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat à 6 mm Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Terminals description ISO n°1 | (A1-A2)CO (A1-A2)CO (13-14)NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Mounting support | Rail Plate |
