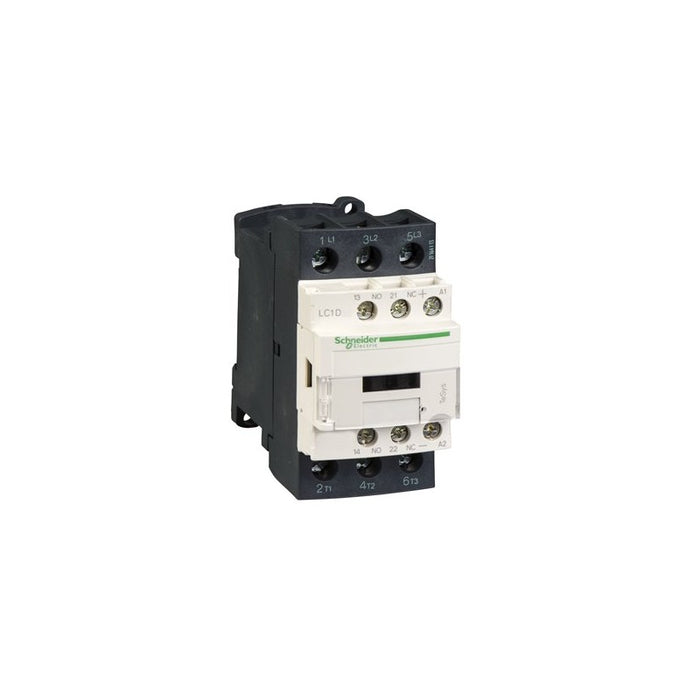

The LC1D25BD is a three-pole IEC contactor from Schneider Electric's TeSys D series, designed for reliable motor control and resistive load applications in industrial environments. It features a 24 V DC coil and is rated for 25 A at AC-3 duty, suitable for motors up to 11 kW at 400 V or 15 HP at 480 VAC. The contactor includes 3 normally open (NO) main contacts and integrated 1 NO + 1 NC auxiliary contacts. Built with screw clamp terminals for secure connections, it offers robust performance with mechanical durability exceeding 10 million operations. The unit supports utilization categories AC-1, AC-3, and AC-4, and can handle rated operational voltages up to 690 V AC. Compact and versatile, it can be mounted on DIN rail or directly to panels, making it ideal for motor starters, pumps, compressors, fans, conveyors, HVAC systems, and industrial automation applications.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: IEC Contactor
- Product Family / Series: TeSys D
- Device Short Name: LC1D
- Contact Type: Nonreversing
- Catalog Number: LC1D25BD
Product Specifications
- poles: 3P (3 NO)
- auxiliary_contacts: 1 NO + 1 NC
- rated_operational_current_ac3: 25 A at 400-440 V
- rated_operational_current_ac1: 40 A at 400-440 V
- rated_operational_voltage: 690 V AC
- coil_voltage: 24 V DC
- coil_power: 5.4 W
- motor_power_400v: 11 kW at 400 V AC-3
- motor_power_480v: 15 HP at 480 V AC
- motor_power_230v: 5.5 kW at 230 V AC-3
- motor_power_500v: 15 kW at 500 V AC-3
- utilization_category: AC-1, AC-3, AC-4
- frequency: 50/60 Hz
- sccr_rating: Up to 100 kA
- mechanical_durability: 10 million operations
- operating_temperature: -5 to 60 °C
- storage_temperature: -40 to 70 °C
- ip_protection: IP20
- terminal_type: Screw clamp
- mounting: DIN rail or panel mount
Additional Details
- Country of Origin*: Indonesia
- Lifecycle Status: Green Premium product
- Certifications / Approvals: UL 508, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, CE, BV, CCC, DNV, GL, GOST, LROS, RINA
- Rohs Compliant: Yes, since 0627
- Warranty Period: 18 months
- Ean Gtin: 3389110355994
*Country of origin may vary.
Measurements
- Weight: 0.53 kg
- Dimensions: 45 mm (W) × 85 mm (H) × 101 mm (D)
