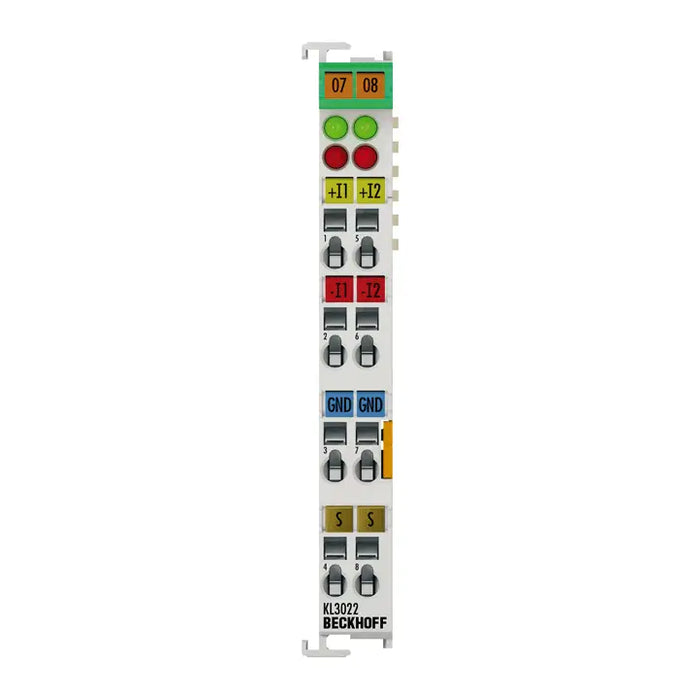

The KL3022 is a 2-channel analog input bus terminal designed for current signal processing in industrial automation applications. It accepts standard 4 to 20 mA current loop signals and converts them with 12-bit resolution. The digitized data is transmitted in electrically isolated form via the K-bus to higher-level controllers. Featuring differential inputs with a common internal ground potential, the terminal includes built-in diagnostics for open lead and overload detection. Status is communicated to the controller via the K-bus, with run LEDs indicating data exchange and error LEDs signaling overload or broken wire conditions. The terminal is compatible with Beckhoff's Bus Coupler systems and supports pluggable wiring for simplified installation and maintenance.
Item Details
- Brand Name: Beckhoff
- Manufacturer: Beckhoff Automation
- Item Type Name: Bus Terminal, 2-Channel Analog Input
- Product Family / Series: KL3xxx Analog Input Terminals
Product Specifications
- number_of_channels: 2
- input_signal_range: 4 to 20 mA
- resolution: 12 bit
- input_type: Differential
- measurement_error: < ±0.3% (relative to full scale value)
- surge_voltage_resistance: 35 V DC
- electrical_isolation: 500 V (K-bus/signal voltage)
- current_consumption_k_bus: typ. 60 mA
- bit_width_process_image: input: 2 x 16 bit data (2 x 8 bit control/status optional)
- operating_temperature: -25 to +60 °C
- storage_temperature: -40 to +85 °C
- relative_humidity: 95%, no condensation
- protection_rating: IP20
- vibration_shock_resistance: conforms to EN 60068-2-6/EN 60068-2-27
- emc_immunity_emission: conforms to EN 61000-6-2/EN 61000-6-4
Additional Details
- Lifecycle Status: regular delivery
- Certifications / Approvals: CE, UL, ATEX, IECEx, DNV GL
- Power Supply: via the K-bus
- Pluggable Wiring: for all KSxxxx Bus Terminals
Measurements
- Weight: approx. 70 g
