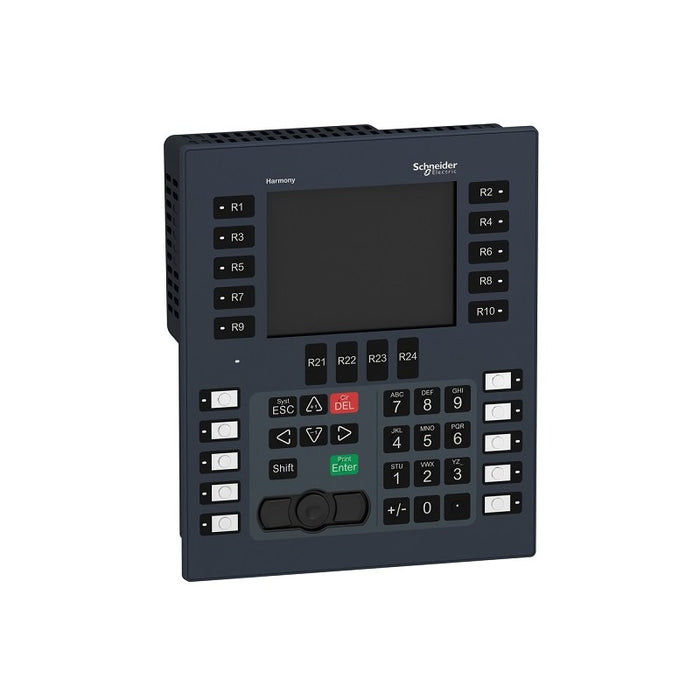

This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 14 dynamic function keys, 10 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony GK |
| Product or Component Type | Touchscreen panel with keypad |
| Display colour | 65536 colours |
| Display size | 5.7 inch |
| Supply | External source |
| Operating System | Harmony |
| Processor name | CPU RISC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Display Type | Backlit colour TFT LCD |
| Display Resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
| Brightness | 16 levels via touch panel |
| Character font | Korean Taiwanese (traditional Chinese) ASCII (European characters) Japanese (ANK, Kanji) Chinese (simplified Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 30 A |
| Power Consumption in W | 7.7 W |
| Number of dynamic function keys symb | 14 with LED |
| Number of static function keys | 10 with LED and labels |
| Number of SERVICE keys | 8 |
| Number of alphanumeric keys | 12 |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Number of pages | Limited by internal memory capacity |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Processor frequency | 333 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery 128 MB flash EPROM application memory |
| Downloadable protocols | Telemecanique Modicon FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Memory type | Up to 32 GB SD card RAM Up to 32 GB SDHC card RAM |
| Integrated connection type | <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s) USB 2.0 type A master Modicon M340 terminal port communication <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link removable screw terminal block power supply RJ45 Ethernet TCP/IP USB 2.0 type mini B |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Mounting Mode | Flush mounting |
| Fixing Mode | By 10 spring clips |
| Front material | Aluminium alloy |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 8.7 in (220.3 mm) |
| Height | 10.4 in (265 mm) |
| Depth | 2.8 in (70 mm) |
| Cut-out dimensions | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
| Product Weight | 4.0 lb(US) (1.8 kg) |
