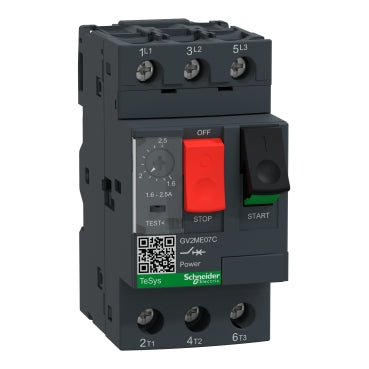

The GV2ME07C is a three-pole thermal magnetic motor circuit breaker from the Schneider Electric TeSys Deca series. This manual starter and motor protector provides thermal overload and magnetic short-circuit protection for motors with current ratings from 1.6 to 2.5 A. It features integrated push button control for start/stop operation and screw clamp terminals for secure electrical connections. The device is designed for DIN rail mounting in both vertical and horizontal positions and offers an IP20 degree of protection. The adjustable thermal trip mechanism allows precise current setting within the rated range, making it suitable for various motor protection applications in industrial automation, machine building, and process control systems. Approved to multiple international standards including IEC, UL, and CSA.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Motor Circuit Breaker
- Product Family / Series: TeSys Deca
- Series: GV2ME
- Control Type: Push button
Product Specifications
- number_of_poles: 3
- thermal_current_range: 1.6 to 2.5 A
- rated_operational_voltage: 690 V AC
- breaking_capacity: 3 kA at 690 V AC (50/60 Hz)
- trip_type: Thermal magnetic
- frequency: 50/60 Hz
- terminal_type: Screw clamp
- operating_temperature_range: -20 to +60 °C
- motor_power_rating: 0.75 kW / 1.5 hp
- enclosure_rating: IP20 / IK04
Additional Details
- Country of Origin*: China
- Certifications / Approvals: EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1, NF C 63-120, NF C 63-650, NF C 79-130, UL 508, VDE 0113, VDE 0660, CSA C22.2
- Mounting Type: DIN rail
- Mounting Position: Vertical and horizontal
*Country of origin may vary.
Measurements
- Dimensions: 45 mm W x 78 mm D x 89 mm H
