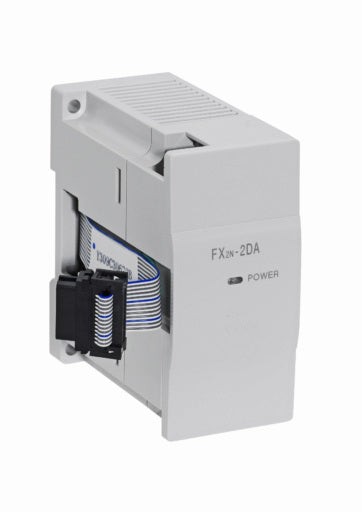

The Mitsubishi FX2N-2DA is a 2-channel analog output expansion module designed for use with the MELSEC-F series programmable logic controllers, including FX0N, FX1N, FX2N, FX2NC, FX3G, FX3GC, FX3U, and FX3UC PLCs. This special function block provides high-precision 12-bit digital-to-analog conversion with independent channel configuration, allowing each output to be set for either voltage or current signals. It supports voltage outputs of 0-10V DC and 0-5V DC, as well as current output of 4-20mA DC, making it versatile for industrial control applications such as variable speed drives, actuator positioning, valve control, and process automation. The module occupies 8 I/O points and features photo-coupler isolation between analog and digital circuits. Resolution is 2.5mV for 0-10V range and 4µA for 4-20mA range, with output accuracy of ±0.1V for voltage and ±0.16mA for current.
Item Details
- Brand Name: Mitsubishi
- Manufacturer: Mitsubishi Electric
- Item Type Name: Analog Output Module
- Product Family / Series: MELSEC-F Series
- Series: FX2N
- Module Type: Special Function Block
- Compatible Plc: FX0N, FX1N, FX2N, FX2NC, FX3G, FX3GC, FX3U, FX3UC
Product Specifications
- output_channels: 2 independent analog outputs
- resolution: 12-bit
- voltage_output_ranges: 0-10V DC, 0-5V DC
- current_output_range: 4-20mA DC
- voltage_output_accuracy: ±0.1V
- current_output_accuracy: ±0.16mA
- resolution_0_10v: 2.5mV per step
- resolution_0_5v: 1.25mV per step
- resolution_4_20ma: 4µA per step
- conversion_speed: Approx. 2 ms/channel
- digital_range: 0 to 4000 (12-bit)
- io_points_occupied: 8 points
- power_supply: 5V DC from main unit
- isolation: Photo-coupler isolation between analog and digital circuits
- mounting: Direct mount on FX2N main unit or extension base
- operating_temperature: 0°C to 55°C
- storage_temperature: -25°C to 75°C
- relative_humidity: 5% to 95% RH (non-condensing)
Additional Details
- Country of Origin*: Japan
- Certifications / Approvals: CE, UL/cUL, KC, ABS, DNV GL, KR, NK, EAC, UKCA
- Programming Software: GX Developer or GX Works2
*Country of origin may vary.
Measurements
- Weight: 0.2 kg
- Dimensions: 43 mm × 90 mm × 87 mm (W × H × D)
