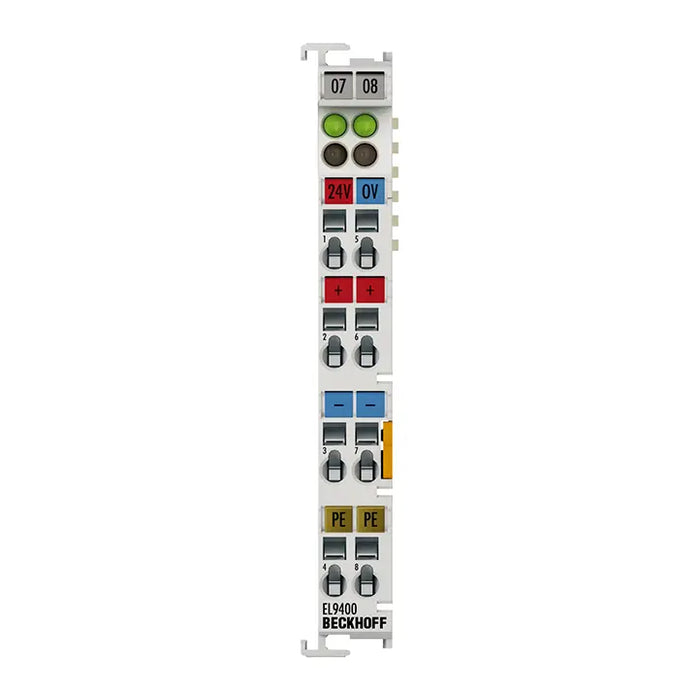

The Beckhoff EL9400 is a compact power supply terminal designed for EtherCAT I/O systems. It refreshes the E-bus, which facilitates data exchange between EtherCAT couplers and terminals, providing an additional 2 A current to support configurations with a large number of EtherCAT terminals. The terminal features a 24 V DC input with a tolerance range of -15% to +20% and delivers a regulated 5 V output for E-bus supply. It also provides 24 V DC supply of up to 10 A for power contacts, enabling the establishment of additional potential groups. The EL9400 is housed in a compact 12 mm wide polycarbonate enclosure with signal LEDs for diagnostic purposes, rated IP20, and mounts on standard 35 mm DIN rail. It operates reliably in industrial environments from 0°C to 55°C and complies with EN 61000-6-2 and EN 61000-6-4 EMC standards.
Item Details
- Brand Name: Beckhoff
- Manufacturer: Beckhoff Automation
- Item Type Name: EtherCAT Power Supply Terminal
- Product Family / Series: EL9xxx System Terminals
Product Specifications
- input_voltage: 24 V DC (-15%/+20%)
- input_current: 70 mA typ. + (E-bus/4)
- output_voltage_ebus: 5 V DC
- output_current_ebus: 2 A
- power_contacts_supply: 24 V DC, up to 10 A
- electrical_isolation: 500 V (E-bus/field voltage)
- operating_temperature: 0 to +55 °C
- storage_temperature: -25 to +85 °C
- relative_humidity: 95%, no condensation
- emc_immunity: EN 61000-6-2
- emc_emission: EN 61000-6-4
- vibration_shock_resistance: EN 60068-2-6/EN 60068-2-27
- protection_rating: IP20
Additional Details
- Country of Origin*: Germany
- Certifications / Approvals: CE, UL, ATEX, IECEx
- Ex Marking Atex: II 3 G Ex nA IIC T4 Gc
- Ex Marking Iecex: Ex ec IIC T4 Gc
- Housing Material: Polycarbonate
- Wiring: Pluggable wiring for all ESxxxx terminals
- Diagnostic Features: Signal LEDs
*Country of origin may vary.
Measurements
- Weight: 65 g
- Dimensions: 12 mm x 100 mm x 68 mm (W x H x D)
- Mounting: 35 mm DIN rail, conforming to EN 60715 with lock
