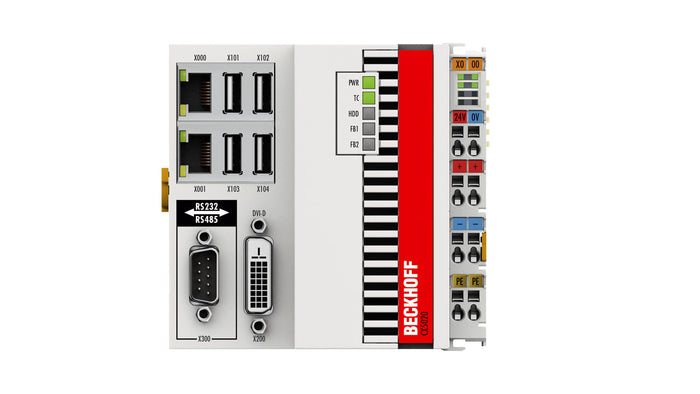

Product Information
Processor: Intel Atom® Z530, 1.6 GHz clock frequency
Number of cores: 1
Flash memory: slot for Compact Flash card, 128 MB included (expandable)
Main memory: 512 MB RAM (expandable ex factory to 1 GB)
Persistent memory: integrated 1-second UPS (1 MB on Compact Flash card)
Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock: internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded CE 6, Windows Embedded Standard 2009
Control software: TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition
Power supply: 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus: 2 A
Max. power consumption: 13 W
Dimensions (W x H x D): 106 mm x 100 mm x 92 mm
Weight: approx. 575 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protection rating: IP20
Approvals/markings: CE, UL, with CX1900-0105 ordering option: ATEX
Ex marking: II 3 G Ex nA IIC T4 Gc
TwinCAT 3 platform level: Performance (40); please see here for an overview of all the TwinCAT 3 platform level
