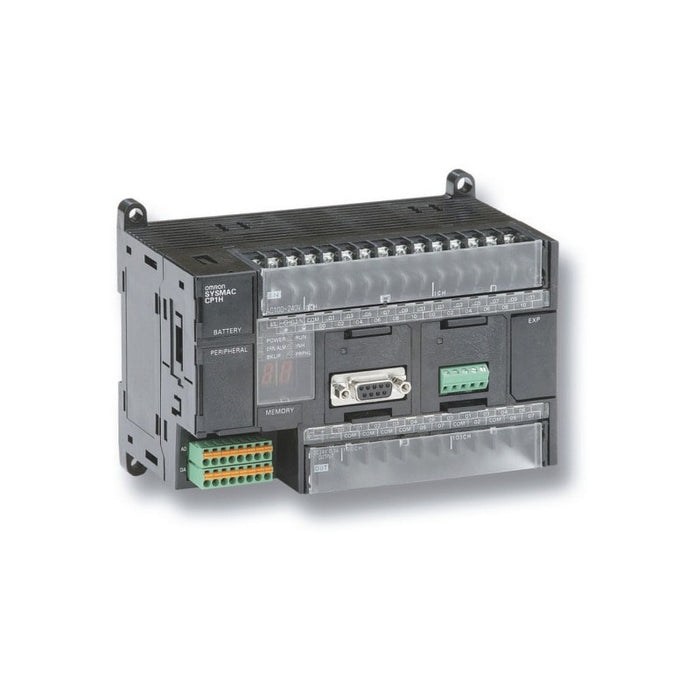

The CP1H-XA40DR-A is a compact programmable logic controller CPU unit from Omron's CP1H-XA series, designed for comprehensive machine automation and high-precision positioning control. This unit features 40 total I/O points with 24 digital DC inputs and 16 relay outputs rated at 2 A. It operates on 100-240 VAC supply voltage at 50/60 Hz and includes integrated analog I/O capabilities with 4 analog inputs and 2 analog outputs offering 1/12,000 resolution. The controller provides 20K steps of program memory and 32K words of data memory. Built-in capabilities include 4 encoder inputs operating at 100 kHz, pulse outputs for 4-axis position control at 100 kHz, 8 interrupt inputs, and high-speed counters for differential phases. It supports serial communications via optional RS-232C or RS-485 boards and Ethernet connectivity through an optional board. The unit features a USB programming port and DIN rail mounting.
Item Details
- Brand Name: Omron
- Manufacturer: Omron
- Item Type Name: Programmable Logic Controller CPU Unit
- Product Family / Series: CP1H
- Series: SYSMAC CP1H-XA
Product Specifications
- io_points: 40 (24 inputs, 16 outputs)
- input_type: 24 V DC digital
- output_type: Relay, 2 A
- supply_voltage: 100-240 V AC, 50/60 Hz
- program_memory: 20K steps
- data_memory: 32K words
- analog_inputs: 4 (1/12,000 resolution)
- analog_outputs: 2 (1/12,000 resolution)
- encoder_inputs: 4 (100 kHz)
- pulse_outputs: 4 axes, 100 kHz
- high_speed_counters: 100 kHz, 4 axes differential phases
- interrupt_inputs: 8
- communication_ports: 2 (RS-232C/RS-485/Ethernet via option boards)
- programming_interface: USB port
- current_consumption_5v: 0.43 A
- current_consumption_24v: 0.18 A
Additional Details
- Mounting: DIN rail
Measurements
- Dimensions: 110 x 150 x 85 mm (H x W x D)
