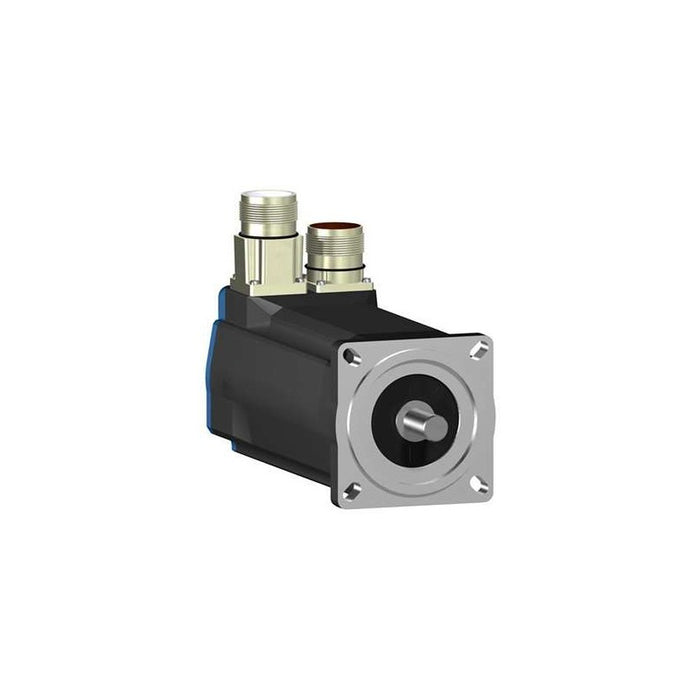

BSH0703T01A2A Schneider

BSH0703T01A2A Schneider

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 8000 rpm
Continuous stall torque 24.8 lbf.in (2.8 N.m) LXM05AD28M2, 200...240 V, single phase
24.8 lbf.in (2.8 N.m) LXM05BD28M2, 200...240 V, single phase
24.8 lbf.in (2.8 N.m) LXM05CD28M2, 200...240 V, single phase
23.01 lbf.in (2.6 N.m) LXM32.D18M2 6 A, 230 V, single phase
25.05 lbf.in (2.83 N.m) LXM15LD28M3, 230 V, three phase
24.8 lbf.in (2.8 N.m) LXM05AD28F1 6 A, 110...120 V, single phase
24.8 lbf.in (2.8 N.m) LXM05AD42M3X, 200...240 V, three phase
24.8 lbf.in (2.8 N.m) LXM05BD28F1, 110...120 V, single phase
24.8 lbf.in (2.8 N.m) LXM05BD42M3X, 200...240 V, three phase
24.8 lbf.in (2.8 N.m) LXM05CD28F1, 110...120 V, single phase
24.8 lbf.in (2.8 N.m) LXM05CD42M3X, 200...240 V, three phase
Peak stall torque 65.32 lbf.in (7.38 N.m) LXM05AD28F1, 110...120 V, single phase
65.32 lbf.in (7.38 N.m) LXM05AD28M2, 200...240 V, single phase
65.32 lbf.in (7.38 N.m) LXM05BD28F1, 110...120 V, single phase
65.32 lbf.in (7.38 N.m) LXM05BD28M2, 200...240 V, single phase
65.32 lbf.in (7.38 N.m) LXM05CD28F1, 110...120 V, single phase
65.32 lbf.in (7.38 N.m) LXM05CD28M2, 200...240 V, single phase
65.5 lbf.in (7.4 N.m) LXM32.D18M2 6 A, 230 V, single phase
65.32 lbf.in (7.38 N.m) LXM15LD28M3, 230 V, three phase
90.72 lbf.in (10.25 N.m) LXM05AD42M3X 6 A, 200...240 V, three phase
90.72 lbf.in (10.25 N.m) LXM05BD42M3X, 200...240 V, three phase
90.72 lbf.in (10.25 N.m) LXM05CD42M3X, 200...240 V, three phase
Nominal output power 750 W LXM05AD28M2, 200...240 V, single phase
750 W LXM05BD28M2, 200...240 V, single phase
750 W LXM05CD28M2, 200...240 V, single phase
750 W LXM05AD28F1, 110...120 V, single phase
750 W LXM05BD28F1, 110...120 V, single phase
750 W LXM05CD28F1, 110...120 V, single phase
900 W LXM32.D18M2 6 A, 230 V, single phase
1250 W LXM15LD28M3, 230 V, three phase
750 W LXM05AD42M3X 6 A, 200...240 V, three phase
750 W LXM05BD42M3X, 200...240 V, three phase
750 W LXM05CD42M3X, 200...240 V, three phase
Nominal torque 21.2 lbf.in (2.4 N.m) LXM05AD28M2, 200...240 V, single phase
21.2 lbf.in (2.4 N.m) LXM05BD28M2, 200...240 V, single phase
21.2 lbf.in (2.4 N.m) LXM05CD28M2, 200...240 V, single phase
21.2 lbf.in (2.4 N.m) LXM05AD28F1, 110...120 V, single phase
21.2 lbf.in (2.4 N.m) LXM05BD28F1, 110...120 V, single phase
21.2 lbf.in (2.4 N.m) LXM05CD28F1, 110...120 V, single phase
18.6 lbf.in (2.1 N.m) LXM32.D18M2 6 A, 230 V, single phase
17.7 lbf.in (2 N.m) LXM15LD28M3, 230 V, three phase
21.2 lbf.in (2.4 N.m) LXM05AD42M3X 6 A, 200...240 V, three phase
21.2 lbf.in (2.4 N.m) LXM05BD42M3X, 200...240 V, three phase
21.2 lbf.in (2.4 N.m) LXM05CD42M3X, 200...240 V, three phase
Nominal speed 3000 rpm LXM05AD28M2, 200...240 V, single phase
3000 rpm LXM05BD28M2 6 A, 200...240 V, single phase
3000 rpm LXM05CD28M2, 200...240 V, single phase
3000 rpm LXM05AD42M3X, 200...240 V, three phase
3000 rpm LXM05BD42M3X, 200...240 V, three phase
3000 rpm LXM05CD42M3X, 200...240 V, three phase
3000 rpm LXM05AD28F1, 110...120 V, single phase
3000 rpm LXM05BD28F1, 110...120 V, single phase
3000 rpm LXM05CD28F1, 110...120 V, single phase
4000 rpm LXM32.D18M2 6 A, 230 V, single phase
6000 rpm LXM15LD28M3, 230 V, three phase
Product compatibility LXM05AD28F1 110...120 V single phase
LXM05AD28M2 200...240 V single phase
LXM05BD28F1 110...120 V single phase
LXM05BD28M2 200...240 V single phase
LXM05CD28F1 110...120 V single phase
LXM05CD28M2 200...240 V single phase
LXM32.D18M2 230 V single phase
LXM05AD42M3X 200...240 V three phase
LXM05BD42M3X 200...240 V three phase
LXM05CD42M3X 200...240 V three phase
LXM15LD28M3 230 V three phase
Shaft end Untapped
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake Without
Mounting Support International standard flange
Electrical Connection Rotatable right-angled connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 05
Lexium 15
Lexium 32
supply voltage max 480 V
Phase Three phase
Continuous stall current 7 A
maximum continuous power 1.7 W
Maximum current Irms 18 A LXM32.D18M2
30.9 A LXM15LD28M3
29.2 A LXM05AD28F1
29.2 A LXM05AD28M2
29.2 A LXM05AD42M3X
29.2 A LXM05BD28F1
29.2 A LXM05BD28M2
29.2 A LXM05BD42M3X
29.2 A LXM05CD28F1
29.2 A LXM05CD28M2
29.2 A LXM05CD42M3X
Maximum permanent current 29.2 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.6 in (14 mm)
Shaft length 1.2 in (30 mm)
Feedback type Single turn SinCos Hiperface
Motor flange size 2.8 in (70 mm)
Number of motor stacks 3
Torque constant 0.44 N.m/A 248 °F (120 °C)
Back emf constant 29 V/krpm 248 °F (120 °C)
Number of motor poles 3.0
Rotor inertia 0.58 kg.cm²
Stator resistance 0.91 Ohm 68 °F (20 °C)
Stator inductance 2.45 mH 68 °F (20 °C)
Stator electrical time constant 4.84 ms 68 °F (20 °C)
Maximum radial force Fr 400 N 6000 rpm
430 N 5000 rpm
460 N 4000 rpm
510 N 3000 rpm
580 N 2000 rpm
730 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
type of cooling Natural convection
Length 8.7 in (220 mm)
Centring collar diameter 2.4 in (60 mm)
centring collar depth 0.10 in (2.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.5 mm)
Circle diameter of the mounting holes 3.2 in (82 mm)
Product Weight 7.98 lb(US) (3.62 kg)
Sizing reference BSH0703T
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
