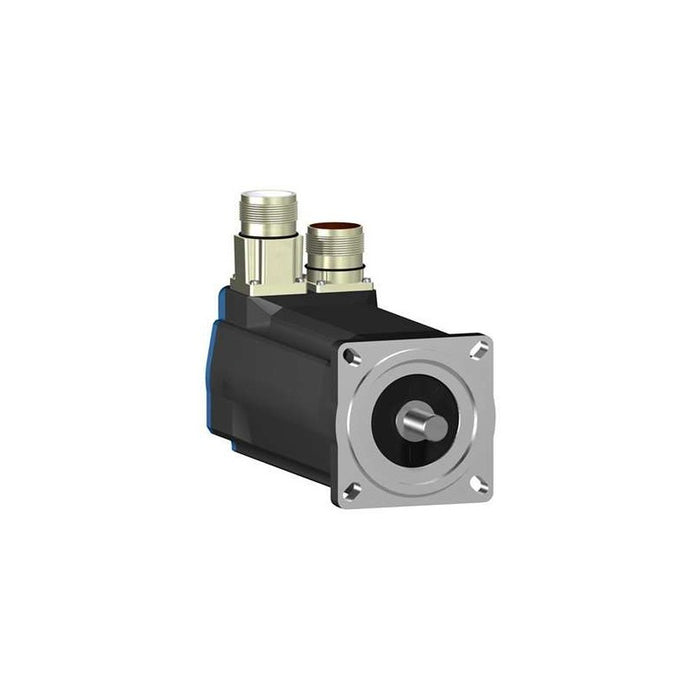

BSH0701T01A1A Schneider

BSH0701T01A1A Schneider

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 8000 rpm
Continuous stall torque 11.5 lbf.in (1.3 N.m) LXM32.U90M2 3 A, 230 V, single phase
12.4 lbf.in (1.4 N.m) LXM05AD10M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05BD10M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05CD10M3X 6 A, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD13M3, 230 V, single phase
12.4 lbf.in (1.4 N.m) LXM05AD10F1, 110...120 V, single phase
12.4 lbf.in (1.4 N.m) LXM05AD17M2, 200...240 V, single phase
12.4 lbf.in (1.4 N.m) LXM05BD10F1, 110...120 V, single phase
12.4 lbf.in (1.4 N.m) LXM05BD17M2, 200...240 V, single phase
12.4 lbf.in (1.4 N.m) LXM05CD10F1, 110...120 V, single phase
12.4 lbf.in (1.4 N.m) LXM05CD17M2, 200...240 V, single phase
12.4 lbf.in (1.4 N.m) LXM32.D18M2 6 A, 115 V, single phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 400 V, three phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 480 V, three phase
8.05 lbf.in (0.91 N.m) LXM15LU60N4, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD10N4, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD10N4, 400 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD10N4, 480 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD13M3, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD21M3, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM05AD17M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05BD17M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05CD17M3X, 200...240 V, three phase
Peak stall torque 31.0 lbf.in (3.5 N.m) LXM32.U90M2 3 A, 230 V, single phase
28.23 lbf.in (3.19 N.m) LXM15LD13M3, 230 V, single phase
21.42 lbf.in (2.42 N.m) LXM05AD10F1, 110...120 V, single phase
28.23 lbf.in (3.19 N.m) LXM05AD17M2, 200...240 V, single phase
21.42 lbf.in (2.42 N.m) LXM05BD10F1, 110...120 V, single phase
28.23 lbf.in (3.19 N.m) LXM05BD17M2, 200...240 V, single phase
21.42 lbf.in (2.42 N.m) LXM05CD10F1, 110...120 V, single phase
28.23 lbf.in (3.19 N.m) LXM05CD17M2, 200...240 V, single phase
31.0 lbf.in (3.5 N.m) LXM32.D18M2 6 A, 115 V, single phase
16.8 lbf.in (1.9 N.m) LXM15LU60N4, 400 V, three phase
16.8 lbf.in (1.9 N.m) LXM15LU60N4, 480 V, three phase
16.8 lbf.in (1.9 N.m) LXM15LU60N4, 230 V, three phase
25.76 lbf.in (2.91 N.m) LXM15LD10N4, 230 V, three phase
25.76 lbf.in (2.91 N.m) LXM15LD10N4, 400 V, three phase
25.76 lbf.in (2.91 N.m) LXM15LD10N4, 480 V, three phase
28.23 lbf.in (3.19 N.m) LXM15LD13M3, 230 V, three phase
28.23 lbf.in (3.19 N.m) LXM15LD21M3, 230 V, three phase
21.42 lbf.in (2.42 N.m) LXM05AD10M3X, 200...240 V, three phase
28.23 lbf.in (3.19 N.m) LXM05AD17M3X, 200...240 V, three phase
21.42 lbf.in (2.42 N.m) LXM05BD10M3X, 200...240 V, three phase
28.23 lbf.in (3.19 N.m) LXM05BD17M3X, 200...240 V, three phase
21.42 lbf.in (2.42 N.m) LXM05CD10M3X, 200...240 V, three phase
28.23 lbf.in (3.19 N.m) LXM05CD17M3X 6 A, 200...240 V, three phase
Nominal output power 500 W LXM32.U90M2 3 A, 230 V, single phase
350 W LXM32.D18M2 6 A, 115 V, single phase
400 W LXM05AD10M3X, 200...240 V, three phase
400 W LXM05BD10M3X, 200...240 V, three phase
400 W LXM05CD10M3X, 200...240 V, three phase
380 W LXM05AD10F1, 110...120 V, single phase
380 W LXM05BD10F1, 110...120 V, single phase
380 W LXM05CD10F1, 110...120 V, single phase
400 W LXM05AD17M2, 200...240 V, single phase
400 W LXM05BD17M2, 200...240 V, single phase
400 W LXM05CD17M2, 200...240 V, single phase
654 W LXM15LD13M3 6 A, 230 V, single phase
1000 W LXM15LD10N4, 400 V, three phase
1000 W LXM15LD10N4, 480 V, three phase
400 W LXM05AD17M3X, 200...240 V, three phase
400 W LXM05BD17M3X, 200...240 V, three phase
400 W LXM05CD17M3X, 200...240 V, three phase
440 W LXM15LU60N4, 230 V, three phase
564 W LXM15LD10N4, 230 V, three phase
586 W LXM15LU60N4, 400 V, three phase
586 W LXM15LU60N4, 480 V, three phase
654 W LXM15LD13M3, 230 V, three phase
654 W LXM15LD21M3, 230 V, three phase
Nominal torque 8.32 lbf.in (0.94 N.m) LXM32.U90M2 3 A, 230 V, single phase
11.06 lbf.in (1.25 N.m) LXM15LD13M3, 230 V, single phase
12.04 lbf.in (1.36 N.m) LXM32.D18M2 6 A, 115 V, single phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 230 V, three phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4 6 A, 400 V, three phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 480 V, three phase
10.89 lbf.in (1.23 N.m) LXM15LD10N4, 400 V, three phase
10.89 lbf.in (1.23 N.m) LXM15LD10N4, 480 V, three phase
11.06 lbf.in (1.25 N.m) LXM15LD10N4, 230 V, three phase
11.06 lbf.in (1.25 N.m) LXM15LD13M3, 230 V, three phase
11.06 lbf.in (1.25 N.m) LXM15LD21M3, 230 V, three phase
Nominal speed 5000 rpm LXM32.U90M2 3 A, 230 V, single phase
3000 rpm LXM05AD10F1, 110...120 V, single phase
3000 rpm LXM05BD10F1, 110...120 V, single phase
3000 rpm LXM05CD10F1, 110...120 V, single phase
3000 rpm LXM05AD10M3X, 200...240 V, three phase
3000 rpm LXM05BD10M3X, 200...240 V, three phase
3000 rpm LXM05CD10M3X, 200...240 V, three phase
8000 rpm LXM15LD10N4 6 A, 400 V, three phase
3000 rpm LXM05AD17M2, 200...240 V, single phase
3000 rpm LXM05BD17M2, 200...240 V, single phase
3000 rpm LXM05CD17M2, 200...240 V, single phase
3000 rpm LXM05AD17M3X, 200...240 V, three phase
3000 rpm LXM05BD17M3X, 200...240 V, three phase
3000 rpm LXM05CD17M3X, 200...240 V, three phase
5000 rpm LXM15LD13M3, 230 V, single phase
2500 rpm LXM32.D18M2 6 A, 115 V, single phase
5000 rpm LXM15LD10N4, 230 V, three phase
5000 rpm LXM15LD13M3, 230 V, three phase
5000 rpm LXM15LD21M3, 230 V, three phase
6000 rpm LXM15LU60N4, 230 V, three phase
8000 rpm LXM15LD10N4, 480 V, three phase
8000 rpm LXM15LU60N4, 400 V, three phase
8000 rpm LXM15LU60N4, 480 V, three phase
Product compatibility LXM05AD10F1 110...120 V single phase
LXM05AD17M2 200...240 V single phase
LXM05BD10F1 110...120 V single phase
LXM05BD17M2 200...240 V single phase
LXM05CD10F1 110...120 V single phase
LXM05CD17M2 200...240 V single phase
LXM15LD13M3 230 V single phase
LXM32.U90M2 230 V single phase
LXM32.D18M2 115 V single phase
LXM15LU60N4 230 V three phase
LXM05AD10M3X 200...240 V three phase
LXM05BD10M3X 200...240 V three phase
LXM05CD10M3X 200...240 V three phase
LXM15LD13M3 230 V three phase
LXM15LU60N4 400 V three phase
LXM15LU60N4 480 V three phase
LXM15LD10N4 400 V three phase
LXM05AD17M3X 200...240 V three phase
LXM05BD17M3X 200...240 V three phase
LXM05CD17M3X 200...240 V three phase
LXM15LD10N4 230 V three phase
LXM15LD10N4 480 V three phase
LXM15LD21M3 230 V three phase
Shaft end Untapped
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake Without
Mounting Support International standard flange
Electrical Connection Straight connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 15
Lexium 32
Lexium 05
supply voltage max 480 V
Phase Three phase
Continuous stall current 3.2 A
maximum continuous power 1.06 W
Maximum current Irms 10 A LXM32.D18M2
9 A LXM32.U90M2
9.9 A LXM15LD13M3
9.9 A LXM15LD21M3
9.9 A LXM15LU60N4
9.9 A LXM15LD10N4
Maximum permanent current 10.1 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.4 in (11 mm)
Shaft length 0.9 in (23 mm)
Feedback type Single turn SinCos Hiperface
Motor flange size 2.8 in (70 mm)
Number of motor stacks 1
Torque constant 0.44 N.m/A 248 °F (120 °C)
Back emf constant 26 V/krpm 248 °F (120 °C)
Number of motor poles 3.0
Rotor inertia 0.25 kg.cm²
Stator resistance 3.3 Ohm 68 °F (20 °C)
Stator inductance 6.75 mH 68 °F (20 °C)
Stator electrical time constant 3.73 ms 68 °F (20 °C)
Maximum radial force Fr 360 N 6000 rpm
380 N 5000 rpm
410 N 4000 rpm
460 N 3000 rpm
520 N 2000 rpm
660 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
type of cooling Natural convection
Length 6.06 in (154 mm)
Centring collar diameter 2.4 in (60 mm)
centring collar depth 0.10 in (2.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.5 mm)
Circle diameter of the mounting holes 3.2 in (82 mm)
Product Weight 4.9 lb(US) (2.2 kg)
Sizing reference BSH0701T
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)

Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
22,175.00 kr
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
0.00 kr
22,175.00 kr
0.00 kr
Need More?
Ach Direct Debit American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 8000 rpm
Continuous stall torque 11.5 lbf.in (1.3 N.m) LXM32.U90M2 3 A, 230 V, single phase
12.4 lbf.in (1.4 N.m) LXM05AD10M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05BD10M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05CD10M3X 6 A, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD13M3, 230 V, single phase
12.4 lbf.in (1.4 N.m) LXM05AD10F1, 110...120 V, single phase
12.4 lbf.in (1.4 N.m) LXM05AD17M2, 200...240 V, single phase
12.4 lbf.in (1.4 N.m) LXM05BD10F1, 110...120 V, single phase
12.4 lbf.in (1.4 N.m) LXM05BD17M2, 200...240 V, single phase
12.4 lbf.in (1.4 N.m) LXM05CD10F1, 110...120 V, single phase
12.4 lbf.in (1.4 N.m) LXM05CD17M2, 200...240 V, single phase
12.4 lbf.in (1.4 N.m) LXM32.D18M2 6 A, 115 V, single phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 400 V, three phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 480 V, three phase
8.05 lbf.in (0.91 N.m) LXM15LU60N4, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD10N4, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD10N4, 400 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD10N4, 480 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD13M3, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM15LD21M3, 230 V, three phase
12.4 lbf.in (1.4 N.m) LXM05AD17M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05BD17M3X, 200...240 V, three phase
12.4 lbf.in (1.4 N.m) LXM05CD17M3X, 200...240 V, three phase
Peak stall torque 31.0 lbf.in (3.5 N.m) LXM32.U90M2 3 A, 230 V, single phase
28.23 lbf.in (3.19 N.m) LXM15LD13M3, 230 V, single phase
21.42 lbf.in (2.42 N.m) LXM05AD10F1, 110...120 V, single phase
28.23 lbf.in (3.19 N.m) LXM05AD17M2, 200...240 V, single phase
21.42 lbf.in (2.42 N.m) LXM05BD10F1, 110...120 V, single phase
28.23 lbf.in (3.19 N.m) LXM05BD17M2, 200...240 V, single phase
21.42 lbf.in (2.42 N.m) LXM05CD10F1, 110...120 V, single phase
28.23 lbf.in (3.19 N.m) LXM05CD17M2, 200...240 V, single phase
31.0 lbf.in (3.5 N.m) LXM32.D18M2 6 A, 115 V, single phase
16.8 lbf.in (1.9 N.m) LXM15LU60N4, 400 V, three phase
16.8 lbf.in (1.9 N.m) LXM15LU60N4, 480 V, three phase
16.8 lbf.in (1.9 N.m) LXM15LU60N4, 230 V, three phase
25.76 lbf.in (2.91 N.m) LXM15LD10N4, 230 V, three phase
25.76 lbf.in (2.91 N.m) LXM15LD10N4, 400 V, three phase
25.76 lbf.in (2.91 N.m) LXM15LD10N4, 480 V, three phase
28.23 lbf.in (3.19 N.m) LXM15LD13M3, 230 V, three phase
28.23 lbf.in (3.19 N.m) LXM15LD21M3, 230 V, three phase
21.42 lbf.in (2.42 N.m) LXM05AD10M3X, 200...240 V, three phase
28.23 lbf.in (3.19 N.m) LXM05AD17M3X, 200...240 V, three phase
21.42 lbf.in (2.42 N.m) LXM05BD10M3X, 200...240 V, three phase
28.23 lbf.in (3.19 N.m) LXM05BD17M3X, 200...240 V, three phase
21.42 lbf.in (2.42 N.m) LXM05CD10M3X, 200...240 V, three phase
28.23 lbf.in (3.19 N.m) LXM05CD17M3X 6 A, 200...240 V, three phase
Nominal output power 500 W LXM32.U90M2 3 A, 230 V, single phase
350 W LXM32.D18M2 6 A, 115 V, single phase
400 W LXM05AD10M3X, 200...240 V, three phase
400 W LXM05BD10M3X, 200...240 V, three phase
400 W LXM05CD10M3X, 200...240 V, three phase
380 W LXM05AD10F1, 110...120 V, single phase
380 W LXM05BD10F1, 110...120 V, single phase
380 W LXM05CD10F1, 110...120 V, single phase
400 W LXM05AD17M2, 200...240 V, single phase
400 W LXM05BD17M2, 200...240 V, single phase
400 W LXM05CD17M2, 200...240 V, single phase
654 W LXM15LD13M3 6 A, 230 V, single phase
1000 W LXM15LD10N4, 400 V, three phase
1000 W LXM15LD10N4, 480 V, three phase
400 W LXM05AD17M3X, 200...240 V, three phase
400 W LXM05BD17M3X, 200...240 V, three phase
400 W LXM05CD17M3X, 200...240 V, three phase
440 W LXM15LU60N4, 230 V, three phase
564 W LXM15LD10N4, 230 V, three phase
586 W LXM15LU60N4, 400 V, three phase
586 W LXM15LU60N4, 480 V, three phase
654 W LXM15LD13M3, 230 V, three phase
654 W LXM15LD21M3, 230 V, three phase
Nominal torque 8.32 lbf.in (0.94 N.m) LXM32.U90M2 3 A, 230 V, single phase
11.06 lbf.in (1.25 N.m) LXM15LD13M3, 230 V, single phase
12.04 lbf.in (1.36 N.m) LXM32.D18M2 6 A, 115 V, single phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 230 V, three phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4 6 A, 400 V, three phase
6.2 lbf.in (0.7 N.m) LXM15LU60N4, 480 V, three phase
10.89 lbf.in (1.23 N.m) LXM15LD10N4, 400 V, three phase
10.89 lbf.in (1.23 N.m) LXM15LD10N4, 480 V, three phase
11.06 lbf.in (1.25 N.m) LXM15LD10N4, 230 V, three phase
11.06 lbf.in (1.25 N.m) LXM15LD13M3, 230 V, three phase
11.06 lbf.in (1.25 N.m) LXM15LD21M3, 230 V, three phase
Nominal speed 5000 rpm LXM32.U90M2 3 A, 230 V, single phase
3000 rpm LXM05AD10F1, 110...120 V, single phase
3000 rpm LXM05BD10F1, 110...120 V, single phase
3000 rpm LXM05CD10F1, 110...120 V, single phase
3000 rpm LXM05AD10M3X, 200...240 V, three phase
3000 rpm LXM05BD10M3X, 200...240 V, three phase
3000 rpm LXM05CD10M3X, 200...240 V, three phase
8000 rpm LXM15LD10N4 6 A, 400 V, three phase
3000 rpm LXM05AD17M2, 200...240 V, single phase
3000 rpm LXM05BD17M2, 200...240 V, single phase
3000 rpm LXM05CD17M2, 200...240 V, single phase
3000 rpm LXM05AD17M3X, 200...240 V, three phase
3000 rpm LXM05BD17M3X, 200...240 V, three phase
3000 rpm LXM05CD17M3X, 200...240 V, three phase
5000 rpm LXM15LD13M3, 230 V, single phase
2500 rpm LXM32.D18M2 6 A, 115 V, single phase
5000 rpm LXM15LD10N4, 230 V, three phase
5000 rpm LXM15LD13M3, 230 V, three phase
5000 rpm LXM15LD21M3, 230 V, three phase
6000 rpm LXM15LU60N4, 230 V, three phase
8000 rpm LXM15LD10N4, 480 V, three phase
8000 rpm LXM15LU60N4, 400 V, three phase
8000 rpm LXM15LU60N4, 480 V, three phase
Product compatibility LXM05AD10F1 110...120 V single phase
LXM05AD17M2 200...240 V single phase
LXM05BD10F1 110...120 V single phase
LXM05BD17M2 200...240 V single phase
LXM05CD10F1 110...120 V single phase
LXM05CD17M2 200...240 V single phase
LXM15LD13M3 230 V single phase
LXM32.U90M2 230 V single phase
LXM32.D18M2 115 V single phase
LXM15LU60N4 230 V three phase
LXM05AD10M3X 200...240 V three phase
LXM05BD10M3X 200...240 V three phase
LXM05CD10M3X 200...240 V three phase
LXM15LD13M3 230 V three phase
LXM15LU60N4 400 V three phase
LXM15LU60N4 480 V three phase
LXM15LD10N4 400 V three phase
LXM05AD17M3X 200...240 V three phase
LXM05BD17M3X 200...240 V three phase
LXM05CD17M3X 200...240 V three phase
LXM15LD10N4 230 V three phase
LXM15LD10N4 480 V three phase
LXM15LD21M3 230 V three phase
Shaft end Untapped
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake Without
Mounting Support International standard flange
Electrical Connection Straight connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 15
Lexium 32
Lexium 05
supply voltage max 480 V
Phase Three phase
Continuous stall current 3.2 A
maximum continuous power 1.06 W
Maximum current Irms 10 A LXM32.D18M2
9 A LXM32.U90M2
9.9 A LXM15LD13M3
9.9 A LXM15LD21M3
9.9 A LXM15LU60N4
9.9 A LXM15LD10N4
Maximum permanent current 10.1 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.4 in (11 mm)
Shaft length 0.9 in (23 mm)
Feedback type Single turn SinCos Hiperface
Motor flange size 2.8 in (70 mm)
Number of motor stacks 1
Torque constant 0.44 N.m/A 248 °F (120 °C)
Back emf constant 26 V/krpm 248 °F (120 °C)
Number of motor poles 3.0
Rotor inertia 0.25 kg.cm²
Stator resistance 3.3 Ohm 68 °F (20 °C)
Stator inductance 6.75 mH 68 °F (20 °C)
Stator electrical time constant 3.73 ms 68 °F (20 °C)
Maximum radial force Fr 360 N 6000 rpm
380 N 5000 rpm
410 N 4000 rpm
460 N 3000 rpm
520 N 2000 rpm
660 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
type of cooling Natural convection
Length 6.06 in (154 mm)
Centring collar diameter 2.4 in (60 mm)
centring collar depth 0.10 in (2.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.5 mm)
Circle diameter of the mounting holes 3.2 in (82 mm)
Product Weight 4.9 lb(US) (2.2 kg)
Sizing reference BSH0701T
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
Characteristic Value(s)
Range Compatibility Lexium 15
Lexium 32
Lexium 05
supply voltage max 480 V
Phase Three phase
Continuous stall current 3.2 A
maximum continuous power 1.06 W
Maximum current Irms 10 A LXM32.D18M2
9 A LXM32.U90M2
9.9 A LXM15LD13M3
9.9 A LXM15LD21M3
9.9 A LXM15LU60N4
9.9 A LXM15LD10N4
Maximum permanent current 10.1 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.4 in (11 mm)
Shaft length 0.9 in (23 mm)
Feedback type Single turn SinCos Hiperface
Motor flange size 2.8 in (70 mm)
Number of motor stacks 1
Torque constant 0.44 N.m/A 248 °F (120 °C)
Back emf constant 26 V/krpm 248 °F (120 °C)
Number of motor poles 3.0
Rotor inertia 0.25 kg.cm²
Stator resistance 3.3 Ohm 68 °F (20 °C)
Stator inductance 6.75 mH 68 °F (20 °C)
Stator electrical time constant 3.73 ms 68 °F (20 °C)
Maximum radial force Fr 360 N 6000 rpm
380 N 5000 rpm
410 N 4000 rpm
460 N 3000 rpm
520 N 2000 rpm
660 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
type of cooling Natural convection
Length 6.06 in (154 mm)
Centring collar diameter 2.4 in (60 mm)
centring collar depth 0.10 in (2.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.5 mm)
Circle diameter of the mounting holes 3.2 in (82 mm)
Product Weight 4.9 lb(US) (2.2 kg)
Sizing reference BSH0701T
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
