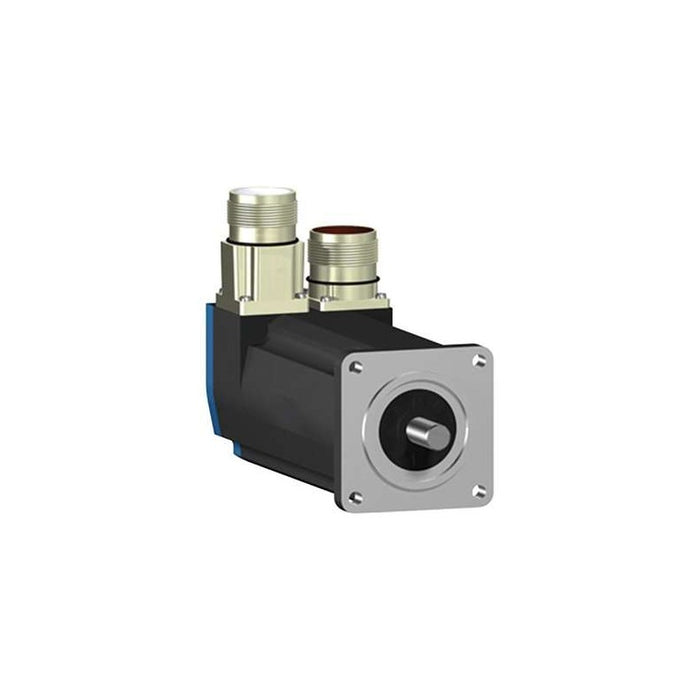

BSH0552P01A1A Schneider

BSH0552P01A1A Schneider

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 9000 rpm
Continuous stall torque 7.08 lbf.in (0.8 N.m) LXM32.U60N4 1.5 A, 400 V, three phase
7.08 lbf.in (0.8 N.m) LXM32.U60N4 1.5 A, 480 V, three phase
8.0 lbf.in (0.9 N.m) LXM05CU70M2, 200...240 V, single phase
8.0 lbf.in (0.9 N.m) LXM05AD10M2, 200...240 V, single phase
8.0 lbf.in (0.9 N.m) LXM05BD10M2, 200...240 V, single phase
8.0 lbf.in (0.9 N.m) LXM05CD10M2, 200...240 V, single phase
8.0 lbf.in (0.9 N.m) LXM05AD10M3X, 200...240 V, three phase
8.0 lbf.in (0.9 N.m) LXM05BD10M3X 1.5 A, 200...240 V, three phase
8.0 lbf.in (0.9 N.m) LXM05CD10M3X, 200...240 V, three phase
8.0 lbf.in (0.9 N.m) LXM15LD13M3, 230 V, single phase
8.0 lbf.in (0.9 N.m) LXM15LD13M3, 230 V, three phase
8.0 lbf.in (0.9 N.m) LXM15LU60N4, 230 V, three phase
8.0 lbf.in (0.9 N.m) LXM05AD14N4, 380...480 V, three phase
8.0 lbf.in (0.9 N.m) LXM05BD14N4, 380...480 V, three phase
8.0 lbf.in (0.9 N.m) LXM05CD14N4, 380...480 V, three phase
Peak stall torque 22.1 lbf.in (2.5 N.m) LXM32.U60N4 1.5 A, 400 V, three phase
22.1 lbf.in (2.5 N.m) LXM32.U60N4 1.5 A, 480 V, three phase
22.1 lbf.in (2.5 N.m) LXM15LD13M3, 230 V, single phase
19.21 lbf.in (2.17 N.m) LXM05CU70M2, 200...240 V, single phase
23.9 lbf.in (2.7 N.m) LXM05AD10M2, 200...240 V, single phase
23.9 lbf.in (2.7 N.m) LXM05BD10M2, 200...240 V, single phase
23.9 lbf.in (2.7 N.m) LXM05CD10M2, 200...240 V, single phase
22.1 lbf.in (2.5 N.m) LXM15LD13M3 1.5 A, 230 V, three phase
20.003 lbf.in (2.26 N.m) LXM15LU60N4, 230 V, three phase
23.9 lbf.in (2.7 N.m) LXM05AD10M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM05AD14N4, 380...480 V, three phase
23.9 lbf.in (2.7 N.m) LXM05BD10M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM05BD14N4, 380...480 V, three phase
23.9 lbf.in (2.7 N.m) LXM05CD10M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM05CD14N4, 380...480 V, three phase
Nominal output power 400 W LXM32.U60N4 1.5 A, 400 V, three phase
400 W LXM32.U60N4 1.5 A, 480 V, three phase
250 W LXM05AD10M2, 200...240 V, single phase
250 W LXM05BD10M2, 200...240 V, single phase
250 W LXM05CD10M2, 200...240 V, single phase
250 W LXM05CU70M2, 200...240 V, single phase
310 W LXM15LD13M3, 230 V, single phase
250 W LXM05AD10M3X 1.5 A, 200...240 V, three phase
250 W LXM05AD14N4, 380...480 V, three phase
250 W LXM05BD10M3X, 200...240 V, three phase
250 W LXM05BD14N4, 380...480 V, three phase
250 W LXM05CD10M3X, 200...240 V, three phase
250 W LXM05CD14N4, 380...480 V, three phase
310 W LXM15LD13M3, 230 V, three phase
310 W LXM15LU60N4, 230 V, three phase
Nominal torque 5.75 lbf.in (0.65 N.m) LXM32.U60N4 1.5 A, 400 V, three phase
5.75 lbf.in (0.65 N.m) LXM32.U60N4 1.5 A, 480 V, three phase
6.64 lbf.in (0.75 N.m) LXM15LD13M3, 230 V, single phase
19.21 lbf.in (2.17 N.m) LXM05CU70M2, 200...240 V, single phase
23.9 lbf.in (2.7 N.m) LXM05AD10M2, 200...240 V, single phase
23.9 lbf.in (2.7 N.m) LXM05BD10M2, 200...240 V, single phase
23.9 lbf.in (2.7 N.m) LXM05CD10M2, 200...240 V, single phase
6.64 lbf.in (0.75 N.m) LXM15LD13M3 1.5 A, 230 V, three phase
6.64 lbf.in (0.75 N.m) LXM15LU60N4, 230 V, three phase
23.9 lbf.in (2.7 N.m) LXM05AD10M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM05AD14N4, 380...480 V, three phase
23.9 lbf.in (2.7 N.m) LXM05BD10M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM05BD14N4, 380...480 V, three phase
23.9 lbf.in (2.7 N.m) LXM05CD10M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM05CD14N4, 380...480 V, three phase
Nominal speed 6000 rpm LXM32.U60N4 1.5 A, 400 V, three phase
6000 rpm LXM32.U60N4 1.5 A, 480 V, three phase
4000 rpm LXM15LD13M3, 230 V, single phase
4000 rpm LXM15LU60N4, 230 V, three phase
3000 rpm LXM05CU70M2, 200...240 V, single phase
3000 rpm LXM05AD10M2, 200...240 V, single phase
3000 rpm LXM05BD10M2, 200...240 V, single phase
3000 rpm LXM05CD10M2 1.5 A, 200...240 V, single phase
3000 rpm LXM05AD10M3X, 200...240 V, three phase
3000 rpm LXM05AD14N4, 380...480 V, three phase
3000 rpm LXM05BD10M3X, 200...240 V, three phase
3000 rpm LXM05BD14N4, 380...480 V, three phase
3000 rpm LXM05CD10M3X, 200...240 V, three phase
3000 rpm LXM05CD14N4, 380...480 V, three phase
4000 rpm LXM15LD13M3, 230 V, three phase
Product compatibility LXM05AD10M2 200...240 V single phase
LXM05BD10M2 200...240 V single phase
LXM05CD10M2 200...240 V single phase
LXM05CU70M2 200...240 V single phase
LXM15LD13M3 230 V single phase
LXM15LU60N4 230 V three phase
LXM32.U60N4 400 V three phase
LXM32.U60N4 480 V three phase
LXM05AD10M3X 200...240 V three phase
LXM05BD10M3X 200...240 V three phase
LXM05CD10M3X 200...240 V three phase
LXM15LD13M3 230 V three phase
LXM05AD14N4 380...480 V three phase
LXM05BD14N4 380...480 V three phase
LXM05CD14N4 380...480 V three phase
Shaft end Untapped
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake Without
Mounting Support International standard flange
Electrical Connection Straight connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 05
Lexium 32
Lexium 15
supply voltage max 480 V
Phase Three phase
Continuous stall current 1.2 A
maximum continuous power 0.67 W
Maximum current Irms 5.9 A LXM15LD13M3
5.9 A LXM15LU60N4
4.8 A LXM05CU70M2
4.8 A LXM05AD10M2
4.8 A LXM05AD10M3X
4.8 A LXM05AD14N4
4.8 A LXM05BD10M2
4.8 A LXM05BD10M3X
4.8 A LXM05BD14N4
4.8 A LXM05CD10M2
4.8 A LXM05CD10M3X
4.8 A LXM05CD14N4
4.8 A LXM32.U60N4
Maximum permanent current 4.8 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.4 in (9 mm)
Shaft length 0.8 in (20 mm)
Feedback type Single turn SinCos Hiperface
Motor flange size 2.2 in (55 mm)
Number of motor stacks 2
Torque constant 0.7 N.m/A 248 °F (120 °C)
Back emf constant 40 V/krpm 248 °F (120 °C)
Number of motor poles 3.0
Rotor inertia 0.096 kg.cm²
Stator resistance 17.4 Ohm 68 °F (20 °C)
Stator inductance 18.2 mH 68 °F (20 °C)
Stator electrical time constant 2.03 ms 68 °F (20 °C)
Maximum radial force Fr 190 N 7000 rpm
190 N 8000 rpm
200 N 6000 rpm
220 N 5000 rpm
230 N 4000 rpm
260 N 3000 rpm
290 N 2000 rpm
370 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
type of cooling Natural convection
Length 6.08 in (154.4 mm)
Centring collar diameter 1.6 in (40 mm)
centring collar depth 0.08 in (2 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.5 mm)
Circle diameter of the mounting holes 2.5 in (63 mm)
Product Weight 3.3 lb(US) (1.5 kg)
Sizing reference BSH0552P
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
