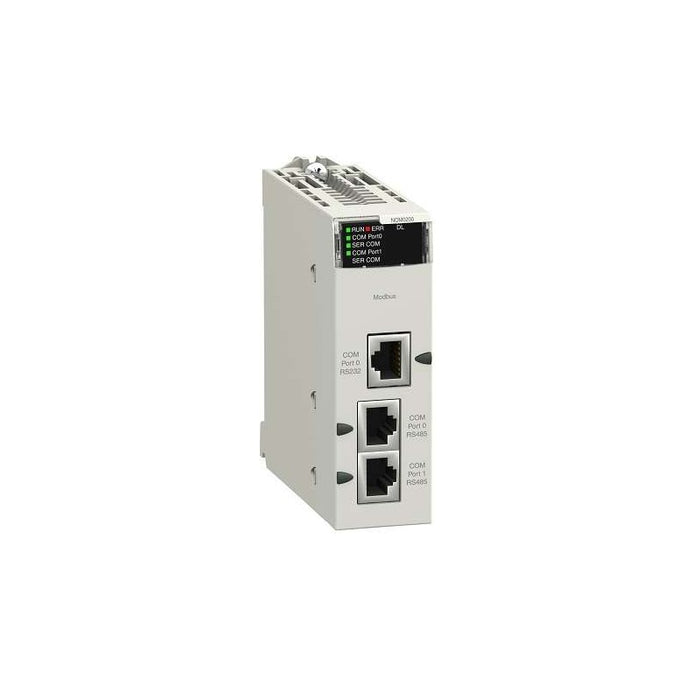

The BMXNOM0200 is a serial link communication module from the Modicon X80 range, designed for integration with Modicon M580 and M340 Programmable Automation Controllers. This standard-format module provides two configurable RS-485/232 serial ports operating in both Modbus and Character mode, enabling flexible serial communications in industrial automation applications. The module supports RS232 connections via RJ45 at speeds up to 115.2 kbit/s using 8-wire configuration, and RS485 connections via RJ45 at speeds up to 57.6 kbit/s using twisted pair cabling. It features internal power supply via rack connection with a current consumption of 80 mA at 24 V DC. The module includes comprehensive LED diagnostics indicating module fault, running status, and serial link activity for each port. Rated IP20 for protection, it operates reliably in ambient temperatures from 0 to 60°C with relative humidity up to 95% non-condensing, making it suitable for medium to large process applications in industrial environments.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Serial Link Communication Module
- Product Family / Series: Modicon X80
- Module Format: Standard
Product Specifications
- number_of_ports: 2 RS-485/232 ports
- communication_protocols: Modbus Serial (master or slave), Character mode
- rs232_data_rate: 115.2 kbit/s
- rs485_data_rate: 57.6 kbit/s
- rs232_connection: RJ45 8-wire
- rs485_connection: RJ45 1 twisted pair
- power_supply: Internal via rack
- voltage: 24 V DC
- current_consumption: 80 mA
- protective_treatment: TC
- protection_rating: IP20
Additional Details
- Certifications / Approvals: CE, cUL Listed, UL 508, CSA C22.2 File No. 142/213 Class I Division 2
- Led Indicators: 1 red LED (ERR - module fault), 1 green LED (RUN - module running), 2 green LEDs (SER COM 0 and SER COM 1 - serial link activity)
- Standards Compliance: EN/IEC 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
- Rohs Compliant: Yes
- Compatible Controllers: Modicon M580, Modicon M340 PLCs
Measurements
- Weight: 0.23 kg
- Operating Temperature: 0 to 60 °C
- Relative Humidity: 10 to 95% without condensation
