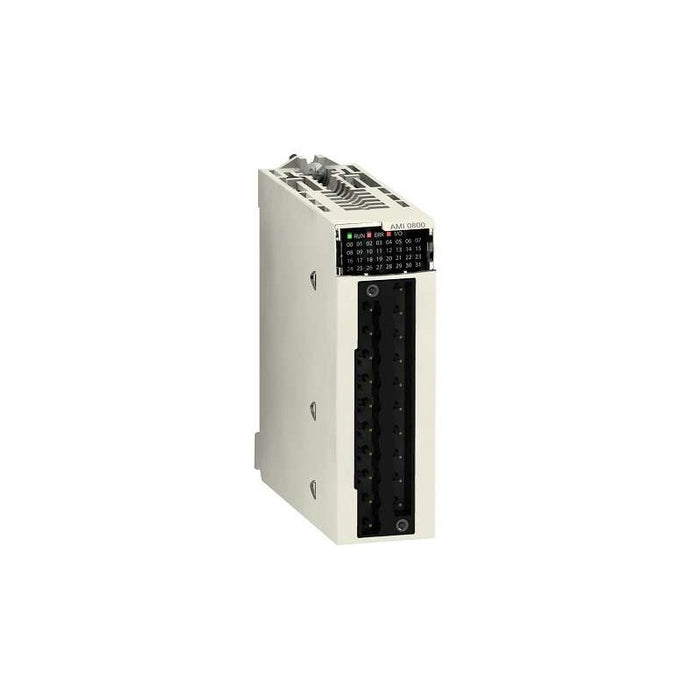

The BMXAMI0810 is a high-performance isolated analog input module designed for the Modicon X80 automation platform. This module features eight isolated, high-level analog input channels with 16-bit analog-to-digital conversion and 15-bit resolution plus sign. It supports multiple input signal types including voltage ranges of ±10V, ±5V, 0-10V, 0-5V, and 1-5V, as well as current ranges of ±20mA, 0-20mA, and 4-20mA. Each channel is electrically isolated to ensure measurement accuracy and system integrity. The module connects via a 28-way removable terminal block and occupies a single slot on compatible racks. With IP20 protection, digital filtering capabilities, and LED diagnostic indicators, it provides reliable analog signal acquisition for demanding industrial automation applications in process control, monitoring, and data acquisition systems.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Isolated Analog Input Module
- Product Family / Series: Modicon X80
- Part Number: BMXAMI0810
- Alternate Brand: Square D
Product Specifications
- analog_input_channels: 8
- analog_digital_conversion: 16 bits
- resolution: 15 bits + sign
- input_isolation: Isolated between channels
- voltage_input_ranges: ±10V, ±5V, 0-10V, 0-5V, 1-5V
- current_input_ranges: ±20mA, 0-20mA, 4-20mA
- input_impedance: 10 MOhm
- internal_conversion_resistor: 250 Ohm
- isolation_voltage_channels: 300 V DC
- isolation_voltage_ground: 1400 V DC
- isolation_voltage_bus: 1400 V DC
- measurement_accuracy_voltage_25C: 0.08% of full scale (±10V, 0-10V, 0-5V, ±5V)
- measurement_accuracy_current_25C: 0.15% of full scale (±20mA, 0-20mA, 4-20mA)
- permitted_overload_voltage: ±30V
- permitted_overload_current: ±30mA
- electrical_connection: 1 connector 28 ways
- supply_voltage: 3.3V DC / 24V DC (supplied via backplane)
- current_consumption_3.3V: 150 mA
- current_consumption_24V: 45 mA
Additional Details
- Certifications / Approvals: RoHS 2011/65/EU, WEEE 2012/19/EU, CE, UL61010-2-201, CSA C22.2 No.61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2, EAC, Merchant Navy, REACH (EC No. 1907/2006)
- Ip Protection Rating: IP20
- Protective Treatment: TC
- Mounting Type: Backplane/Rack mounting (DIN rail compatible)
- Compatible Platforms: Modicon M340 PLCs, Modicon M580 PLCs
- Rack Compatibility: BMXXBP0400/0400H/0600/0600H/0800/0800H/1200/1200H
- Read Cycle Time: 9 ms for all 8 channels
- Warranty Period: 18 months
- Replaces: 140ACI03000, 140ACI04000, 140AVI03000, TSXAEY800, TSXAEY810
- Upc: 035958640815
Measurements
- Weight: 0.165 kg
- Dimensions: 32 x 100 x 86 mm (W x H x D)
- Operating Temperature: 0 to +60 °C
- Storage Temperature: -40 to +85 °C
- Relative Humidity: 10 to 95% without condensation
