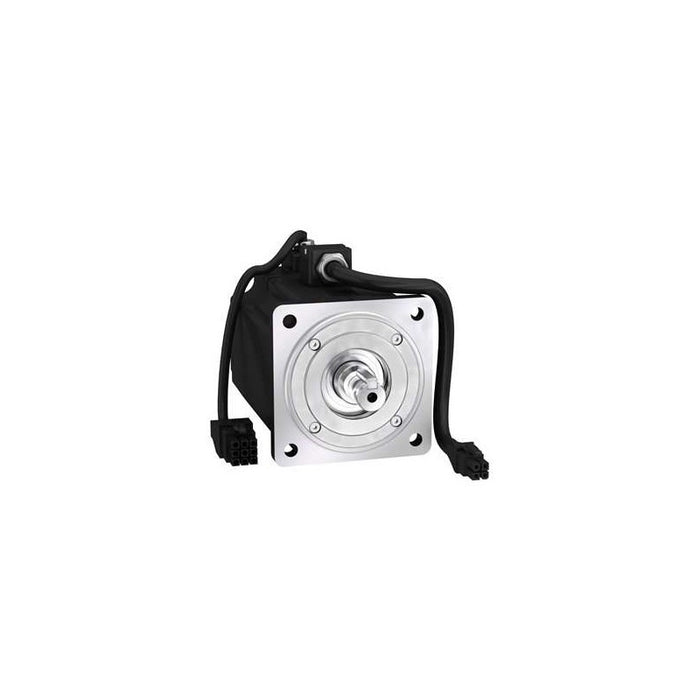

BCH2HF0733CF5C Schneider

BCH2HF0733CF5C Schneider

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 178mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 3.7kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Main

Characteristic Value(s)
Range Compatibility Lexium 28
Device short name BCH2
Product or Component Type Servo motor

Complementary

Characteristic Value(s)
Maximum mechanical speed 5000 rpm
[Us] rated supply voltage 220 V
110 V
Phase Single phase
Three phase
Continuous stall current 4.01 A
Continuous stall torque 21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, single phase
21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, three phase
21.15 lbf.in (2.39 N.m) LXM28 4.5 A, 220 V, single phase
21.15 lbf.in (2.39 N.m) LXM28 4.5 A, 220 V, three phase
21.15 lbf.in (2.39 N.m) LXM28 9 A, 110 V, single phase
Continuous power 750 W
Peak stall torque 63.37 lbf.in (7.16 N.m) LXM26D 4.5 A, 220 V, single phase
63.37 lbf.in (7.16 N.m) LXM26D 4.5 A, 220 V, three phase
63.37 lbf.in (7.16 N.m) LXM28... 4.5 A, 220 V, single phase
63.37 lbf.in (7.16 N.m) LXM28... 4.5 A, 220 V, three phase
63.37 lbf.in (7.16 N.m) LXM28... 9 A, 110 V, single phase
Nominal output power 750 W LXM26D 4.5 A, 220 V, single phase
750 W LXM26D 4.5 A, 220 V, three phase
750 W LXM28... 4.5 A, 220 V, single phase
750 W LXM28... 4.5 A, 220 V, three phase
750 W LXM28... 9 A, 110 V, single phase
Nominal torque 21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, single phase
21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, three phase
21.15 lbf.in (2.39 N.m) LXM28... 4.5 A, 220 V, single phase
21.15 lbf.in (2.39 N.m) LXM28... 4.5 A, 220 V, three phase
21.15 lbf.in (2.39 N.m) LXM28... 9 A, 110 V, single phase
Nominal speed 3000 rpm LXM26D 4.5 A, 220 V, single phase
3000 rpm LXM26D 4.5 A, 220 V, three phase
3000 rpm LXM28... 4.5 A, 220 V, single phase
3000 rpm LXM28... 4.5 A, 220 V, three phase
3000 rpm LXM28... 9 A, 110 V, single phase
Maximum current Irms 13.23 A LXM28... 0.75 kW, 220 V
13.23 A LXM28... 0.75 kW, 110 V
Maximum permanent current 4.29 A
Product compatibility LXM26D servo drive 0.75 kW, 220 V, single phase
LXM26D servo drive 0.75 kW, 220 V, three phase
LXM28... servo drive 0.75 kW, 220 V, single phase
LXM28... servo drive 0.75 kW, 220 V, three phase
LXM28... servo drive 0.75 kW, 110 V, single phase
Shaft end Keyed
Shaft diameter 0.7 in (19 mm)
Shaft length 1.4 in (35 mm)
key width 0.2 in (6 mm)
Feedback type 20 bits single turn absolute encoder
Holding brake With
Holding torque 22.1 lbf.in (2.5 N.m) built-in
Mounting Support Asian standard flange
Motor flange size 3.1 in (80 mm)
Electrical connection Free lead
Torque constant 0.6 N.m/A 68 °F (20 °C)
Back emf constant 36 V/krpm 68 °F (20 °C)
Number of motor poles 4.0
Rotor inertia 1.59 kg.cm²
Stator resistance 1.5 Ohm 68 °F (20 °C)
Stator inductance 6.1 mH 68 °F (20 °C)
Stator electrical time constant 4.07 ms 68 °F (20 °C)
Maximum radial force Fr 332 N 3000 rpm
Maximum axial force Fa 115 N
Brake pull-in power 10.2 W
type of cooling Natural convection
Length 7.008 in (178 mm)
Number of motor stacks 2
Centring collar diameter 2.8 in (70 mm)
centring collar depth 0.2 in (4 mm)
Number of mounting holes 4
Mounting holes diameter 0.3 in (6.6 mm)
Circle diameter of the mounting holes 3.5 in (90 mm)
Distance shaft shoulder-flange 0.2 in (4 mm)
Product Weight 8.2 lb(US) (3.7 kg)
Sizing reference BCH2
Network number of phases 1
Accuracy error [angular] 0.044 °
Temperature copper hot 275 °F (135 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
