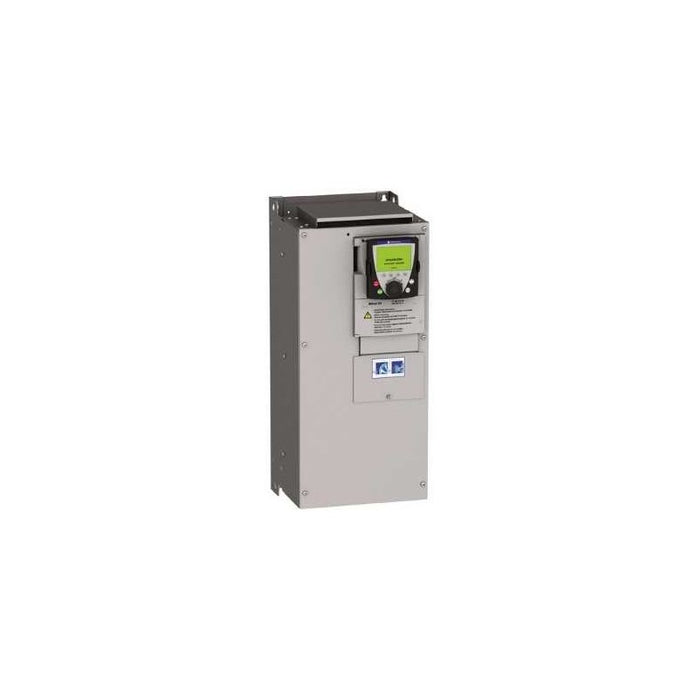

The Schneider Electric ATV61HD30N4 is a variable frequency drive from the Altivar 61 series, designed for controlling three-phase asynchronous and synchronous motors in industrial and commercial applications. This drive is optimized for variable torque applications including pumping, ventilation, and fluid management systems. It features a built-in DC choke, EMC filter (class C2/C3), and heatsink in a wall-mounted IP20/UL Type 1 enclosure. The drive supports multiple motor control modes including sensorless flux vector control and voltage/frequency ratio adjustment, delivering up to 120% nominal motor torque. It includes Modbus and CANopen communication protocols, a detachable graphical display with keypad, and comprehensive analog and discrete I/O for flexible integration into automation systems.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Frequency Drive
- Product Family / Series: Altivar 61
Product Specifications
- motor_power: 30 kW / 40 HP
- supply_voltage: 323-528 V AC (380/400/480/500 V AC nominal)
- phases: 3-phase
- rated_output_current_380V: 66 A at 12 kHz
- rated_output_current_460V: 52 A at 12 kHz
- line_current_480V: 56 A
- maximum_transient_current: 79.2 A for 60 seconds
- output_frequency_range: 0.1-599 Hz
- switching_frequency: 1-16 kHz (variable), 12 kHz nominal
- apparent_power_380V: 43.4 kVA
- maximum_prospective_line_Isc: 22 kA
- braking_torque_with_resistor: 125%
- braking_torque_without_resistor: 30%
- EMC_filter: Class C2/C3
- degree_of_protection: IP20 / UL Type 1
- analog_inputs: 2 (AI1, AI2 - voltage/current configurable)
- analog_outputs: 1 (AO1 - software configurable)
- discrete_inputs: 7 (LI1-LI6 plus additional)
- relay_outputs: 2 (R1, R2 - programmable)
- communication_protocols: Modbus, CANopen
- dielectric_strength: 3535 V DC
- sound_level: 64 dB
- vibration_resistance: 13-200 Hz up to 1 in
- shock_resistance: 15 gn for 11 milliseconds
Additional Details
- Certifications / Approvals: UL, CSA, DNV, C-Tick, NOM, GOST, IEC/EN 61800-2, IEC/EN 61800-5-1
- Mounting: Wall mounting
- Display: Detachable graphical display with keypad
- Operating Temperature: Up to 50°C without derating, up to 60°C with derating
- Operating Humidity: 5-95% relative humidity
- Altitude Derating: No derating up to 1000 m, 1% per 100 m above
- Storage Temperature: -25°C to 70°C
Measurements
- Weight: 37 kg
- Dimensions: 240 mm (W) x 550 mm (H) x 266 mm (D)
