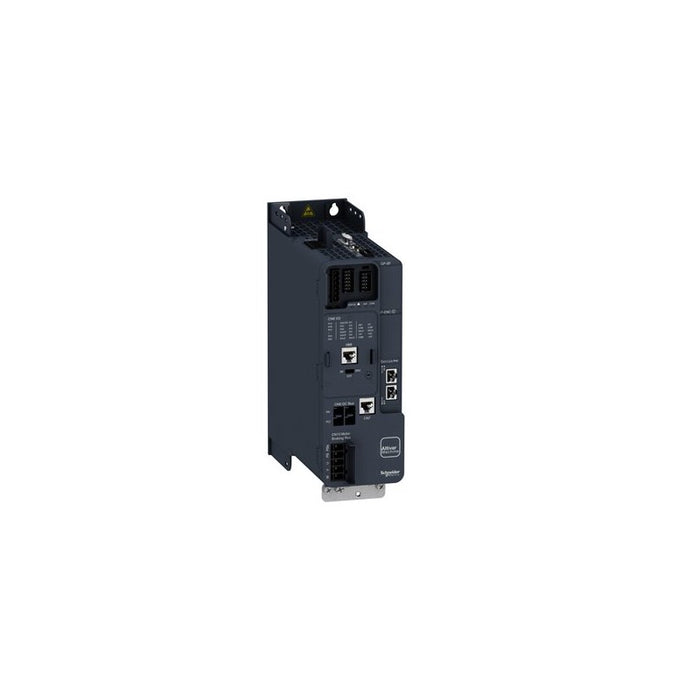

ATV340U07N4S Schneider Electric

Main

Characteristic Value(s)
Range of Product Altivar Machine ATV340
Product or Component Type Variable speed drive
Product Specific Application Machine
Mounting Mode Cabinet mount
Variant Standard version
Communication Port Protocol Sercos
Modbus serial
Phase 3 phase
Supply frequency 50...60 Hz +/- 5 %
[Us] rated supply voltage 380...480 V - 15...10 %
nominal output current 2.2 A
Motor power kW 1.1 kW normal duty
0.75 kW heavy duty
Maximum Horse Power Rating 1.5 hp normal duty
1 hp heavy duty
EMC filter Class C3 EMC filter integrated
IP degree of protection IP20

Complementary

Characteristic Value(s)
Discrete input number 5
Discrete input type PTI safe torque off 0…30 kHz, 24 V DC 30 V)
DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm
number of preset speeds 16 preset speeds
Discrete output number 2.0
Discrete output type Programmable output DQ1, DQ2 30 V DC 100 mA
Analogue input number 2
Analogue input type AI1 software-configurable current 0...20 mA 250 Ohm 12 bits
AI1 software-configurable temperature probe or water level sensor
AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
Analogue output number 1
Analogue output type Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Relay output number 2
Output voltage <= power supply voltage
Relay output type Relay outputs R1A
Relay outputs R1C 100000 cycles
Relay outputs R2A
Relay outputs R2C 100000 cycles
Maximum switching current Relay output R1C resistive, cos phi = 1 3 A 250 V AC
Relay output R1C resistive, cos phi = 1 3 A 30 V DC
Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Relay output R2C resistive, cos phi = 1 5 A 250 V AC
Relay output R2C resistive, cos phi = 1 5 A 30 V DC
Relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current Relay output R1B 5 mA 24 V DC
Relay output R2C 5 mA 24 V DC
Physical interface 2-wire RS 485
Connector Type 3 RJ45
Method of access Slave Modbus RTU
Transmission Rate 4.8 kbit/s
9.6 kbit/s
19.2 kbit/s
38.4 kbit/s
Transmission frame RTU
Number of addresses 1…247
Data format 8 bits, configurable odd, even or no parity
Type of polarization No impedance
4 quadrant operation possible True
Asynchronous motor control profile Constant torque standard
Variable torque standard
Optimized torque mode
Synchronous motor control profile Permanent magnet motor
Reluctance motor
Pollution degree 2 IEC 61800-5-1
Maximum output frequency 0.599 kHz
Acceleration and deceleration ramps S, U or customized
Linear adjustable separately from 0.01...9999 s
Motor slip compensation Can be suppressed
Not available in permanent magnet motor law
Automatic whatever the load
Adjustable
Switching frequency 2...16 kHz adjustable
14...16 kHz with derating factor
Nominal switching frequency 4 kHz
Braking to standstill By DC injection
Brake chopper integrated True
Line current 2.6 A 380 V normal duty)
2.1 A 480 V normal duty)
3.4 A 380 V heavy duty)
2.6 A 480 V heavy duty)
Line current 2.6 A 480 V without line choke heavy duty)
2.6 A 380 V with external line choke normal duty)
2.1 A 480 V with external line choke normal duty)
1.9 A 380 V with external line choke heavy duty)
1.6 A 480 V with external line choke heavy duty)
3.4 A 380 V without line choke heavy duty)
Maximum Input Current per Phase 3.4 A
Maximum output voltage 480 V
Apparent power 2.2 kVA 480 V normal duty)
2.2 kVA 480 V heavy duty)
Maximum transient current 3.1 A 60 s normal duty)
3.3 A 60 s heavy duty)
3.8 A 2 s normal duty)
4 A 2 s heavy duty)
Electrical connection Screw terminal 1.5...4 mm² line side
Screw terminal 4...6 mm² DC bus
Screw terminal 1.5...4 mm² motor
Screw terminal 0.2...2.5 mm² control
Prospective line Isc 5 kA
Base load current at high overload 2.2 A
Base load current at low overload 2.8 A
Power dissipation in W Natural convection 28 W 380 V 4 kHz heavy duty)
Forced convection 28 W 380 V 4 kHz heavy duty)
Natural convection 33 W 380 V 4 kHz normal duty)
Forced convection 33 W 380 V 4 kHz normal duty)
Electrical connection Line side screw terminal 1.5...4 mm² AWG 14...AWG 12
DC bus screw terminal 4...6 mm² AWG 12...AWG 10
Motor screw terminal 1.5...4 mm² AWG 14...AWG 12
Control screw terminal 0.2...2.5 mm² AWG 24...AWG 12
With safety function Safely Limited Speed (SLS) True
With safety function Safe brake management (SBC/SBT) True
With safety function Safe Operating Stop (SOS) False
With safety function Safe Position (SP) False
With safety function Safe programmable logic False
With safety function Safe Speed Monitor (SSM) False
With safety function Safe Stop 1 (SS1) True
With sft fct Safe Stop 2 (SS2) False
With safety function Safe torque off (STO) True
With safety function Safely Limited Position (SLP) False
With safety function Safe Direction (SDI) False
Protection type Thermal protection motor
Safe torque off motor
Motor phase loss motor
Thermal protection drive
Safe torque off drive
Overheating drive
Overcurrent drive
Output overcurrent between motor phase and earth drive
Output overcurrent between motor phases drive
Short-circuit between motor phase and earth drive
Short-circuit between motor phases drive
Motor phase loss drive
DC Bus overvoltage drive
Line supply overvoltage drive
Line supply undervoltage drive
Input supply loss drive
Exceeding limit speed drive
Break on the control circuit drive
Width 3.3 in (85.0 mm)
Height 10.6 in (270.0 mm)
Depth 9.2 in (232.5 mm)
Product Weight 3.7 lb(US) (1.7 kg)
Continuous output current 2.2 A 4 kHz heavy duty
2.8 A 4 kHz normal duty
