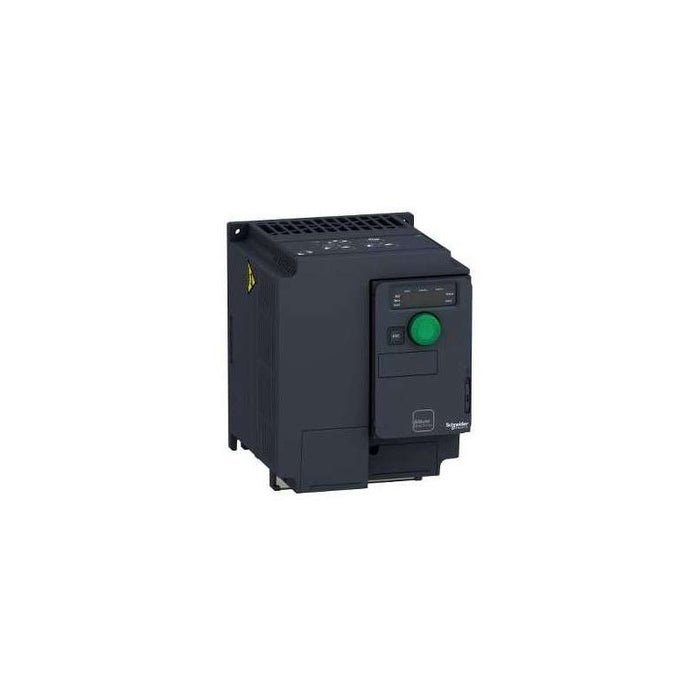

The Schneider Electric ATV320U40N4C is a compact variable frequency drive from the Altivar Machine ATV320 series, designed for original equipment manufacturers and industrial automation applications. This three-phase drive delivers 4 kW motor power for heavy-duty applications with a rated output current of 9.5 A. It operates on supply voltages from 380 to 500 V AC at 50/60 Hz and features an integrated Class C2 EMC filter for electromagnetic compatibility. The drive supports both Modbus serial and CANopen communication protocols as standard, with optional fieldbus cards available for EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet. Built-in safety functions include Safe Torque Off (STO) compliant with standards up to SIL3/PLe, along with advanced motor control capabilities including sensorless flux vector control, U/F control, and torque control modes. The drive is suitable for complex machine applications requiring precise speed and torque control.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Frequency Drive
- Product Family / Series: Altivar Machine ATV320
- Series: ATV320
- Product Type: Compact
- Application: Complex machines
- Mounting Type: Wall mount
- Version: Standard version
Product Specifications
- motor_power_heavy_duty: 4.0 kW
- motor_power_hp: 5 hp
- rated_supply_voltage: 380 to 500 V AC (-15% to +10%)
- nominal_output_current: 9.5 A
- output_current_range: 10.6/13.8 A
- input_phases: 3
- output_phases: 3
- supply_frequency: 50/60 Hz
- input_frequency_range: 47 to 63 Hz
- max_output_frequency: 599 Hz
- max_output_voltage: 500 V AC
- switching_frequency: 2 to 16 kHz
- emc_filter: Class C2 EMC filter integrated
- digital_inputs: 7 (24 V DC, sink/source configurable)
- digital_outputs: 3 (relay and logic outputs)
- analog_inputs: 3 (0-10 V or 0-20 mA/4-20 mA configurable)
- analog_outputs: 1 (0-20 mA, 10-bit resolution)
- communication_protocols: Modbus serial, CANopen standard
- optional_communication: EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet
- control_method: Sensorless flux vector control, U/F ratio control, torque control
- overload_capacity: 200% overtorque
- safety_functions: Safe Torque Off (STO) up to SIL3/PLe, SS1, SLS, SMS
Additional Details
- Certifications / Approvals: CE, ATEX, NOM, GOST, EAC, RCM, KC, RoHS compliant
- Enclosure Rating: IP20
- Operating Temperature Range: -10 to 50 °C (up to 60 °C with derating)
- Pollution Degree: 2 conforming to EN/IEC 61800-5-1
- Chemical Pollution Resistance: Class 3C3 conforming to EN/IEC 60721-3-3
- Safety Standards: ISO 13849 category 1, IEC/EN 61508 SIL1, IEC/EN 60204-1
- Emc Immunity: 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
- Integrated Features: Integrated braking chopper, ATV Logic (up to 50 function blocks)
- Relay Rating: 100,000 cycles, 5 mA at 24 V DC
Measurements
- Weight: 2.2 kg
- Dimensions: 140 mm (W) × 184 mm (H) × 158 mm (D)
- Dimensions Imperial: 5.51 in (W) × 7.24 in (H) × 6.22 in (D)
