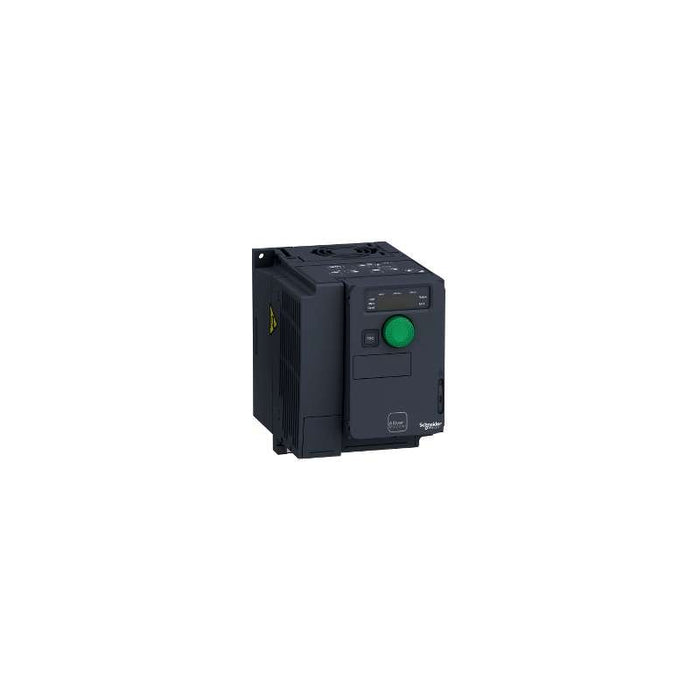

The Schneider Electric ATV320U07N4C is a compact variable frequency drive from the Altivar Machine ATV320 series, designed to control three-phase synchronous and asynchronous motors in industrial machine applications. This drive delivers precise motor control with 0.75 kW power output and operates on 380-500V three-phase supply. It features sensorless flux vector control, integrated safety functions including Safe Torque Off up to SIL3/PLe, and advanced control capabilities with ATV Logic supporting up to 50 function blocks. The drive incorporates a built-in Class C2 EMC filter, IP20 protection, and IEC 60721-3-3 class 3C3 coated PCBs for enhanced reliability in harsh environments up to 60°C ambient temperature. Suitable applications include packaging, material handling, textiles, hoisting, mechanical actuators, and material working machines.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Frequency Drive
- Product Family / Series: Altivar Machine ATV320
- Series: ATV320
- Model Number: ATV320U07N4C
Product Specifications
- rated_power_output: 0.75 kW / 1 HP
- supply_voltage_range: 380-500 V AC
- supply_voltage_nominal: 400/480 V AC
- number_of_phases: 3-phase
- rated_output_current_380v: 2.3 A
- line_current_380v_heavy_duty: 3.6 A
- line_current_500v_heavy_duty: 2.8 A
- output_frequency_range: 1-599 Hz
- switching_frequency_range: 2-16 kHz
- control_method: Sensorless flux vector control / V/F control
- overtorque_capability: 200% in open loop
- digital_inputs: 7 (DI1-DI6 plus STO)
- digital_outputs: 3
- analog_inputs: 3 (AI1: 0-10V DC, AI2: ±10V DC, AI3: 0-20mA)
- analog_outputs: 1 (0-10V DC or 0-20mA)
- relay_outputs: 2
- communication_protocols: Modbus, CANopen
- protection_rating: IP20
- emc_filter: Class C2 integrated
- power_dissipation: 32 W at 380V 4kHz
Additional Details
- Certifications / Approvals: CE, UL, CSA, NOM, EAC, RCM, ATEX compliant
- Safety Functions: STO (Safe Torque Off up to SIL3/PLe), SS1, SLS, SMS, GDL
- Standards Compliance: IEC/EN 61800-5-1, IEC/EN 61800-3, IEC 60721-3-3 class 3C3
- Pcb Coating: IEC 60721-3-3 class 3C3 conformal coating
- Ambient Temperature Range: Up to 60°C without derating
- Mounting Orientation: Vertical ±10 degrees
- Mounting Type: Wall/panel mount via 4 fixing holes
- Software Integration: SoMachine, SoMove, DTM/FDT, EcoStruxure Machine
- Rohs Compliant: Yes
- Svhc Status: Contains SVHC above threshold
Measurements
- Height: 143 mm
- Width: 105 mm
- Depth: 158 mm
