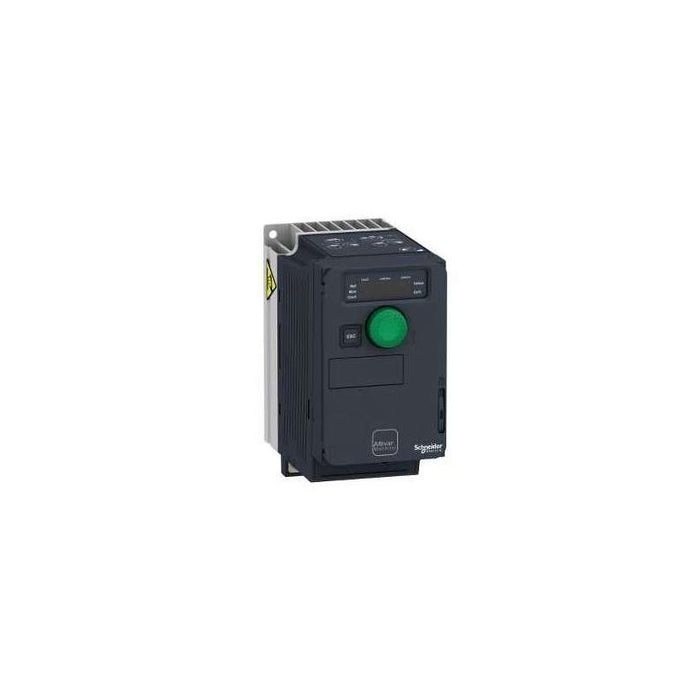

The Schneider Electric ATV320U07M2C is a compact variable frequency drive from the Altivar Machine ATV320 series, designed for single-phase motor control applications in industrial automation. This drive operates on 200-240 VAC single-phase input at 50/60 Hz and delivers 0.75 kW (1 HP) output for controlling asynchronous and synchronous motors. The compact form factor enables space-efficient installation in control cabinets and machine frames, with IP20 protection rating. Key features include sensorless flux vector control for precise speed regulation, integrated EMC filter, Safe Torque Off (STO) safety function up to SIL3/PLe, and multiple connectivity options including Modbus and CANopen protocols. The drive offers versatile I/O configuration with digital and analog inputs/outputs, configurable relay outputs, and customizable application functions via ATV Logic. It supports operation at ambient temperatures up to 60°C with derating and is certified to IEC/EN 61800 standards, making it suitable for packaging, material handling, textile, mechanical actuators, and hoisting applications.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Frequency Drive
- Product Family / Series: Altivar Machine ATV320
- Part Number: ATV320U07M2C
- Frame Size: 1C
- Form Factor: Compact
Product Specifications
- motor_power: 0.75 kW
- horsepower_rating: 1 HP
- input_voltage: 200-240 VAC
- input_phases: Single-phase
- frequency: 50/60 Hz
- output_current: 4.8 A
- output_frequency_range: 1-599 Hz
- control_method: Sensorless flux vector control
- overload_capability: 200% overtorque in open loop
- power_dissipation: 48.3 W
- ip_rating: IP20
- mounting_type: Chassis / Panel Mount
- ambient_temperature_without_derating: -10 to 50°C
- ambient_temperature_with_derating: Up to 60°C
- digital_inputs: 7 (24 VDC, sink/source)
- digital_outputs: 3 (24 VDC, sink/source)
- analog_inputs: 3 (2x -10 to +10 VDC, 1x 0-20 mA / 4-20 mA)
- analog_outputs: 1 (0-10 VDC / 0-20 mA)
- relay_outputs: 2 configurable
- communication_protocols: Modbus, CANopen, EtherNet/IP
- emc_filter: Integrated
Additional Details
- Certifications / Approvals: CE, UL, CSA, NOM, EAC, RCM, IEC/EN 61800-5-1, IEC/EN 61800-3, Machinery Directive 2006/42/EC
- Safety Functions: Safe Torque Off (STO) up to SIL3/PLe, Safe Stop 1 (SS1), Safely Limited Speed (SLS), Safe Maximum Speed (SMS), Guard Door Locking (GDL)
- Environmental Protection: IEC 60721-3-3 class 3C3 coated PCBs
- Atex Compliant: Yes
- Plcopen Compliant: Yes
- Configuration Software: SoMove, SoMachine
- Ean Code: 3606480966545
Measurements
- Weight: 1.1 kg
- Dimensions: 72 mm (W) x 143 mm (H) x 132 mm (D)
