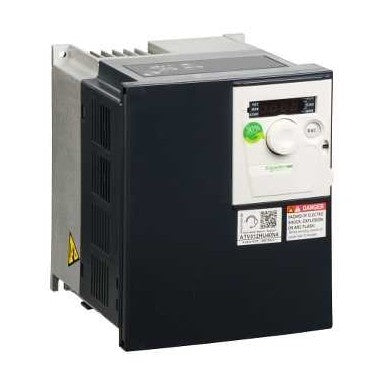

The ATV312HU40N4 is a compact variable frequency drive from Schneider Electric's Altivar 312 series, designed for precise speed and torque control of three-phase asynchronous motors in general-purpose industrial applications. This drive offers a 4 kW motor power rating with 5 HP output capability and operates on 380-500 V three-phase supply with integrated EMC filter. It features sensorless flux vector control for stable motor operation, a bright 4-digit LED display for parameter monitoring, and multiple analog and digital I/O options. The compact 142 mm width design with heat sink assembly enables flexible panel mounting in space-constrained environments. Suitable applications include conveyor systems, pumps, fans, material handling equipment, packaging machinery, textile machines, and compressors. The drive supports optional communication cards for Profibus, Modbus, and CANopen protocols, making it adaptable to various automation architectures.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Speed Drive (VFD)
- Product Family / Series: Altivar 312
- Component Name: ATV312
- Assembly Style: With heat sink
Product Specifications
- motor_power: 4 kW
- horsepower_rating: 5 HP
- apparent_power: 9.2 kVA
- standby_power: 150 W
- supply_voltage: 380-500 V AC (-15% to +10%)
- voltage_range: 323-550 V
- supply_frequency: 50/60 Hz (±5%)
- network_frequency: 47.5-63 Hz
- phase: 3-phase
- line_current_380V: 13.9 A (Isc = 5 kA)
- line_current_500V: 10.6 A
- output_frequency: 0-500 Hz
- speed_range: 1-50 Hz
- switching_frequency: 2-16 kHz
- control_type: Sensorless flux vector control
- analog_inputs: 3
- analog_outputs: 2
- emc_filter: Integrated
- ip_rating: IP20 / IP41 / IP31
Additional Details
- Lifecycle Status: Discontinued by manufacturer
- Suggested Replacement: ATV320U40N4C
- Communication Options: Optional cards for Profibus, Modbus, CANopen
- Display: 4-digit LED
- Software Compatibility: SoMove
- Mounting Width: 142 mm
Measurements
- Weight: 3.09 kg
- Dimensions: 184 x 142 x 184 mm
