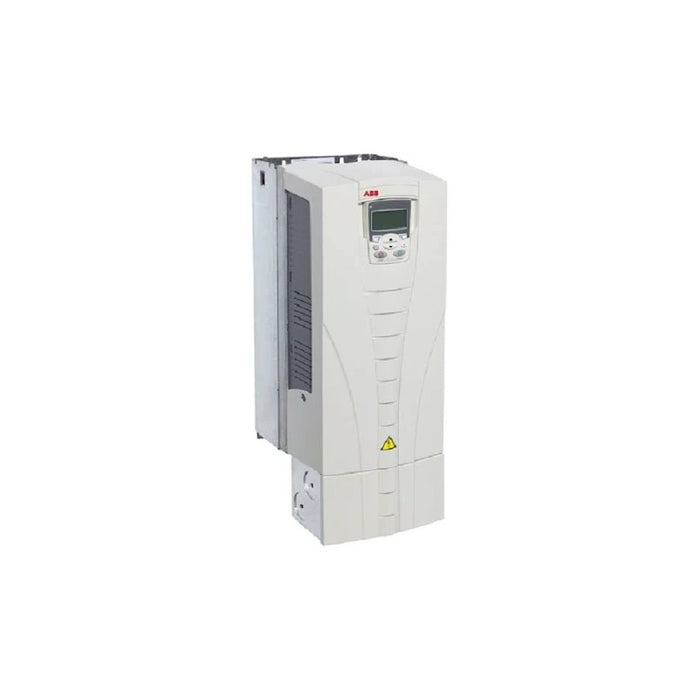

The ABB ACS550-U1-072A-4 is a wall-mounted, general-purpose AC variable frequency drive designed for three-phase motor control in industrial applications. It accepts 380-480 VAC three-phase input and delivers variable frequency, variable voltage output to control motor speed and torque. Rated for 50 HP at 72 Amps in normal duty (variable torque) and 40 HP at 59 Amps in heavy duty (constant torque) applications, this drive is ideal for pumps, fans, conveyors, and mixers. It features a patented swinging choke for superior harmonic reduction, integral EMC filter compliant with first environment standards, built-in Modbus RTU fieldbus interface, and advanced control panel for intuitive operation. The drive includes coated boards for harsh environments, sensorless vector control, and built-in energy monitoring counters that display savings in kilowatt hours, CO2 emissions, or local currency.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Variable Frequency Drive (VFD)
- Product Family / Series: ACS550
- Series: ACS550-U1
- Frame Size: R4
- Model Number: ACS550-U1-072A-4
Product Specifications
- input_voltage: 380-480 VAC ±10%
- input_phase: 3-phase
- output_voltage: 480 VAC
- output_phase: 3-phase
- frequency_range: 48-63 Hz
- normal_duty_current: 72 A
- heavy_duty_current: 59 A
- normal_duty_power: 50 HP
- heavy_duty_power: 40 HP
- enclosure_rating: NEMA 1 (IP21)
- control_method: Sensorless vector control
- harmonic_filter: Patented swinging choke
- emc_filter: Integral, first environment standard
- fieldbus: Built-in Modbus RTU
- operating_temperature: 5-40°C (41-104°F), derated 40-50°C (104-122°F)
- power_range: 0.75-355 kW (1-500 HP) series capability
Additional Details
- Certifications / Approvals: UL, cUL listed, CE approved
- Mounting: Wall-mounted
- Protection Features: Coated boards for harsh environments
- Display: Advanced control panel
- Upc: 662348048986
Measurements
- Weight: 24 kg
- Width: 257 mm (10.1 in)
- Depth: 284 mm (11.2 in)
- Height: 759 mm (29.9 in)
