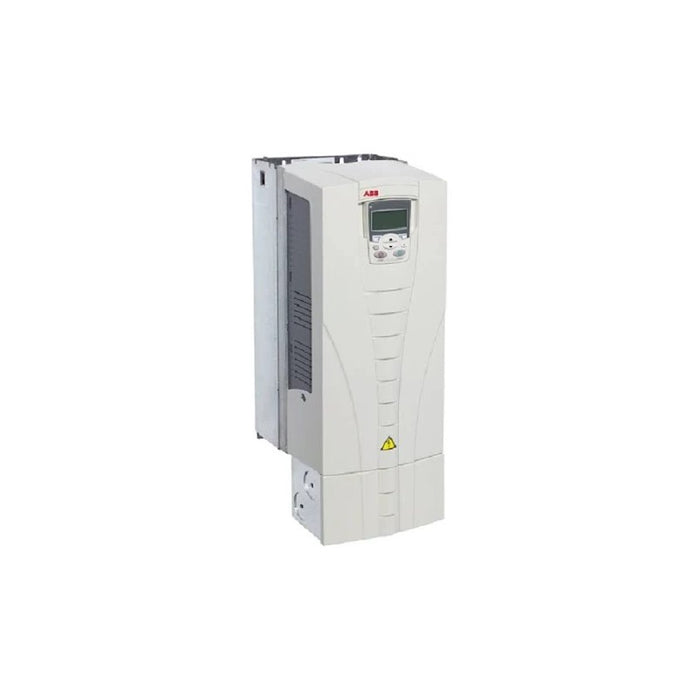

The ABB ACS550-U1-059A-4 is a general-purpose variable frequency drive designed for precise three-phase AC motor control in industrial applications. This wall-mounted drive operates on 380-480V AC three-phase input and delivers 40 HP normal duty output at 59 amps or 30 HP heavy duty output at 44 amps. It features advanced motor control modes including V/Hz, sensorless vector, and flux vector control for accurate speed and torque management of standard squirrel cage induction motors. The drive includes a patented swinging choke for superior harmonic reduction, built-in EMC filter, integrated Modbus fieldbus interface, and an advanced graphic backlit control panel. Housed in a NEMA 1 / IP21 enclosure, it is ideal for variable and constant torque applications such as pumps, fans, conveyors, mixers, and HVAC systems, offering energy savings and reduced mechanical stress through smooth starts and stops.
Item Details
- Brand Name: ABB
- Manufacturer: ABB Inc
- Item Type Name: Variable Frequency Drive (VFD)
- Product Family / Series: ACS550
- Model Number: ACS550-U1-059A-4
- Abb Type Code: 3AUA0000002202
Product Specifications
- input_voltage: 380-480V AC ±10%
- input_phase: 3-phase
- output_power_normal_duty: 40 HP (30 kW)
- output_power_heavy_duty: 30 HP
- output_current_normal_duty: 59 A
- output_current_heavy_duty: 44 A
- frequency_range: 48-63 Hz
- maximum_output_frequency: 500 Hz
- motor_control_modes: V/Hz, Sensorless Vector, Flux Vector
- enclosure_rating: NEMA 1 / IP21
- braking_type: DC Injection, Dynamic Braking Transistor (optional)
- built_in_features: EMC filter, Modbus fieldbus interface, Swinging choke
- control_panel: Advanced keypad with graphic backlit display
- overload_rating: 1.1x
- frame_size: UX1-4
Additional Details
- Mounting Type: Wall-mounted
- Application Type: General purpose - variable and constant torque
- Typical Applications: Pumps, fans, conveyors, mixers, HVAC systems
Measurements
- Weight: 24 kg
- Dimensions: 688 mm x 203 mm x 262 mm (H x W x D)
