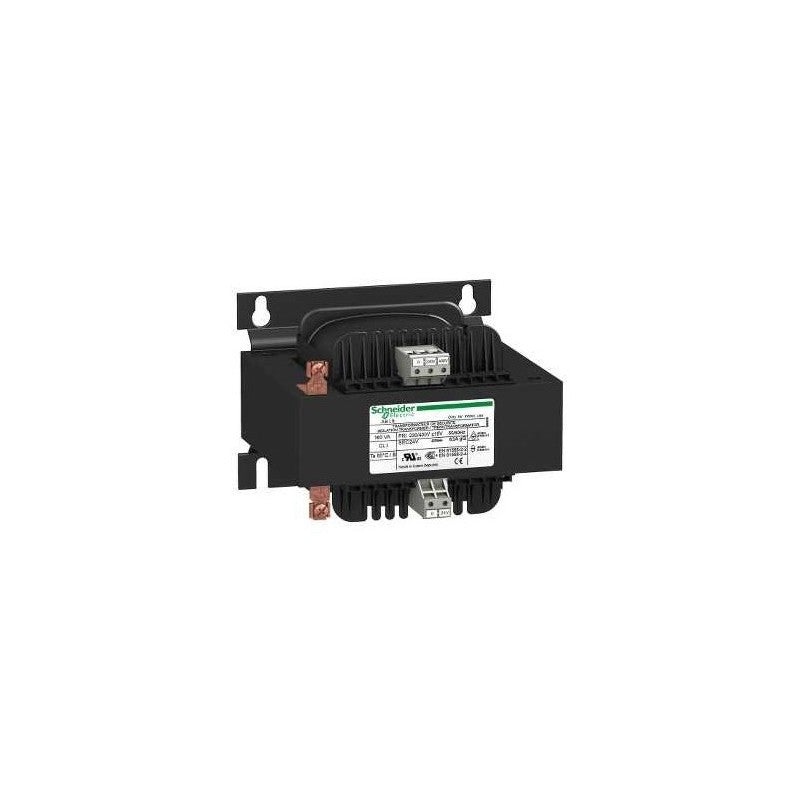

This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 24V AC and a rated power of 100VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 100 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 207...253 V 360...440 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 86 % |
| Power dissipation in W | 16.3 W |
| Output sustained overvoltage | 9 % (no load, hot state) |
| Maximum voltage drop at rated load | 0 % |
| No load losses | 7.1 W |
| Short-circuit voltage | 0,0786 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 4.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 4.8 mm on vertical panel, operating position: vertical By clips (with mounting plate) on 35 mm symmetrical DIN rail By 4 screws diameter: 4.8 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 84.0 mm |
| Height | 87.0 mm |
| Depth | 95.0 mm |
| Product weight | 2.05 kg |
