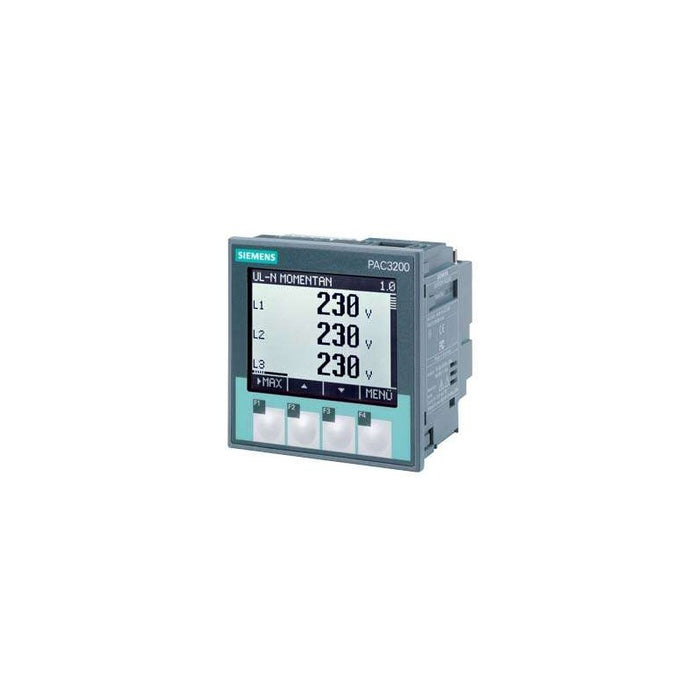

The Siemens SENTRON PAC3200 7KM2112-0BA00-3AA0 is a three-phase power monitoring device designed for comprehensive energy measurement and management in industrial and commercial electrical distribution systems. This panel-mount device features an LCD graphical display and measures apparent, active, and reactive energy with class 0.5 accuracy according to IEC61557-12 and IEC62053-22 standards. It supports voltage measurements up to 690 V line-to-line and 400 V line-to-neutral, with a rated current of 5 A for three-phase systems. The device includes Modbus TCP as standard and supports optional Modbus RTU, PROFINET, or PROFIBUS communication protocols. Equipped with a universal AC/DC power supply ranging from 95-240 V AC or 110-340 V DC, it provides real-time monitoring of power quality parameters including voltage, current, power factor, and energy consumption.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: Power Monitoring Device
- Product Family / Series: SENTRON PAC3200
- Model: 7KM PAC3200
Product Specifications
- voltage_measurement_L-L: 690 V
- voltage_measurement_L-N: 400 V
- voltage_measurement_range_L-N: 40-480 V
- voltage_measurement_range_L-L: 70-831 V
- rated_current: 5 A
- number_of_phases: 3-phase
- line_frequency_range: 45-65 Hz
- voltage_measurement_method: RMS
- current_measurement_method: TRMS
- accuracy_class_active_energy: 0.5 according to IEC62053-22
- accuracy_class_reactive_energy: Class 2 according to IEC61557-12
- voltage_measurement_accuracy: ±0.3%
- current_measurement_accuracy: ±0.2%
- power_measurement_accuracy: ±0.5%
- power_factor_accuracy: ±0.5%
- communication_protocol_standard: Modbus TCP
- communication_protocol_optional: Modbus RTU / PROFINET / PROFIBUS
- ethernet_transfer_rate: 10 Mbit/s
- supply_voltage_AC: 95-240 V AC
- supply_voltage_DC: 110-340 V DC
- supply_voltage_tolerance: ±10%
- supply_voltage_category: CAT III
- power_consumption_typical: < 8 V·A without expansion module
- display_type: LCD graphical monochrome
- display_resolution: 128 x 96 pixels
- number_of_keys: 4
- mounting_type: Panel mount
- panel_cutout: 96 x 96 mm
- interface_refresh_time: 0.33-1 s
- MTBF: 185.8 years
Additional Details
- Certifications / Approvals: IEC61557-12, IEC62053-22, IEC62053-23
- Supported Languages: German, English, French, Spanish, Italian, Portuguese, Turkish, Chinese
- Measuring Category: CAT III
- Display Background Color: White
Measurements
- Dimensions: 96.1 x 96.1 x 56 mm
