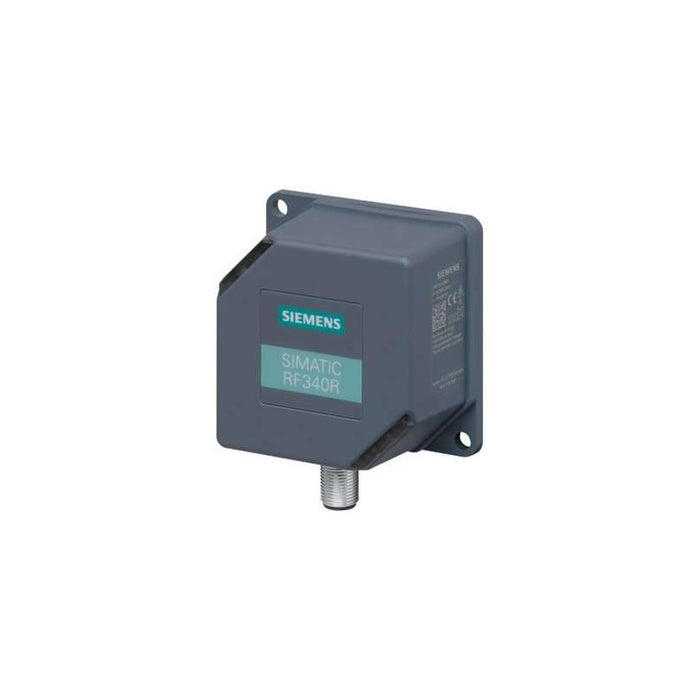

The Siemens RF340R (6GT2801-2BA10) is a high-frequency RFID reader designed for contact-free identification in industrial automation applications. Part of the SIMATIC RF300 family, this second-generation reader operates at 13.56 MHz and supports RF300, ISO 15693, ISO 18000-3, and ISO 14443 protocols. It features an integrated antenna with a maximum read range of 140 mm and connects via RS422 serial interface using the 3964R protocol. The compact, ruggedized device is housed in an IP67-rated enclosure measuring 75 x 75 x 41 mm, making it suitable for deployment in harsh industrial environments with operating temperatures from -25°C to +70°C. The reader includes a 5-color LED display for status indication and achieves serial transfer rates up to 115.2 kbit/s, making it ideal for closed production cycles requiring very short cycle times.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: RFID Reader
- Product Family / Series: SIMATIC RF300
- Model: RF340R
- Generation: GEN2
- Product Type: Reader
Product Specifications
- operating_frequency: 13.56 MHz
- read_range_maximum: 140 mm
- supported_protocols: RF300 specific, ISO 15693, ISO 18000-3, ISO 14443, MOBY E transponder
- interface: RS422 (3964R protocol)
- serial_transfer_rate_maximum: 115.2 kbit/s
- rf_transfer_rate_maximum: 106 kbit/s
- supply_voltage: 24 V DC (20.4-28.8 V DC)
- current_consumption: 0.06 A at 24 V DC
- connector: M12 8-pin
- display: 5-color LED
- antenna: Integrated
- multitag_capable: No
Additional Details
- Ip Rating: IP67
- Operating Temperature Range: -25°C to +70°C
- Housing Material: Plastic
- Upc: 804766348686
Measurements
- Weight: 0.30 lbs (approximately 136 g)
- Dimensions: 75 x 75 x 41 mm
