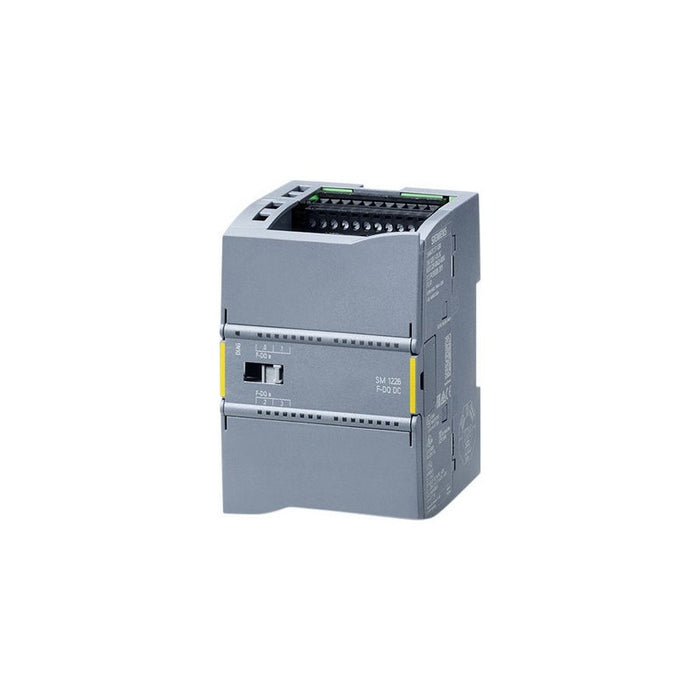

The Siemens 6ES7226-6DA32-0XB0 is a SIMATIC S7-1200 fail-safe digital output signal module (SM 1226 F-DQ) designed for safety-critical automation applications. It provides 4 fail-safe digital outputs rated at 24 V DC with 2A current per output. The module supports PROFIsafe communication protocol and complies with the highest safety standards, achieving Performance Level E according to ISO 13849-1 and Safety Integrity Level 3 (SIL3) according to IEC 61508. With a compact width of 70 mm, it integrates seamlessly into S7-1200 controller systems. The module features transistor-type outputs with screw or spring clamp electrical connections, making it suitable for demanding industrial environments requiring certified functional safety.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Digital Fail-Safe Output Module
- Product Family / Series: SIMATIC S7-1200
- Product Type Designation: SM 1226 F-DQ 4x 24 VDC
- Communication Protocol: PROFIsafe
Product Specifications
- number_of_outputs: 4
- output_voltage: 24 V DC
- output_current_per_channel: 2 A
- output_type: Transistor
- supply_voltage_rated: 24 V DC
- supply_voltage_range_lower_limit: 20.4 V DC
- electrical_connection_type: Screw/Spring clamp connection
- performance_level_iso_13849_1: PL E
- sil_level_iec_61508: SIL3
- atex_category: Category 3G
Additional Details
- Country of Origin*: China
- Certifications / Approvals: ISO 13849-1 PL E, IEC 61508 SIL3, RoHS Compliant, ATEX Cat 3G
- Ean: 4025515082873
- Hs Code: 85389091
*Country of origin may vary.
Measurements
- Weight: 270 g
- Width: 70 mm
- Height: 100 mm
- Depth: 75 mm
