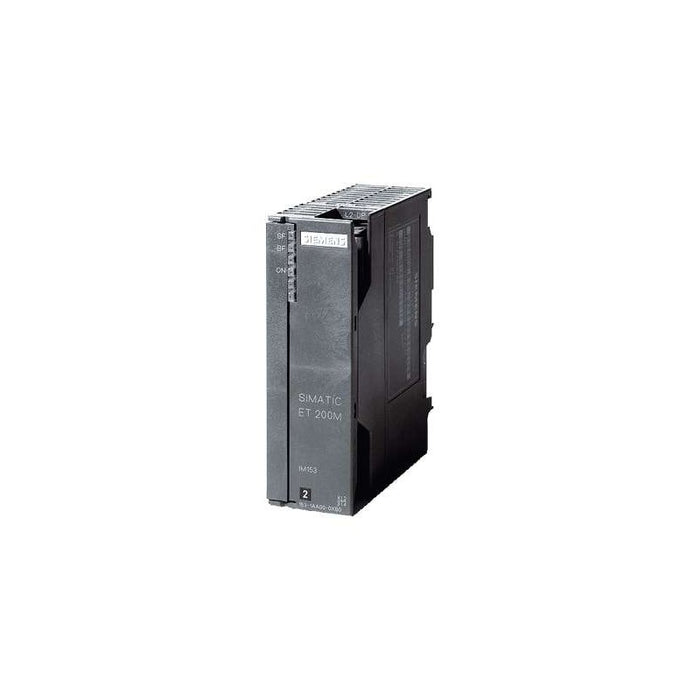

The Siemens IM 153-1 interface module is a PROFIBUS DP slave interface designed for use with the ET 200M distributed I/O system. It enables seamless integration of up to 8 S7-300 modules into a PROFIBUS network, providing decentralized automation control. The module supports RS 485 transmission with automatic baud rate detection up to 12 Mbit/s and features SYNC and FREEZE capabilities for synchronized operation. It supports direct data exchange (slave-to-slave communication) and offers enhanced functionality including clock synchronization, identification data, and time stamping. The IM 153-1 is configured using STEP 7 software or via GSD files and mounts on standard DIN rails. This module has been discontinued by the manufacturer as of October 2024.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Interface Module
- Product Family / Series: SIMATIC DP / ET 200M
- Model: IM 153-1
- Application: For ET 200M distributed I/O system
Product Specifications
- supply_voltage: 24 V DC
- rated_voltage_dc: 5 V DC
- output_current_backplane_bus: 1 A
- power_loss_typical: 3 W
- addressing_volume_inputs: 128 byte
- addressing_volume_outputs: 128 byte
- max_modules_per_dp_slave_interface: 8
- profibus_node_addresses: 1 to 125
- transmission_rate_max: 12 Mbit/s
- transmission_procedure: RS 485
- profibus_dp_output_current_max: 90 mA
- interface_connector: 9-pin sub D socket
- automatic_transmission_speed_detection: Yes
- sync_capability: Yes
- freeze_capability: Yes
- direct_data_exchange: Yes (sender)
- isolation_voltage: 500 V
- ip_protection_rating: IP20
- ambient_temperature_operation_min: 0 °C
- ambient_temperature_operation_max_horizontal: 60 °C
- ambient_temperature_operation_max_vertical: 40 °C
- installation_altitude_max: 3000 m
- configuration_software: STEP 7 / GSD file
- bus_protocol: PROFIBUS DP to EN 50170
Additional Details
- Country of Origin*: DE
- Lifecycle Status: Discontinued by manufacturer (October 1, 2024)
- Rohs Compliance: Yes
- Atex Rating: Category 3G (gas)
- Successor For: 6ES7153-1AA00-0XB0 and 6ES7153-1AA01-0XB0
*Country of origin may vary.
Measurements
- Weight: 360 g
- Width: 40 mm
- Height: 125 mm
- Depth: 117 mm
