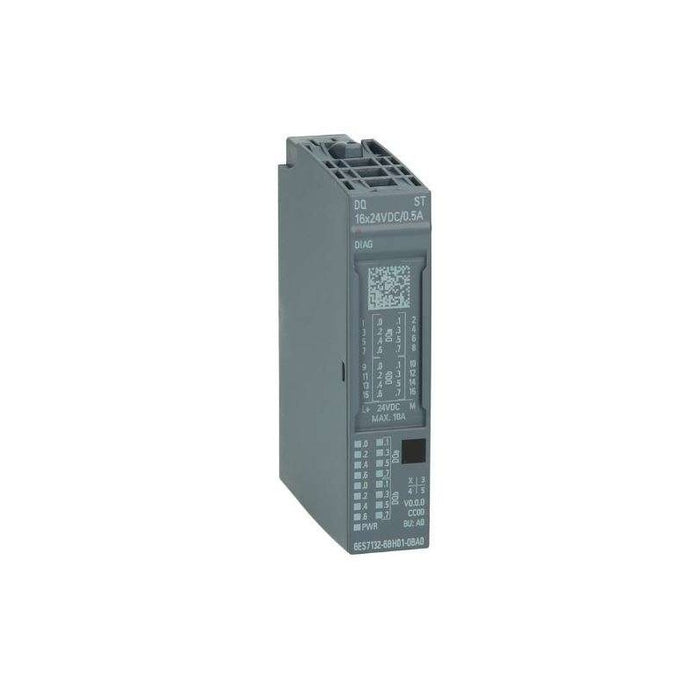

The Siemens 6ES7132-6BH01-0BA0 is a SIMATIC ET 200SP digital output module designed for distributed I/O applications in industrial automation. It provides 16 digital output channels with 24 V DC source-type (PNP, P-switching) outputs, each capable of supplying up to 0.5 A per channel with a total module current capacity of 8 A. The module fits Base Unit type A0 with color code CC00 and includes comprehensive diagnostics for short-circuit detection to L+ and ground, wire-break monitoring, and supply voltage supervision. Diagnostic information is displayed via onboard LEDs. The module supports standard substitute value output functionality and is configurable with STEP 7 TIA Portal V14 or later and STEP 7 V5.5 SP3 or later. Its slim 15 mm width enables high-density installation in control cabinets. The module is suitable for reliable control of actuators in manufacturing, process control, and machine automation applications.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Digital Output Module
- Product Family / Series: SIMATIC ET 200SP
- Product Type Designation: DQ 16x24VDC/0.5 ST
- Base Unit Compatibility: BU type A0
- Color Code: CC00
- Hw Functional Status: from FS21
- Firmware Version: V0.0
Product Specifications
- number_of_channels: 16
- output_voltage: 24 V DC
- output_current_per_channel: 0.5 A
- total_module_current: 8 A
- output_type: Source (PNP, P-switching)
- input_current_max_no_load: 60 mA
- output_delay_0_to_1: 50 µs typical
- output_delay_1_to_0: 100 µs typical
- residual_current_signal_0: 0.1 mA max
- short_circuit_protection_threshold: 1 A approx
- diagnostics: Short-circuit to L+, short-circuit to ground, wire break, supply voltage
- i_and_m_data_support: Yes, I&M0 to I&M3
- isochronous_mode: No
- firmware_update_possible: No
Additional Details
- Step 7 Tia Portal Compatibility: V14 with HSP0222 / integrated as of V15
- Step 7 Compatibility: V5.5 SP3 with HSP0230 V7.0 / integrated as of V5.6 SP1
- Ean Code: 4047623408574
Measurements
- Weight: 30 g
- Dimensions: 15 mm x 73 mm x 58 mm (W x H x D)
